Pinnacle Technology Aclas PP8X Driver Installation Instruction

Hide thumbs

Advertisement

Quick Links

Download this manual
PP8X Printer
Driver Installation
Instruction
Pinnacle Technology Corp.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aclas PP8X and is the answer not in the manual?

Questions and answers

Related Manuals for Pinnacle Technology Aclas PP8X

Summary of Contents for Pinnacle Technology Aclas PP8X

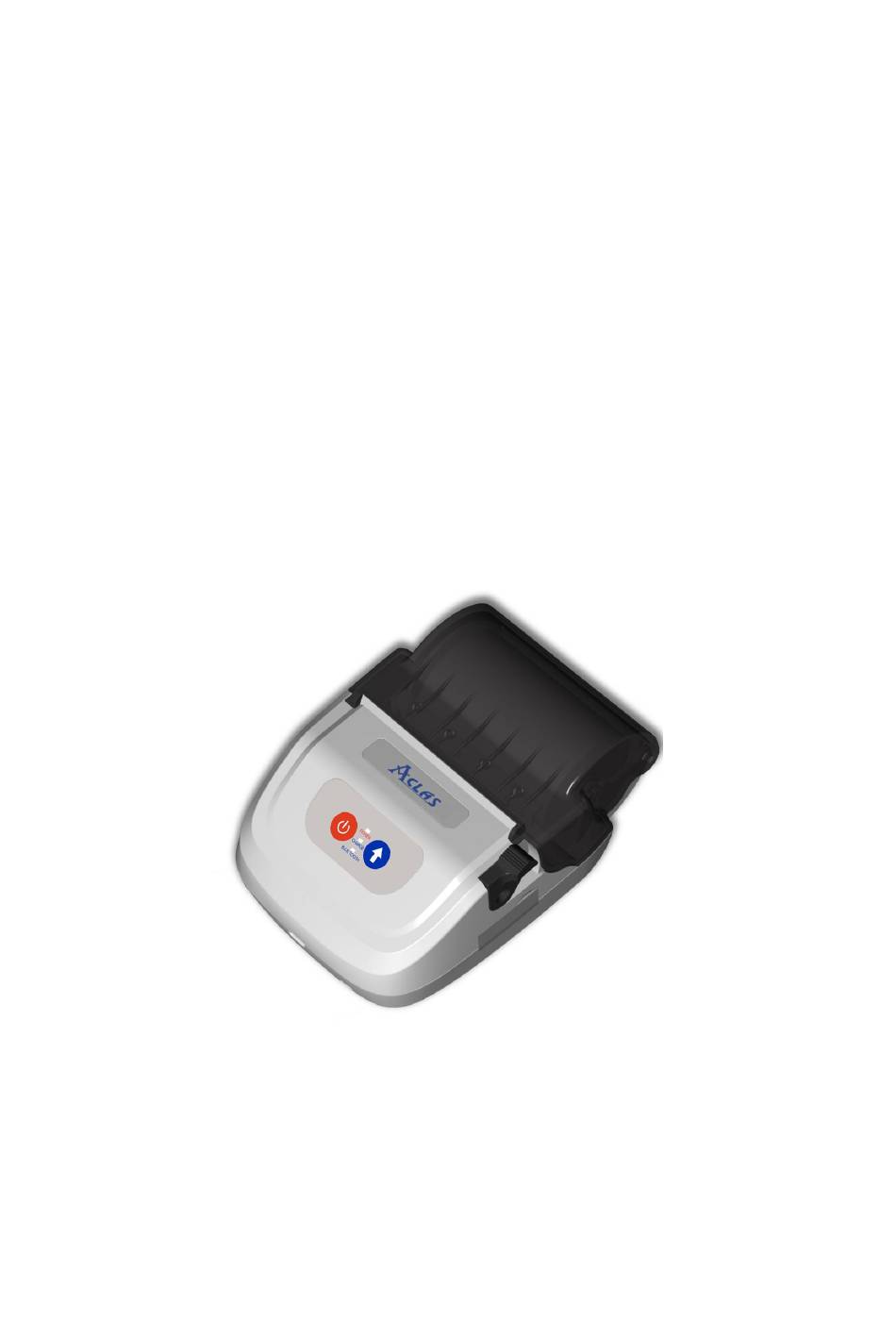

  • Page 1 PP8X Printer Driver Installation Instruction Pinnacle Technology Corp.

  • Page 2: Table Of Contents

    CONTENTS 1 BT Device Installation ................1 2 Printer Driver Installation ................ 6 3 How to Know the Connecting Port ............10 4 How to Configure Port ................12 5 Parameter Setting ................... 17 6 Download Logo ..................18...

  • Page 3: Bt Device Installation

    1 BT Device Installation This method is suitable for windows XP/VISTA OS. Notes: If there is a need to connect the PP8X printer to the PC, users may buy an Aclas BT dongle as the following picture shows. The advantage of the Aclas BT dongle is: it could quickly find the surrounding BT devices that will be matched with rather than costing a long time to search the device.
  • Page 4 Choose „Control Panel‟ in the start menu. Double click Bluetooth icon.
  • Page 5 Then press „Switch key‟ and „Paper feed key‟ at the same time to make the blue tooth device in searching mode while the blue tooth light (green) on the printer is glittering quickly. Double click the blue tooth icon , and then you‟ll see the following interface: Select this item Click this button to...
  • Page 6 Select this item Click „Next‟ Choose the printer that you want to add. Click „Next‟...
  • Page 7 Input default passkey „0000‟. Choose this item Click „Next‟ Here shows connecting port. Click „Finish‟...

  • Page 8: Printer Driver Installation

    2 Printer Driver Installation Connect the PP8X to PC, and run the attached CD-disk. Please double click the file „Aclas printer.exe‟ to install the printer driver. Click „Next‟ Click „Next‟...
  • Page 9 Click „Browse‟ to select the destination location. Click „Next‟ Here shows destination location. Click „Install‟...
  • Page 10 Click „Next‟ Click ‘Install’...
  • Page 11 Click „Finish‟ Finally, click „Finish‟ to finish printer driver installation.

  • Page 12: How To Know The Connecting Port

    3 How to Know the Connecting Port After installing the driver, you can follow the steps below to know which port is connected. Double click the icon Choose this item. Here shows device you have installed...
  • Page 13 Choose the „COM Ports‟ mode. Here shows the connecting port.

  • Page 14: How To Configure Port

    4 How to Configure Port It is necessary to configure the port. Enter „properties‟ interface first to configure port.  If your PC is installed with Windows XP system, please follow the below steps to enter „properties‟ interface „Printers Click Faxes‟...
  • Page 15 Right click the printer icon, and choose the item „Properties‟.  If your PC is installed with Vista system, please follow the below steps to enter „properties‟ interface. „Printers‟ Click after choosing „Settings‟ in start menu.
  • Page 16 Right click the printer icon, and then choose the item „Properties‟. Note: If you are a common user, please choose ‘properties’ through the item ‘run as administrator’ as the window below: Click this item. Choose the item „Properties‟.
  • Page 17 After entering „properties‟ interface, you can configure port. The port configuration steps of PC with Windows XP system and PC with Vista system are the same. Take the port configuration steps of PC with Windows XP system for example: 1.Choose 2.Choose the port (please item „Ports‟.
  • Page 18 Choose this item. Click it to print the test page and then click „OK‟.

  • Page 19: Parameter Setting

    5 Parameter Setting In the disk, you can find the software „PP8_Enduser.exe‟ in the file „PC-SW‟, double click to open it. Here, you can use the software to set printer parameter. Note: please use the connection cable (9D4P) to download parameter via RS232 port.

  • Page 20: Download Logo

    6 Download Logo In the disk, you can find the software “PrintLogo.exe” in the file “Logo Download”, double click to open it. Here, you can use this software to download logo. Notes: Logo Index: this is to set the place of logo storing in the printer. There are 10 places for users to choose.
  • Page 21 1. Choose the path of logo file. 2.Choose the logo and click the button “Open”. 1. Click this button to download logo. 2.Click the button “OK”. Revision：02...
