Page 1: User Manual
KP7X PRINTER USER MANUAL PINNACLE TECHNOLOGY CORP. Tel: +86-592-5710087 Fax: +86-592-5710029 Http:// www.aclas.tw Email: os@aclas.com... -
Page 2: Safety Precautions
Safety Precautions Before using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING （1） Connect the printer with a reliable grounded power receptacle. Do not plug with large electronic machines in one multi-outlet, which can provoke power fluctuation or over-heating, even a fire. -
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............................. 1 Application Range ..........................1 Unique Functions ..........................1 Advanced Functions and Features ..................... 1 Specifications ............................. 2 Appearance ............................3 Accessories ............................4 INSTALLATION ............................... 5 Suspender Installation ........................5 Communication Board Replacement ....................6 Paper Installation ..........................6 SETTING THE PRINTER .......................... -
Page 4: Introduction
※ Oblique photoelectric detector (worldwide original patent). It can detect paper precisely, whatever the paper end is stick to the paper roll, or the KP7X is placed in different places (on the table or mounted on the wall). -
Page 5: Specifications
1.4 Specifications Optional type KP7M1HX KP7M1MX Speed 250mm/s 150mm/s Power Supply DC24V /2A Print Method thermal print Resolution 203dpi Paper type Thermal paper Paper Max. Paper width 79.5± 0.5mm Φ 80mm Max. Paper roll diameter Paper installation type Easy paper loading ANK character set, Chinese GB2312, Character Character set... -
Page 6: Appearance

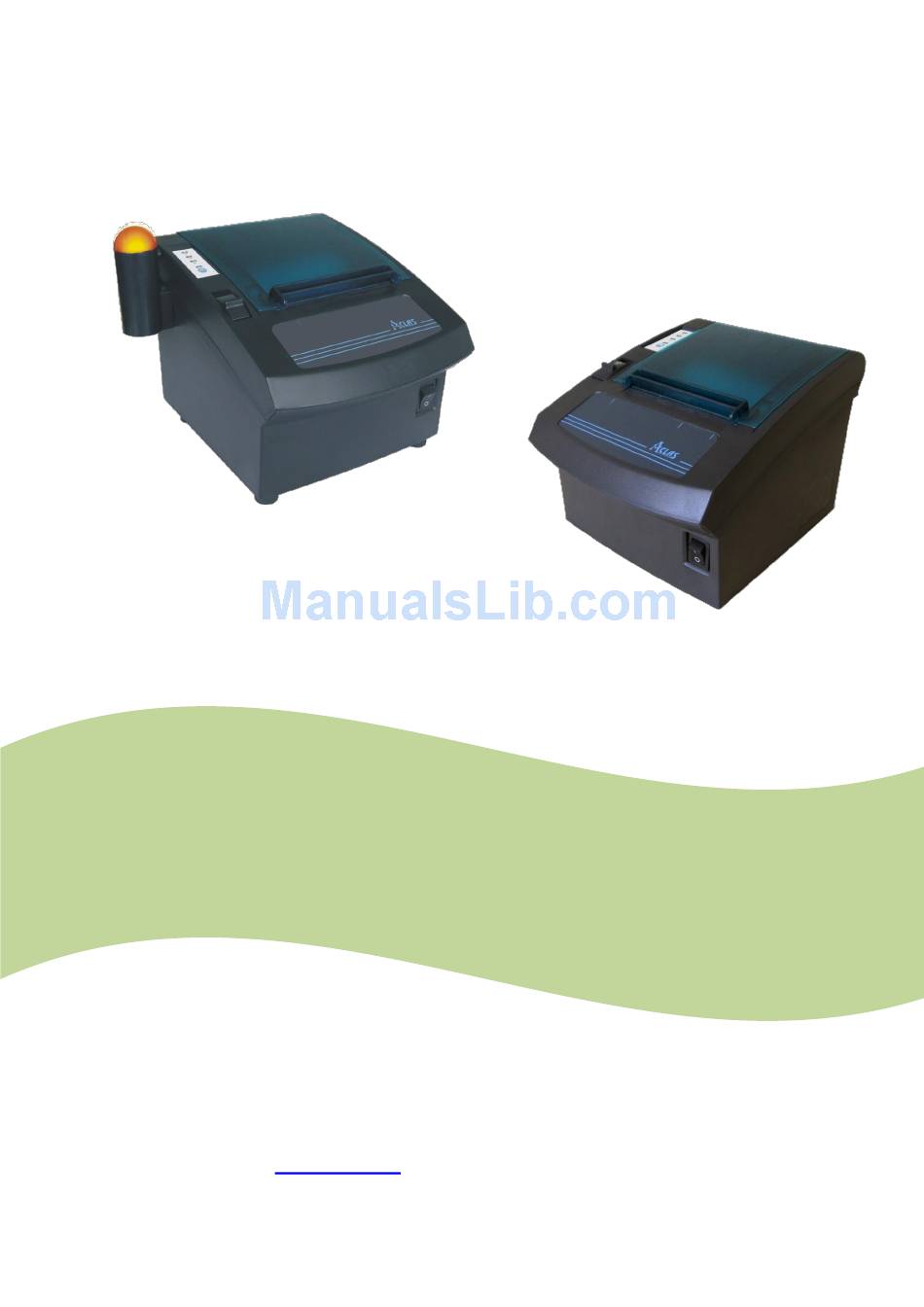

1.5 Appearance The printer with warning light Warning light Upper cover switch Power switch The printer without warning light Upper cover switch Power switch... -
Page 7: Accessories
1.6 Accessories User manual AC adapter AC power cord Wall fittings (optional) Paper roll PC Disk serial cable USB cable Communication cable (Different types of printer will match with different kinds of cable.) -
Page 8: Installation
2 INSTALLATION 2.1 Suspender Installation 1. Take off these two foot mat on the back as picture 1 shows. Picture 1 2. Use two screws to fix the fixer into the wall as picture 2. Picture 2 3. Fasten the printer on the wall as picture 3 shows: Picture 3... -
Page 9: Communication Board Replacement
Note: Make sure that KP7X is powered off when you are changing the communication board. Power off KP7X for more than 10s, then the communication board can be replaced. (The following pictures take KP7M1HX for example, and the method of KP7M1MX is the same as the KP7M1HX) (1) Use cross screwdriver to unscrew the two screws of the communication board as picture 4. - Page 10 (2) Open the printer upper cover by pressing the (3) Insert the paper roll to the printer as cover button as picture 6. picture 7. Upper cover button Picture 7 Picture 6 (5) Pull out a small amount of paper to make it parallel with the alignment line as picture 9，...
-
Page 11: Setting The Printer
3 SETTING THE PRINTER 3.1 Using the Printer Power indicator light To prompt error To prompt the paper is run out Press the button once to advance paper once line. You can also hold down the Feed button to feed paper continuously. Error Power Paper out... -
Page 12: Connecting The Computer
3.2 Connecting the Computer (1) Power off the printer. (2) Plug the communication cable securely into the printer, then attach the other end of the cable to the computer. (3) If the cable connector is shown as picture 11, tighten the two screws on both sides of the cable connector after connecting. -
Page 13: Self Test
4 SELF TEST Press key „Feed‟ and hold it, and then power on the machine at the same time, it will print a piece of Test Page. The information of this Test Page includes the printer‟s model, version, ID and the default setting of the dip switch when leave factory. -
Page 14: Untaken Receipts Sense Learning
5 UNTAKEN RECEIPTS SENSE LEARNING KP7X printer has the paper no-pickup sensor. When there is ticket no pick up, the KP7X printer will give a warning by flashing light and sound. It is very useful for use in the noisy kitchen. But the sensitivity of this function may be affected after a long time, especially in polluted or greasy area. -
Page 15: Connecting The Cables
6 CONNECTING THE CABLES NOTE: Before connecting any of the cables, make sure that both the printer and the host are turned off. Here The following pictures take KP7M1HX for example, and the connecting ports of KP7M1MX is the same as the KP7M1HX except the DC power port. 6.1 USB Interface (With RS232-D9) ... -
Page 16: Ethernet Interface
Pin No. Signal Name Direction Function Output Transmit Data Input Receive Data ——— Frame Ground Input Clear to Send Output Ready To Send 6.2 Ethernet Interface Pin No. Signal Name Function TXO+ TXO+ TXO- TXO- RXI+ RXI+ N.C. Not Connect Not Connect RXI- RXI-... -
Page 17: Dip Switch
7 DIP SWITCH The communication port module is with dip switch, please refer to the picture below: The Dip Switch There are 8 Dip Switch altogether, each switch has its own function, please refer to the diagram below: DIP-8 Function SW-1... - Page 18 SW-5 SW-6 Density Dark Middle Dark Middle Light Light NOTE: We suggest that you should not select ‘dark’ density level, or it may reduce the life time of the printer head for 15％. SW-7 and SW-8 are used to control baudrate, the on/off status of SW-7 and SW-8 is able to compose different baudrate.
-
Page 19: Maintenance
8 MAINTENANCE Paper dust inside the printer may lower the printer quality. The thermal printer head is probably dirty, if part of letters is not printed distinctly. Please follow steps below to clean the printer head. Note: If the dust is not cleaned in time, it will lead to defective cooling. High-quality thermal paper is able to reduce the possibility of polluting the printer head, and almost no need to clean it. -
Page 20: Troubleshooting
9 TROUBLESHOOTING 1) Paper is near end or used up. If the paper is near end or used up, the light of paper out and power will light on at the same time. In this case, the printer will stop printing. And then install a new paper roll, the printer will continue printing. 2) The printer keeps alarming and flashing after the paper is fetched. - Page 21 Note: Close the upper cover securely could avoid paper-cutter lock. If the problem still exists, contact our after-sales service center. 10) The temperature of the printer head is too high Power off the printer, and then restart it until the temperature is cooling down. DKP7M01ENV0-KP7X-08...
- Page 22 Head Office: 4F, NO.270, Sec 3, Nan-kang Road, Taipei, Taiwan Factory 1: North 4th Floor, Guangxia Building, Torch Hihg-Tech Zone, Xiamen, China Factory 2: No.1, Fangshannan Road, Xiang‟an Industrial Zone, Xiamen, China...
