Renogy MTS-TMB Manual
Renogy MTS-TMB Manual

Renogy MTS-TMB Manual

Tilt mount bracket

Advertisement

Quick Links

MTS-TMB
Renogy Tilt Mount Bracket
2775 E Philadelphia St, Ontario, CA 91761
1-800-330-8678
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTS-TMB and is the answer not in the manual?

Questions and answers

Summary of Contents for Renogy MTS-TMB

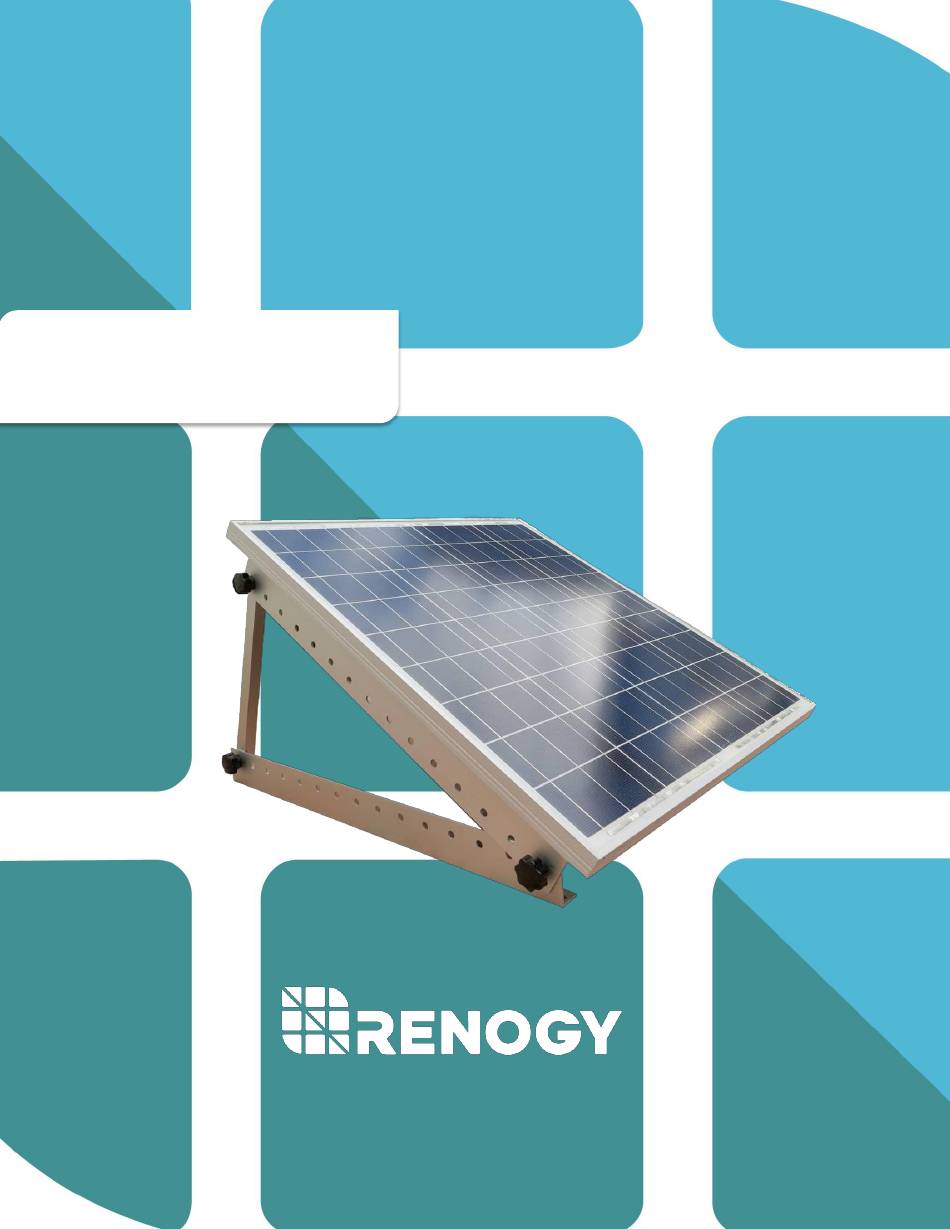

  • Page 1 MTS-TMB Renogy Tilt Mount Bracket 2775 E Philadelphia St, Ontario, CA 91761 1-800-330-8678...
  • Page 2 Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the Renogy Tilt Mount Brackets hardware system. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information.
  • Page 3: Table Of Contents

    Table of Contents General Information ............................4 Identification of Parts ............................. 5 Installation ................................7 Dimensions ................................ 13 Compatibility ..............................14...
  • Page 4: General Information

    General Information The Renogy Tilt Mount Bracket is designed with intent on mounting to your RV. It is suitable for most Renogy panels and can be mounted on any flat surface. This mount optimizes performance by allowing tilting when the RV is parked, and flat mounting when the RV is in motion. The angle adjustability is dependent on the panels themselves, with bigger panel sizes decreasing angle adjustability.
  • Page 5: Identification Of Parts

    Identification of Parts Image Component Fixed L-Bracket Tilt L-Bracket M8 Plastic Knob Screw M8 Wing Nut M6 x 16mm Hex Cap Bolt...
  • Page 6 M6 Split Lock Washer M6 Flat Washer M6 Hexagonal Nut M8 Washer M8 Spring Washer #10 x 1¼ in Self- Drilling Cap Screw Plastic Retaining Ring...
  • Page 7: Installation

    Installation WARNING: The equipment should be installed, adjusted, and serviced by a qualified electrical maintenance personnel familiar with the construction and operation of the equipment and hazards involved. Failure to observe this precaution may result in bodily injury. Protective gloves and safety glasses should be worn during installation.
  • Page 9 Portrait landscape Note: The RNG-100P should be installed using landscape.
  • Page 10 CAUTION: For your safety the following steps require at least two people to install.
  • Page 13: Dimensions

    Dimensions Note: The following drawings utilize inches as their dimension units. Fixed Bracket Tilt Bracket...
  • Page 14: Compatibility

    RNG-80D-SS COMPATIBLE RNG-100D COMPATIBLE RNG-100D-S COMPATIBLE RNG-100D-SS COMPATIBLE RNG-100D-SSP COMPATIBLE RNG-100MB COMPATIBLE RNG-100D-R INCOMPATIBLE RNG-160D-SS INCOMPATIBLE RNG-300D COMPATIBLE RNG-50P COMPATIBLE RNG-100P INCOMPATIBLE RNG-160P INCOMPATIBLE RNG-270P INCOMPATIBLE RNG-320P Renogy reserves the right to change the contents of this manual without notice.
