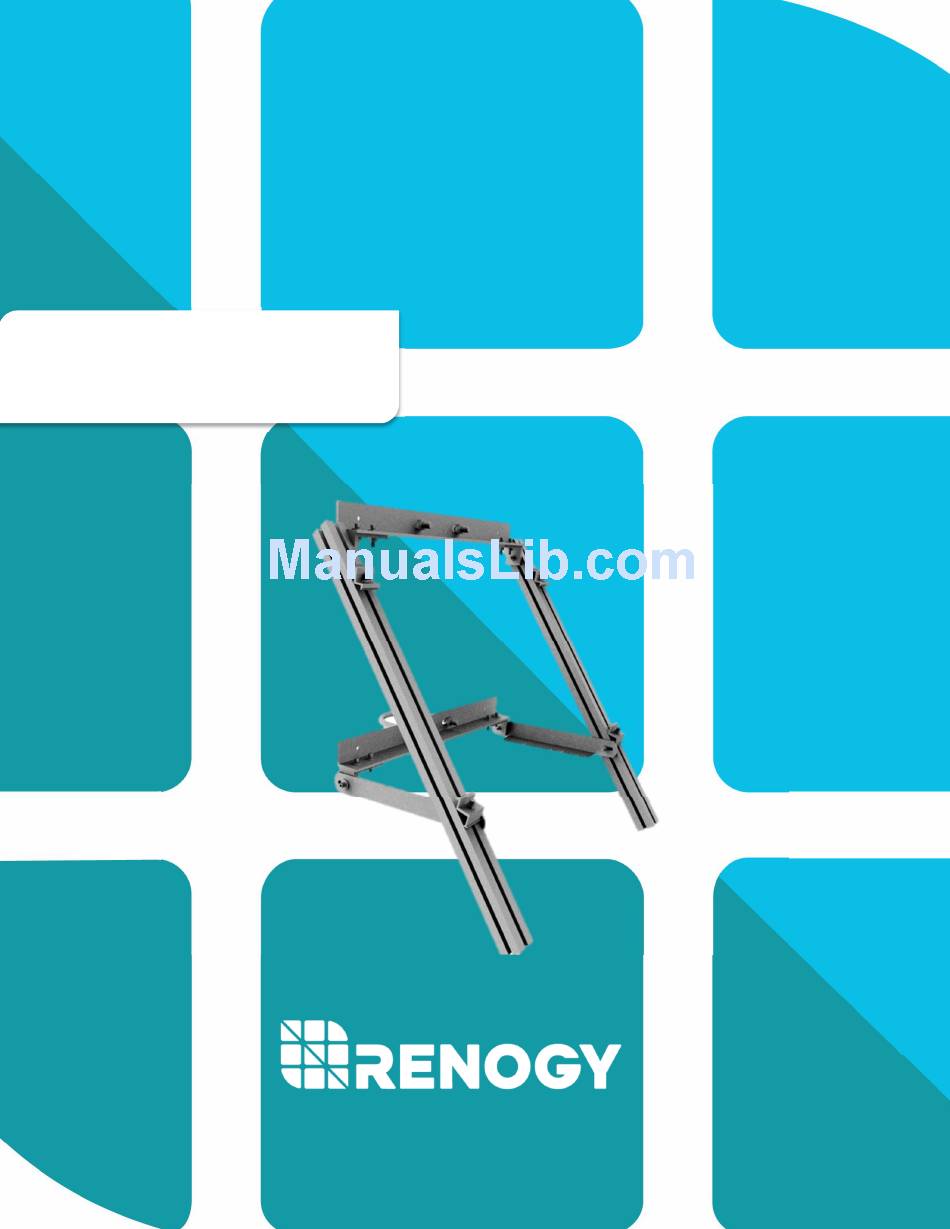

- Page 1 MTS-SP100 RENOGY Pole Mount System 2775 E Philadelphia St, Ontario, CA 91761 1-800-330-8678 Version: 1.2...
-
Page 2: Important Safety Instructions
Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the Renogy Pole Mount hardware system. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information. -
Page 3: Table Of Contents
Table of Contents General Information ..............................4 Identification of Parts ..............................5 Installation ..................................8 Fasten L-Channels to L-Brackets .........................8 Slide U-Bolt through back face of L-Channel ..................9 Attach Support Arm to bottom L-Brackets ..................10 Fasten T-Slotted Brackets to top L-Channel using the L-Brackets .......... 11 Fasten the bottom of the T-Slotted Bracket to Support Arm ............ -
Page 4: General Information
General Information The Renogy Pole Mount System is designed for off-grid applications, when mounting to a roof is not ideal. It will support off-grid systems, and Renogy 100W solar panel. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy, affordable and quick. -
Page 5: Identification Of Parts
Identification of Parts Image Component Description Main component. Solar modules are T-Slotted Bracket secured this directly. Unit works in tandem with other segments Unit which connects L-Channel (B) T-slotted brackets. Acts joint L-Bracket (C) between L-channel and support arm. It supports T-slotted brackets on the side Support Arm (D) and connect them to... - Page 6 Unit which connects U-Bolt (E) pole mounting system. Fastener used connect T-slotted bracket other components and can T-Bolt (F) slide along bracket adjust the space for panel. (G): General fastener used throughout system. Various lengths present. Cap Head Bolt (G) (I): Deformable Spring Washer (I)
- Page 7 Holds end modules in place compression acts as an end stop. NOTE: May look End Clamp (J) different than pictured. Specific clamps required based on panel thickness. Used to tighten T- bolts and cap head Nut (Small) (K) bolts to components. Normal flat washer used prevent...
-
Page 8: Installation
Installation Recommended tools to have before installation (Not provided): Socket wrench Torque extension Box-Leveler Tape Measure 18mm wrench or socket for larger hex nut 13mm wrench or socket for smaller hex nut The above tools and equipment are highly recommended to have available to assist with installation but are in no way a comprehensive list of tools that can ease installation. -
Page 9: Slide U-Bolt Through Back Face Of L-Channel
Slide U-Bolt through back face of L-Channel A. Hold the assembled system up to pole so that L-Channel (B) back face is flush to surface of the pole and slide the U-Bolt (E) through the holes. B. Fasten U-Bolt (E) with a large washer (L) and 1 or 2 nuts (M) (depending on how much thread is available. -
Page 10: Attach Support Arm To Bottom L-Brackets
Attach Support Arm to bottom L-Brackets A. Flush Support Arm (D) to L-Bracket (C) and align the holes. B. Place washer on Support Arm (D) surface and align holes. C. Feed a Cap Head Bolt (G) through Support Arm (D), and the L-Bracket (C). D. -
Page 11: Fasten T-Slotted Brackets To Top L-Channel Using The L-Brackets
Fasten T-Slotted Brackets to top L-Channel using the L-Brackets A. Slide T-Bolt (F) through the top of the T-Slotted Bracket (A) approximately 35mm (1.4in) down. There is no need to place a spring washer, or regular washer through the T-bolt. B. -
Page 12: Fasten The Bottom Of The T-Slotted Bracket To Support Arm
Fasten the bottom of the T-Slotted Bracket to Support Arm A. Slide T-Bolt (F) through same slot as previous step. The distance that the bolt should slide depends on the angle that the T-Slotted Bracket (A) was fastened to the top L-Channel (B). -
Page 13: Slide Panel Onto Brackets And Fasten With End Lamps
Slide panel onto brackets and fasten with end lamps A. Hold the panel up to the pole mount to determine approximate position that End Clamps (J) must be to hold panel. B. Start with the bottom clamps since they will hold most of the load. C. - Page 14 Figure 7 Figure 8...
-
Page 15: Pole Mount Dimensions
Pole Mount Dimensions T-Slotted Bracket (A) L-Channel (B) NOTE: Dimensions in inches. -
Page 16: Compatibility
Support Arm (D) NOTE: Dimensions in inches. Compatibility RENOGY Solar Module Compatibility* INCOMPATIBLE RNG-10D INCOMPATIBLE RNG-20D INCOMPATIBLE RNG-30D INCOMPATIBLE RNG-50D COMPATIBLE RNG-100D COMPATIBLE RNG-100MB INCOMPATIBLE RNG-150D INCOMPATIBLE RNG-250D INCOMPATIBLE RNG-50P COMPATIBLE RNG-100P INCOMPATIBLE RNG-270P INCOMPATIBLE RNG-310P...
