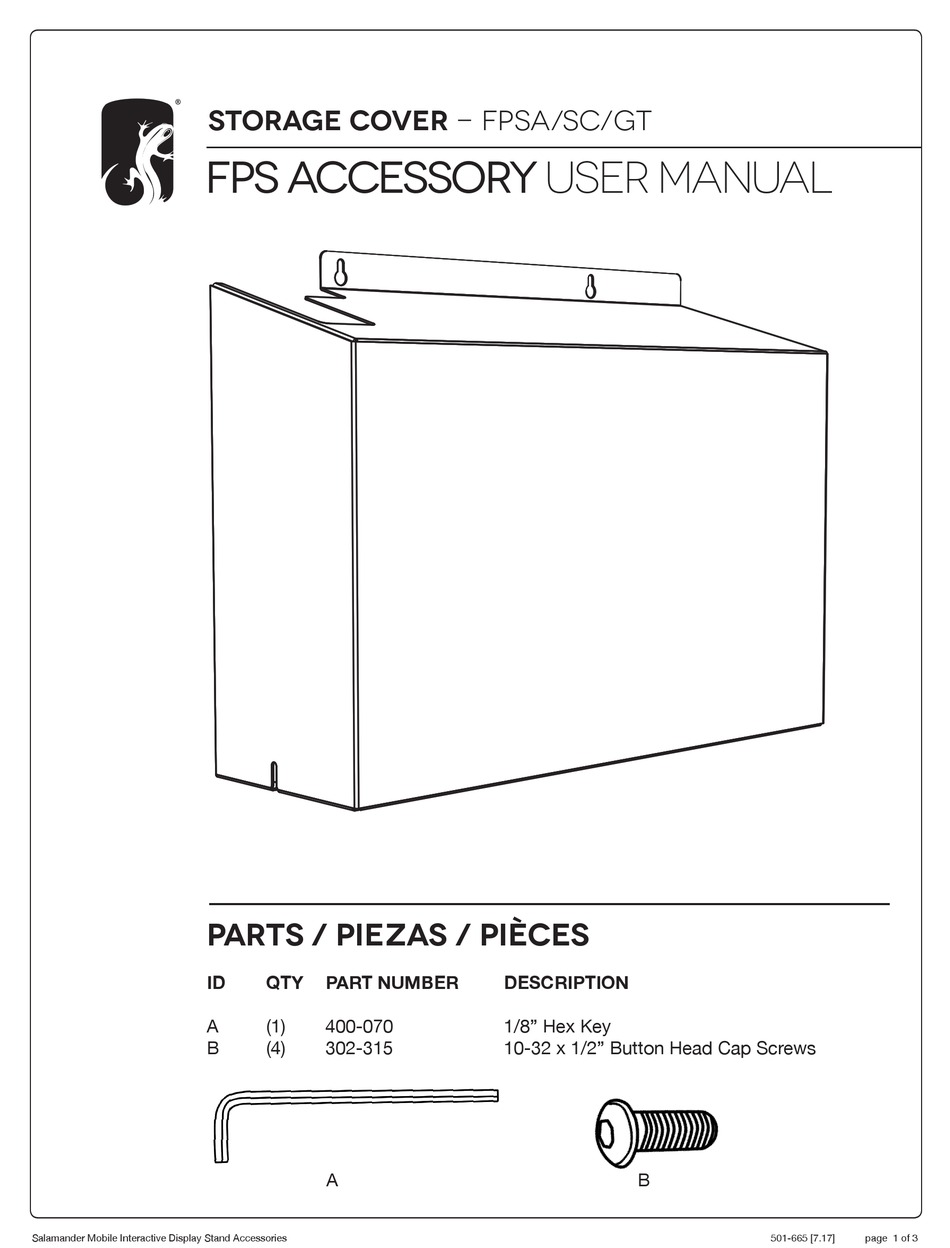

Storage Cover - FPSA/SC/GT
FPS accessory user manual
PARTS / PIEZAS / PIÈCES
ID
A
B
Salamander Mobile Interactive Display Stand Accessories
QTY
PART NUMBER
(1)
400-070
(4)
302-315
A
DESCRIPTION
1/8" Hex Key
10-32 x 1/2" Button Head Cap Screws
B
501-665 [7.17]
page 1 of 3
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Salamander Designs FPS Series
Summary of Contents for Salamander Designs FPS Series
- Page 1 Storage Cover - FPSA/SC/GT FPS accessory user manual PARTS / PIEZAS / PIÈCES PART NUMBER DESCRIPTION 400-070 1/8” Hex Key 302-315 10-32 x 1/2” Button Head Cap Screws Salamander Mobile Interactive Display Stand Accessories 501-665 [7.17] page 1 of 3...
- Page 2 Install Storage cover Loosely install two of the button head screws (B) into the back panel of the stand. Fit the top portion of the storage cover over the two screws Push lower portion of cover into slots on the bottom of the frame. Push down until seated.
- Page 3 Español Deutsch français Montage der Instalar cubierta de Installer la housse Aufbewahrungshülle Almacenamiento de rangement Montieren Sie zwei der Instale de forma suelta dos de los Installez sans trop serrer deux Halbrundschrauben (B) locker tornillos con cabeza de botón (B) des vis à...
