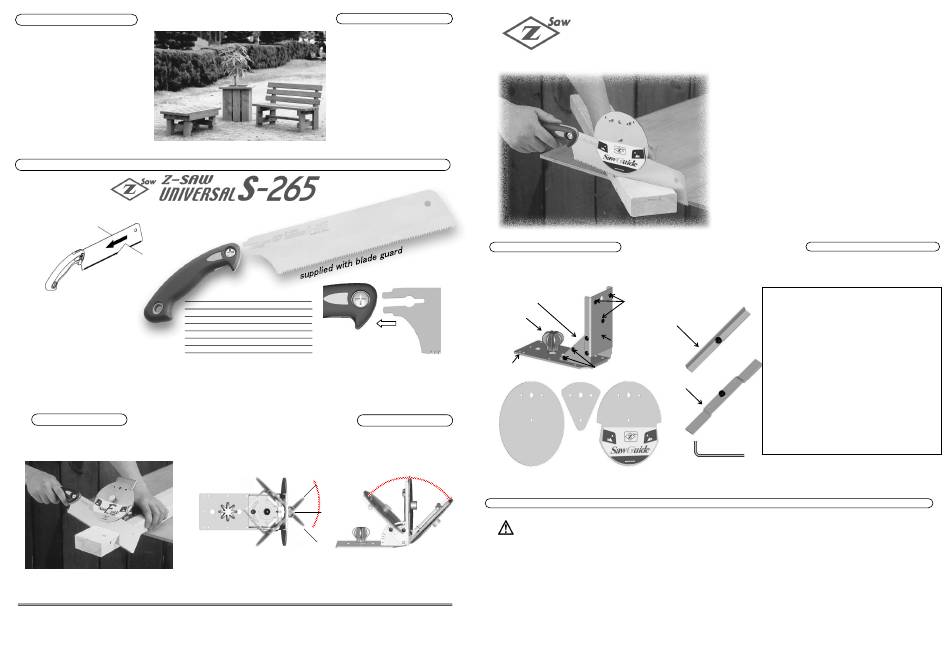

Z-Saw UNIVERSAL S-265 Instruction Sheet

Oh, did you make these by yourself?
All these furniture were actually made by using Z-SAW UNIVERSAL S-265 & Saw Guide.
THIS SAW IS SPECIALLY DESIGNED AND PRODUCED TO BE USED WITH
SAW GUIDE-FREE ANGLE AND SAW GUIDE .
CUTS ON
THE PULL
STROKE
Cutting on the pull-stroke prevents the
S a w B l a d e
blade from buckling, binding, and allows
Teeth Type
the blade to be thin. The thinner blade
Blade Length
removes less material, makes sawing
Blade Thickness
easier, faster and more accurate!
Kerf
Pitch
Handle
Overall Length

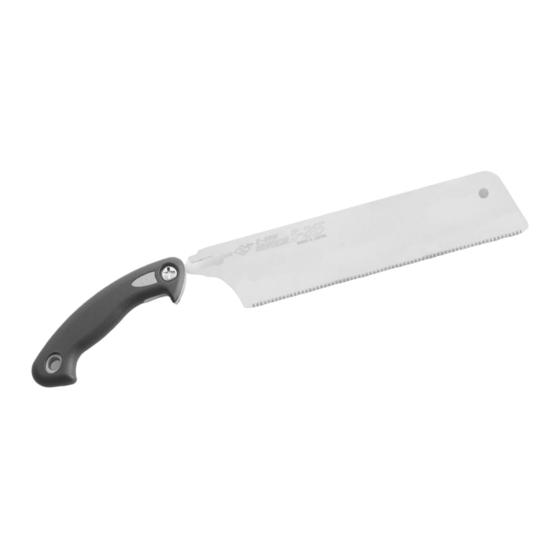

ADVANTAGES OF
Z-SAW UNIVERSAL S-265
● HIGH QUALITY SAW BLADE IS DURABLE, FLEXIBLE AND RUST RESISTANT.
● SPECIAL CUTTING EDGE DESIGNED FOR RIP, CROSS & SLANT CUTS.
●
EASY & QUICK BLADE REPLACEMENT STYLE (Convenient for tool box storage).
●
NON-SLIP ELASTOMER COVERED GRIP HANDLE.
Look for more versatile saw guide?
Saw Guide-
See
SPECIAL FEATURES:
Designed to freely adjust sawing angles both horizontally and vertically from left 45˚ to right 45˚ .
Okada Hardware Mfg.Co.,Ltd.
561 Omura, Miki-shi, Hyogo, Japan 673-0404
Phone: +81-794-83-1111 / Fax: +81-794-83-5111
URL: http://www.z-saw.co.jp/en E-mail: webmaster@z-saw.co.jp
U n i v e r s a l s - 2 6 5
Medium fine
265mm(10-½")
0.60mm(0.024")
0.92mm(0.037")
Insert the saw blade into the
14TPI
handle until the slit in the
Pistol S-160 Green
blade is completely covered,
420mm(16-½")
then tighten the screw firmly.
F
ree Angle
45°
45°
90°
45°
Horizontal Adjustment Vertical Adjustment
※ Read the sheet prior to use, and keep it for future reference.
②
ANGLE BRACKET
⑨
KNOB
①
BASE PLATE
⑥
SPACER
④
90°
INNER GUIDE PLATE
45°
Caution
○ Over tighten screws may damage the screws and Hex key wrench.
○ Being used with saws other than Z-saw Universal S-265 may damage both saw blade and guide.
○ Bumping saw handle against guide plates amid the strokes may cause inaccurate sawing result.
○ Do not drop the guide on the ground, as doing so may cause distortions on it.
○ Wear safety goggles.
Notice
○ Specification may change without notice to improve quality.
○ Copyright © Okada Hardware Manufacturing Company Limited.
ZSGE000910-01
Saw Guide
You may think sawing straight is very difficult
and that only professionals can do it. But,
using the Saw Guide, you can make precise
cuts just like professional carpenters do. It's
ideal for users who always need to cut precise
90°straight cuts, both right and left 45° angle
cuts or inclined 45° angle cuts. From picture
frames to practical and useful household and
garden furniture of your own, the Guide will
definitely be an indispensable tool for your
D.I.Y. activities.
Saw Guide
part # ①､ ②､ ③､ and ⑨ are adjusted at the factory for 90° cutting.
⑩
SCREWS
⑦
GUIDE FENCE
③
SAW GUIDE HOLDER
⑪
SPARE SCREWS
⑧
PARALLEL SLIDING HOLDER
⑤ ⑫
HEX KEY WRENCH
GUIDE PLATE
Instruction sheet
Part # Description Quantity
① 1
BASE PLATE
② 1
ANGLE BRACKET
③
1
SAW GUIDE HOLDER
④ 1
INNER GUIDE PLATE
⑤ 1
GUIDE PLATE
⑥ 1
SPACER
⑦ 1
※
GUIDE FENCE
※ ⑧ 1
PARALLEL SLIDING HOLDER
⑨ 1
KNOB
⑩ 3
SCREWS
(8mm length)
⑪
2
SPARE SCREWS
(5mm & 8mm length)
⑫ 1
※
HEX KEY WRENCH
※ marked parts are packed in a paper envelope.
