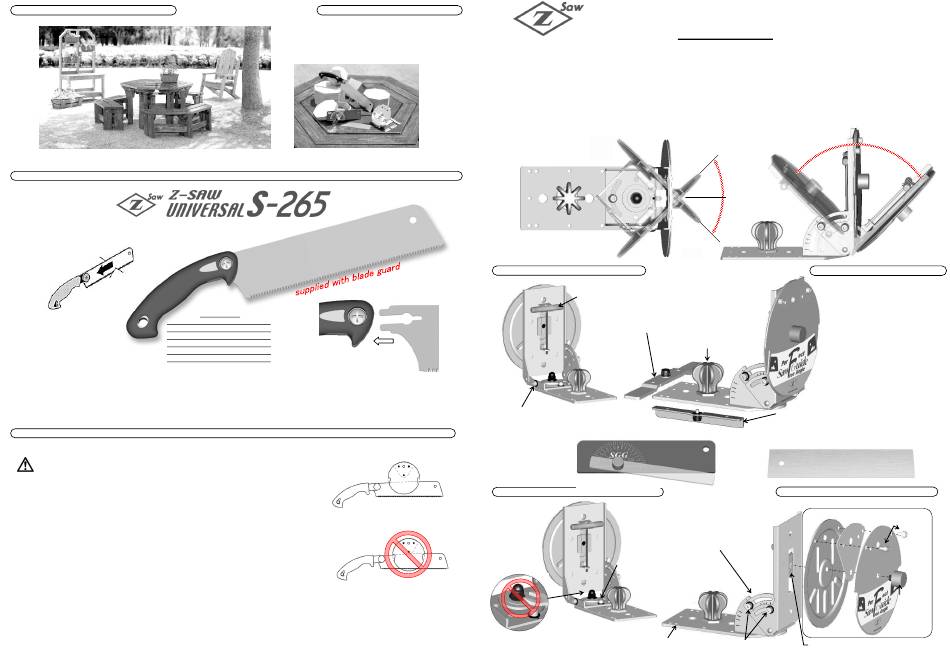

Z-Saw S-265 Instruction Sheet

Oh, did you make these?
‐SAW UNIVERSAL S-265
These are actually made by using Z
THIS SAW IS SPECIALLY DESIGNED AND PRODUCED TO BE USED WITH
SAW GUIDE-FREE ANGLE AND SAW GUIDE .
CUTS ON
THE PULL
STROKE
M o d e l : 2 6 5
Cutting on the pull-stroke
Type
prevents blade from buckling
Overall Length
and binding, allows blade to Blade Length
be thin. The thinner blade
Blade Thickness
removes less material, makes Kerf
sawing easier, faster and Pitch
more accurate!
ADVANTAGES OF Z-SAW UNIVERSAL S-265
● HIGH QUALITY SAW BLADE IS DURABLE, FLEXIBLE AND RUST RESISTANT.
●
SPECIAL CUTTING EDGE DESIGNED FOR RIP, CROSS & SLANT CUTS.
● EASY & QUICK BLADE REPLACEMENT STYLE (Convenient for tool box storage).
● NON-SLIP ELASTOMER COVERED GRIP HANDLE.
Thank you for your purchase of Saw Guide Free Angle.
Please read this instruction carefully and keep it in good condition.
Caution
○ Do not tighten screw too strong. It may damage hex screw or T-shape
hex wrench.
○ Teeth should always stay out of the saw guide plate.
Otherwise teeth edge will be damaged by insides of saw guide plate.
○ Do not tighten the knob too strong. It may be damaged.
○ Wear safety goggles.
Notice
○ Specification may change without notice to improve quality.
○ The copyright belongs to Okada Hardware Manufacturing Company Limited.
Okada Hardware Mfg.Co.,Ltd.
561 Omura, Miki-shi, Hyogo, Japan 673-0404
TEL: 81-794-83-1111 / FAX: 81-794-83-5111
URL: http://www.z-saw.co.jp/en E-mail: webmaster@z-saw.co.jp
& Saw Guide, Free Angle.
Medium-Fine
420mm(16-½")
265mm(10-½")
0.60mm(0.024")
Put the saw blade into
0.92mm(0.037")
handle deep enough to
14TPI
cover the end slit of the
blade.
Teeth edges should always stay
→
See pictures right
out of the saw guide plates.
Teeth edges touch inside
of saw guide plates.
TFE200508A
Saw Guide, Free Angle
Features:
This innovative Adjustable angle saw guide is designed for the exclusive use by Z‐SAW universal s-265.
Quick and very easy angle adjustment for sawing at any angle between both 45° right & left direction as well
as both 45° front & back inclined direction. Rigidly and precisely constructed steel-made Adjustable angle
saw guide ensures accurate straight cuts, and it can be held in a position firmly by hand supporting with
positioning holders. Equally suited for left and right hand position. Long straight cut on a wide board is also
easily possible by using the parallel sliding holder. Special Saw Guide Gauge and Dummy Ｂｌａｄｅ for exact
angle adjustment are available.
Saw Guide Free Angle
T-SHAPE HEX WRENCH
※ PARALLEL SLIDING HOLDER
... for cutting wide board
SPARE SCREW
SPARE WASHER
...for angle adjustment
SAW GUIDE GAUGE
Construction of Parts
Horizontal angle
adjusting screw
Rotating base part of angle bracket is
Base plate
pre-set at factory. Do not loosen
the screw.
Instruction Sheet
(How to Use)
45°
45°
90°
45°
※ KNOB
※ marked parts are packed in a
Vinyl envelope.
※ POSITIONING HOLDER
... for cutting square lumber
DUMMY BLADE
Guide Plate
Spacing
plate
Vertical angle bracket
Vertical angle fixing screw
Height adjusting nut
90°
45°
Guide plate
fixing screw
Height
adjusting
knob
