Oh, did you really make these yourself?
This furniture was actually made using the Z -SAW CARPENTRY 265 & Perfect Saw Guide.
THIS SAW IS SPECIALLY DESIGNED AND PRODUCED TO
MAXIMIZE THE CAPABILITY OF THE "PERFECT SAW
CUTS ON
THE PULL
STROKE
Cutting
on
the
pull-stroke
prevents
the
blade
from
Type
Overall Length
buckling and binding, and
Blade Length
allows the blade to be thin.
Blade Thickness
The thinner blade removes
Kerf
less material, makes sawing
Pitch
easier,
faster
and
more
accurate!

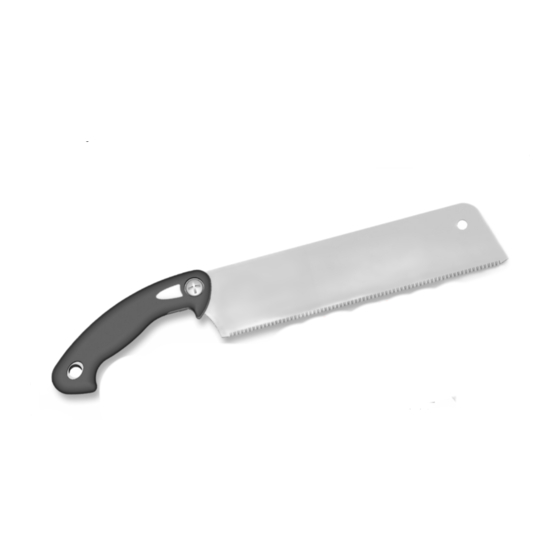

ADVANTAGES OF Z-SAW CARPENTRY 265
THE HIGHEST QUALITY BLADE IS DURABLE, FLEXIBLE AND RUST RESISTANT.
SPECIAL CUTTING EDGE DESIGNED FOR RIP, CROSS & SLANT CUTS.
EASY & QUICK REPLACEMENT BLADE STYLE (Convenient for tool box storage).
NON-SLIP ELASTOMER COVERED GRIP HANDLE.
Thank you for your purchase of Perfect Saw Guide Free Angle.
Please read these instructions carefully and keep them safely for future
reference.
Caution
Do not overtighten hex screws, as doing so is likely to damage hex screw or
the special T-shape hex wrench.
Saw teeth should always stay out of the saw guide plate. See pictures →
Do not overtighten the knob
Wear safety goggles.
Notice
○ Specification may change without notice to improve quality.
○ Copyright © Okada Hardware Manufacturing Company Limited.
Okada Hardware Mfg.Co.,Ltd.
561 Omura, Miki-shi, Hyogo, Japan 673-0404
TEL: 81-794-83-1111 / FAX: 81-794-83-5111
URL: http://www.z-saw.co.jp E-mail: webmaster@z-saw.co.jp
M o d e l : 2 6 5
Medium-Fine
445mm(17-½")
265mm(10-½")
0.60mm(0.024")
Insert the saw blade into the
0.92mm(0.037")
handle deeply enough to
14TPI
cover the end of the slit in
the
blade.
Tighten
screw.
Saw teeth should always stay
clear of the saw guide plates.
Saw teeth will be seriously
damaged by contact with
saw guide plates.
Great Features:
This innovative adjustable-angle saw guide is designed exclusively for use with Z-SAW CARPENTRY 265 saw.
Quick and very easy angle adjustment for sawing at any angle between 45° right & 45° left as well as between 45°
forward & 45° backward inclined.
The rigidly and precisely constructed steel-made adjustable angle saw guide ensures accurate straight cuts, and it
can be held in position firmly by hand or supported with positioning clamps. Equally suited for left- and right-hand
use.
Long straight cuts on wide boards are also easily made by using the parallel sliding holder.
Special Saw Guide Gauge and Dummy Blade for exact angle adjustment are included.
T-SHAPE HEX WRENCH
the
SPARE SCREW
SPARE WASHER
SAW GUIDE GAUGE
Rotating base part of angle bracket is
pre-set at factory. Do not attempt to
TFE200508A
adjust this screw.
Perfect Saw Guide, Free Angle
Instructions for use
45°
90°
45°
Package Contents
※ PARALLEL SLIDING HOLDER
... for cutting wide board
※ KNOB
...for angle adjustment
Assembly
Vertical angle bracket
Horizontal angle
adjusting screw
Base plate
Vertical angle fixing screws
90°
45°
45°
※ marked parts are packed
in a Vinyl envelope.
※ GUIDE FENCE
... for cutting square timber
DUMMY BLADE
Guide Plate
Spacing
Guide plate
plate
fixing screw
Height
adjusting
knob
Height adjusting nut
