1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards
(Fig. 4, pg. 5). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 4, pg. 5).
Note: Altronix sub-assembly positions can accommodate two (2) PD4UL/PD4ULCB, PD8UL/PD8ULCB or MOM5.
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 4a, pg. 5).
3. Mount appropriate CDVI A22K/A22NB/ADH10 modules into the correct positions (Fig. 4, pg. 5). by positioning spacers over
appropriate holes on the backplane and depress down on board to secure spacer to the backplane (Fig. 4, 4b, 4c, pg. 5).
Note: CDVI A22K/A22NB/ADH10 modules have one (1) RJ45 jack each. Please make sure that they are mounted correctly, as shown
in Fig. 4 below.
4. TCV3 backplane installation: refer to note below drawing and Fig. 4d, pg. 5.
5. Fasten TCV3 backplane to Trove3 enclosure utilizing pan head screws (provided).

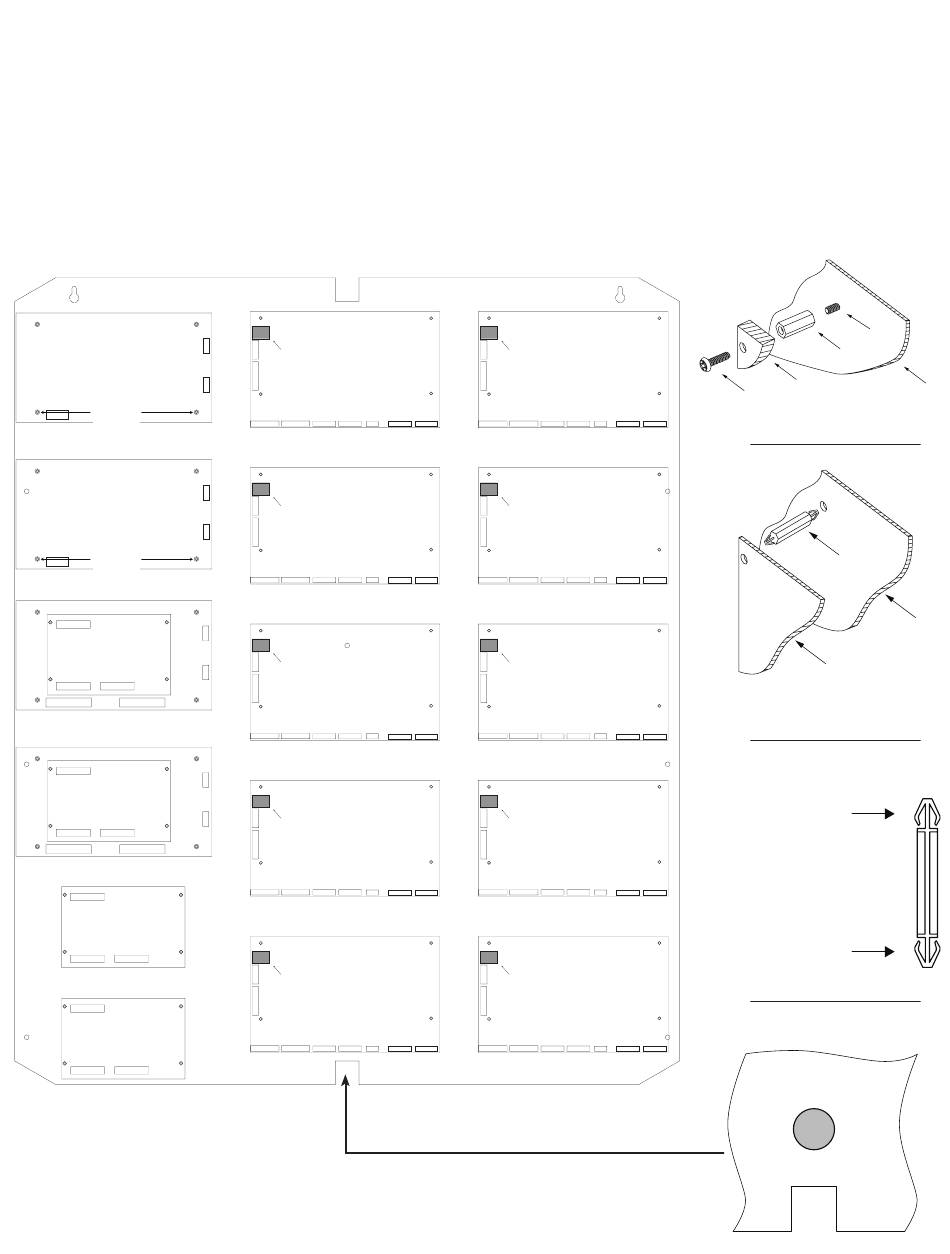

Fig. 4 - Trove3CV3/TCV3 Configurations
Altronix
Power Supply
Metal
Spacer
Placement
Altronix
Power Supply
Metal
Spacer
Placement
Altronix
Sub-Assembly
Altronix
Sub-Assembly
Altronix
Sub-Assembly
Altronix
Sub-Assembly
Note: TCV3 bumper installation.
Prior to mounting TCV3 install rubber bumpers
(included) to the back of backplane, one (1) on
top and one (1) on bottom, approximately 1"
from the cutouts (Fig. 4d, pg. 5).
Bumpers are pre-installed in Trove3CV3
Trove / CDVI
TCV3: Configuration of Altronix Power Supply
and/or Sub-Assembly Boards and CDVI Modules
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
RJ45 Jack
CDVI - A22K/A22NB/ADH10
Fig. 4a
Pem
Spacer
Altronix
Power Supply or
Pan Head
Sub-Assembly
Screw
Fig. 4b
Spacer
CDVI - A22K/A22NB/ADH10
Access Controller
Fig. 4c
Plastic Spacer
pre-mounted into
CDVI Atrium modules
Insert into
TC1/TCV2/TCV3 backplane
Fig. 4d
Rubber
Bumper
Back of
Cutout
Backplane
Backplane
Backplane
