Altronix TROVE Trove1C1 Installation Manual page 3

1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards
(Fig. 2, pg. 3). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount appropriate CDVI A22K/A22NB/ADH10 modules into the correct positions (Fig. 2, pg. 3) by postioning spacers over
appropriate holes on the backplane and depress down on board to secure spacer to the backplane (Fig. 2, 2b, 2c, pg. 3).
Note: CDVI A22K/A22NB/ADH10 modules have one (1) RJ45 jack each.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
4. Fasten TC1 backplane to Trove1 enclosure utilizing pan head screws (provided).

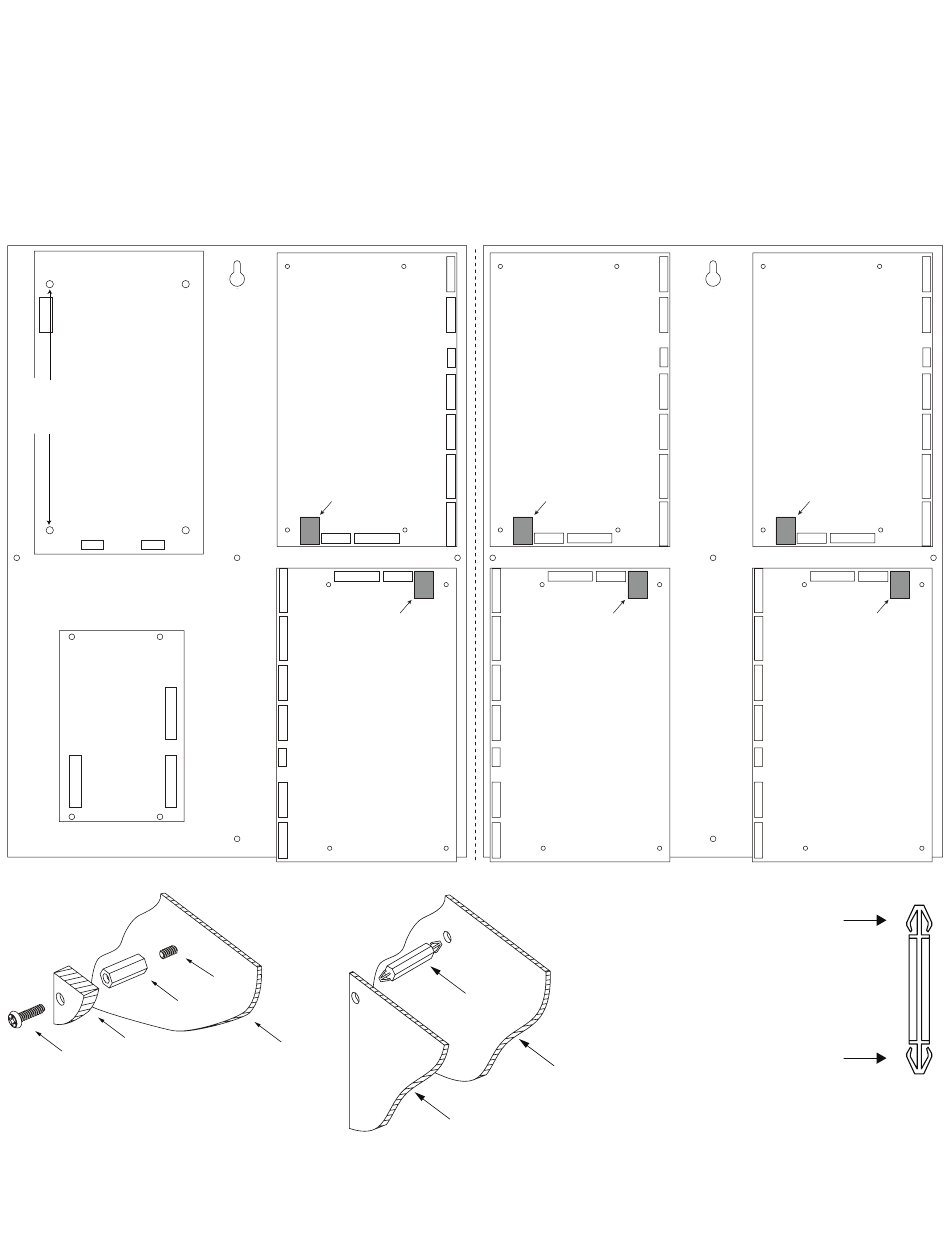

Fig. 2 - Trove1C1/TC1 Configurations
Altronix
Metal
Power
Spacer
Placement Supply
Altronix
Sub-
Assembly
Fig. 2a
Spacer
Altronix
Power Supply or
Pan Head
Sub-Assembly
Screw
Trove / CDVI
TC1: Configuration of Altronix Power Supply
and/or Sub-Assembly Boards and CDVI Modules
CDVI
A22K/A22NB/ADH10
RJ45 Jack
RJ45 Jack
CDVI
A22K/A22NB/ADH10
Fig. 2b
Pem
Backplane
CDVI
A22K/A22NB/ADH10
RJ45 Jack
RJ45 Jack
CDVI
A22K/A22NB/ADH10
Spacer
Backplane
CDVI - A22K/A22NB/ADH10
Access Controller
CDVI
A22K/A22NB/ADH10
RJ45 Jack
RJ45 Jack
CDVI
A22K/A22NB/ADH10
Plastic Spacer
Fig. 2c
pre-mounted into
CDVI Atrium modules
Insert into
TC1/TCV2/TCV3 backplane
- 3 -
