SCS 724 Plus Installation, Operation And Maintenance Manual page 3

Dual Operator Remote
A

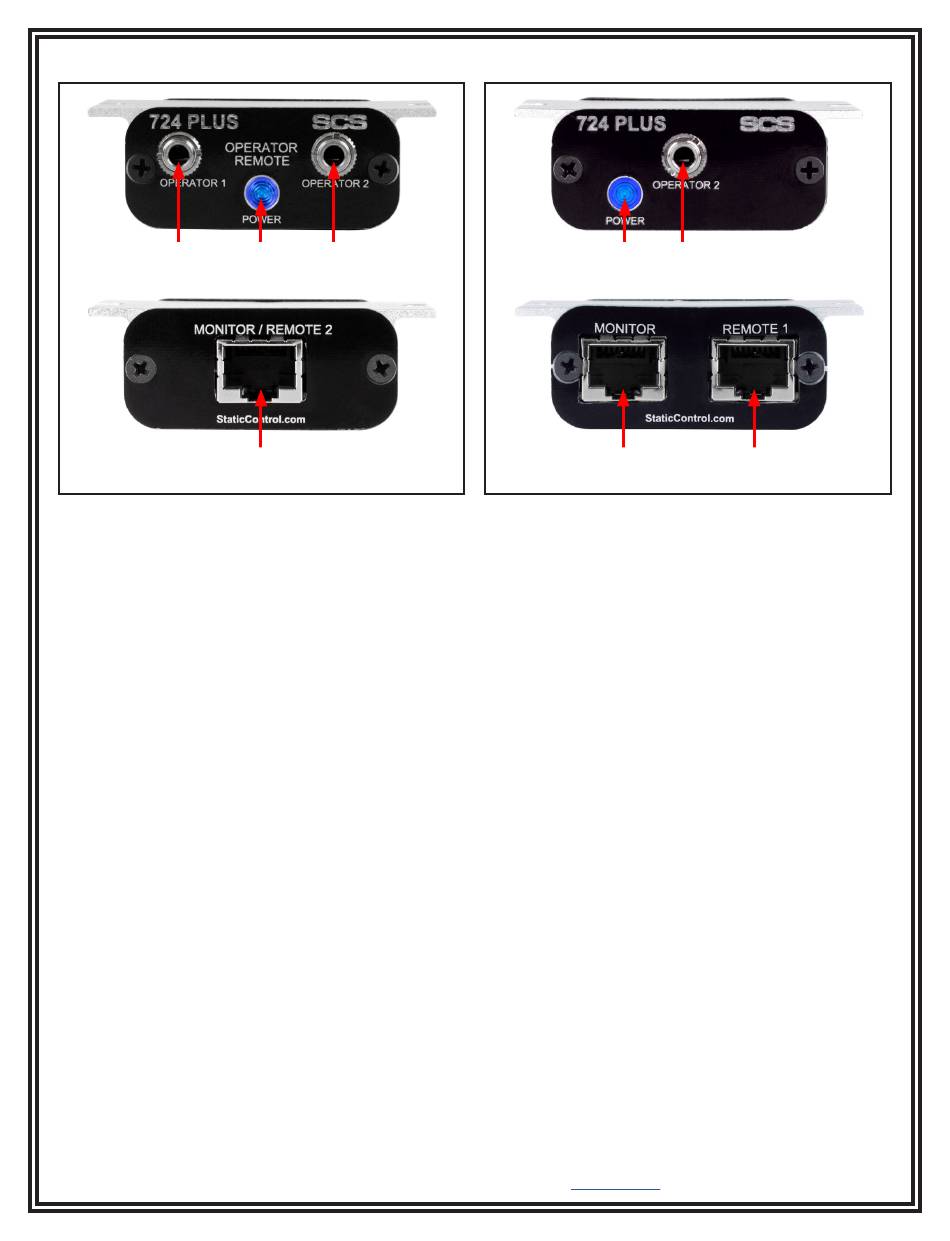

Figure 3. Dual Operator Remote features and
components
A. Monitored Operator 1 Jack: Insert the dual-wire
wrist cord of an operator here to monitor his/her body
voltage and connection to ground.
B. Power LED: Illuminates solid blue when the Dual
Operator Remote is powered.
C. Monitored Operator 2 Jack: Insert the dual-wire
wrist cord of an operator here to monitor his/her body
voltage and connection to ground.
D. Monitor / Workstation 2 Operator Remote Jack:
Use the included operator remote cable to connect the
724 Plus Workstation Monitor to this connector. The
monitor will alarm should the operator remote cable
disconnect from this connector.
TB-9098 Page 3 of 7
B C
FRONT
D
BACK
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
Workstation 2 Operator Remote
A
C
Figure 4. Workstation 2 Operator Remote features and
components
A. Power LED: Illuminates solid blue when the Dual
Operator Remote is powered.
B. Monitored Operator 2 Jack: Insert the dual-wire
wrist cord of an operator here to monitor his/her body
voltage and connection to ground.
C. Monitor Remote Jack: Use the included operator
remote cable to connect the 724 Plus Workstation
Monitor to this connector. The monitor will alarm
should the operator remote cable disconnect from this
connector.
D. Dual Operator Remote Jack: Use the included
operator remote cable to connect the Dual Operator
Remote to this connector. The monitor will alarm
should the operator remote cable disconnect from this
connector.
StaticControl.com
B
FRONT
D
BACK
