SCS 724VK2 User Manual

USER GUIDE TB-9013
724 Workstation Monitor
Installation, Operation and Maintenance

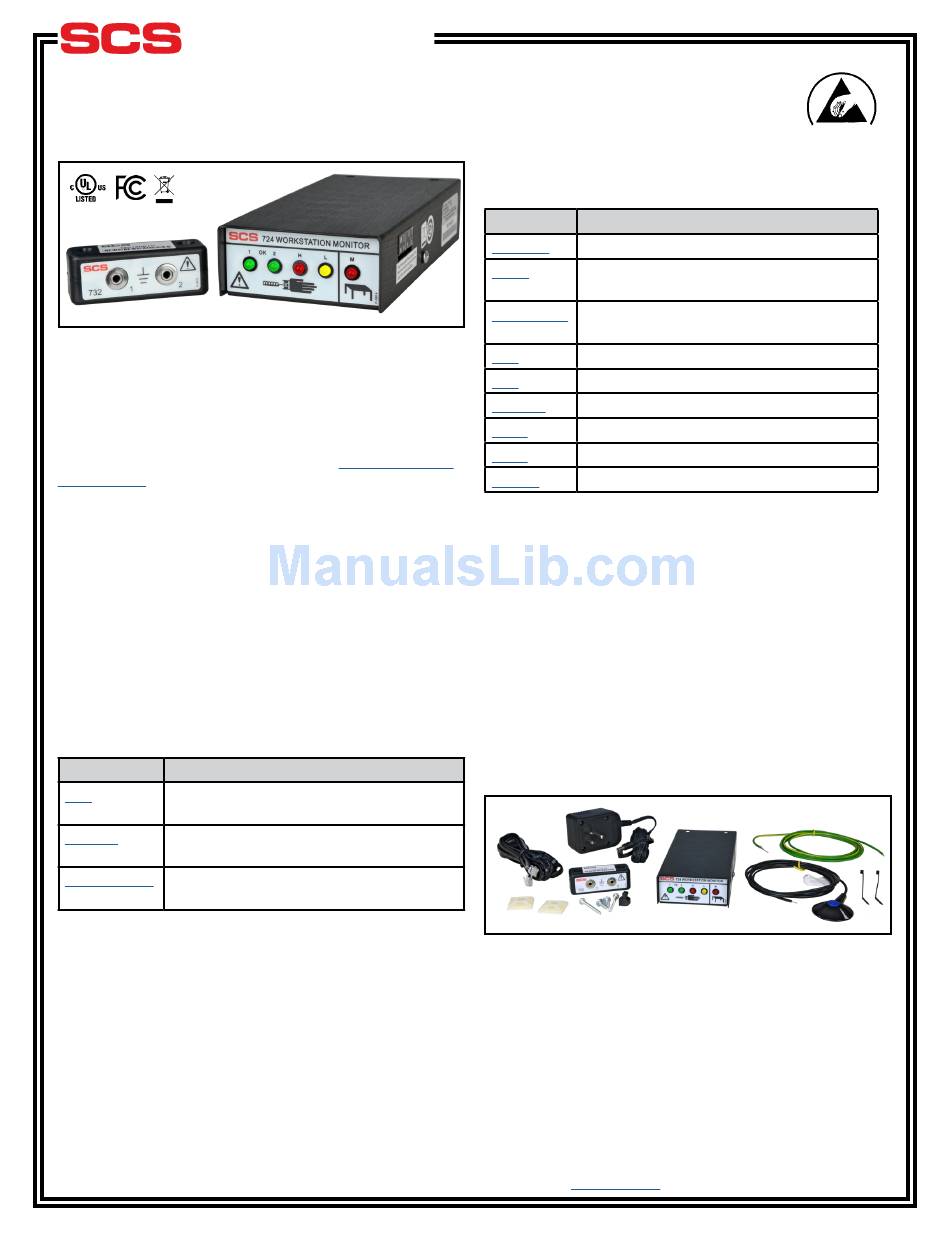

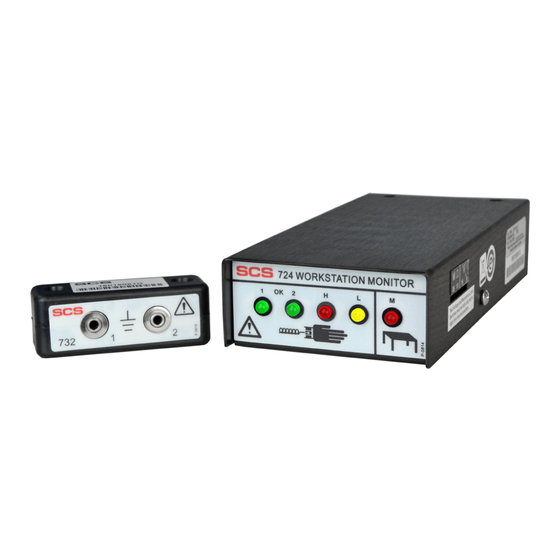

Figure 1. SCS 724 Workstation Monitor
Description
The SCS 724 Workstation Monitor continuously
monitors the path-to-ground integrity of two operators
and one conductive or dissipative worksurface. It has
been designed and tested for use with
Wrist Straps and Worksurface Mats. If the equipment is
used in a manner not specified in these instructions, the
protection provided by the equipment may be impaired.
Use in any other application has not been evaluated by
SCS and may lead to an unsafe condition.
The SCS 724 Workstation Monitor meets
the requirements of ANSI/ESD S20.20 and
recommendations of ESD Handbook ESD TR20.20
which includes "if the products that are being produced
are of such value that knowledge of a continuous,
reliable ground is needed, and then continuous
monitoring should be considered or even required".
The 724 Workstation Monitor is available in three
models:
Item Description
724 724 Workstation Monitor, North America
Power Adapter
724MO 724 Workstation Monitor, No Power
Adapter
724K-WM11 724 Workstation Monitor Kit, with Wrist
Strap and Worksurface Mat
TB-9013 Page 1 of 8 August 2017
SCS Dual-Wire
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
The following accessories are available for the 724
Workstation Monitor:
Item Description
724VK2 Verification Tester
724P Power Adapter, 120VAC Input, 25VDC
Output, North America Plug
724-PSEU Power Adapter, 100-240VAC Input,
24VDC Output, UK & Euro Plugs
732 Dual Operator Remote
733 Operator Remote
770037 Terminal Block, Pack of 5
3057 Standby Jack
2389 Mat Interconnect Cord, 10'
2380D Mat Monitor Cord, with Diode, 6'
Packaging
724 Workstation Monitor, North America
1 724 Workstation Monitor
1 732 Dual Operator Remote
1 Dual Operator Remote Cable
1 Power Adapter, North America
1 Monitor Ground Cord
1 2380D Mat Monitor Cord
1 Two-Wire Terminal Block
2 Long Mounting Screws
2 Short Mounting Screws
2 Cable Tie Mounts
2 Zip Ties
1 Certificate of Calibration
Figure 2. SCS 724 Workstation Monitor packaging
contents
