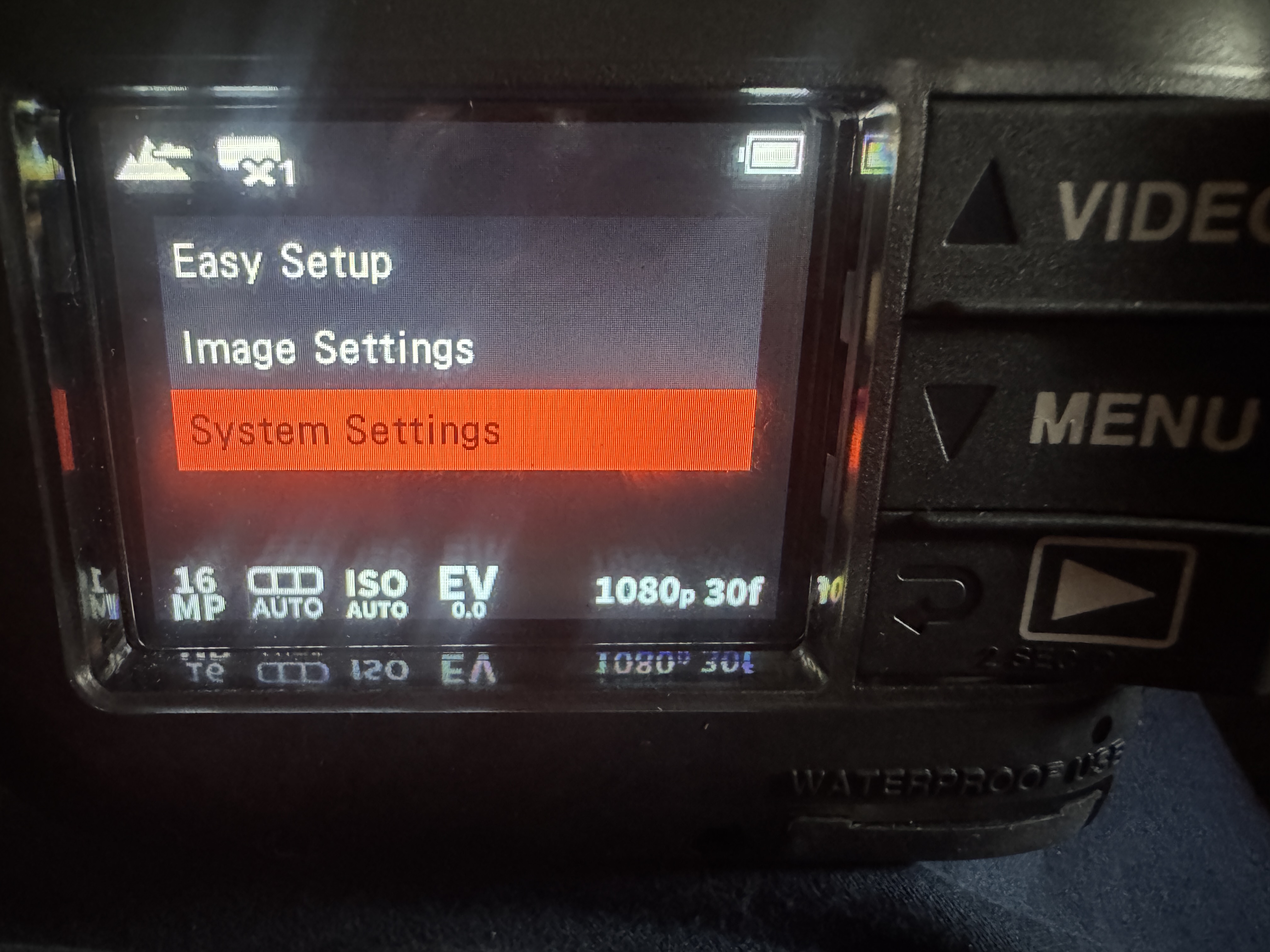

Unable to get wi fi set up turned on in camera. No options on camera . None of the 3 choices have any options when chosen.

User image 6844a88eb2852
0
Kenneth B Gray
May 10, 2025

How can I transfer photos to my PC using WiFi? The red connecter is not working.

0

Subscribe to Our Youtube Channel

Related Manuals for Sealife Micro 3.0

Summary of Contents for Sealife Micro 3.0

  • Page 3 For Español, Deutsch, Français, Italiano, Nederlands and other languages, visit sealife-cameras.com/manuals...

  • Page 4: Table Of Contents

    Record a Video d. Easy Setup e. Playback Pictures and Videos Charge Battery g. Download Pictures to PC WiFi Connection with Sealife Micro 3+ App a. WiFi Connection to Smartphone/Tablet b. Home Screen c. Playback Screen d. Downloading Files...
  • Page 5 Menu Settings a. Easy Setup b. Image Settings c. System Settings Great Underwater Pictures Made Easy VII. Optional Accessories VIII. Care and Maintenance Troubleshooting Spare Parts and Service Specifications XII. FCC Statement XIII. Warranty Statement...

  • Page 6: Package Contents

    Package Contents USB cable (SL51004) (2ft/60cm USB 2-A to Micro-B) Micro 3.0 Camera (SL550) Camera pouch (SL50107) Wrist strap (SL50102) Instruction Manual (SL55008) USB adapter (SL50103)

  • Page 7: Getting To Know Your Camera

    Getting to Know Your Camera Front view 1. Shutter button 2. Optical glass lens port 3. Lens adapter ring (for attaching lens accessories) 4. Wrist strap connection point...

  • Page 8: Rear View

    Rear view: 1. 2.4” TFT color display 2. 1/4-20 tripod accessory mount 3. Waterproof USB contacts (Serial# under USB cover) 4. “Piano Key” control buttons: a. Video (up) b. Menu (down) c. Playback / Power / Back 1-step [in menu] 5.

  • Page 9: Lcd Display: Capture Mode

    LCD Display - Capture Mode: 1. Scene modes 8. ISO value 2. Capture Mode 9. Exposure Value (EV) 3. WiFi On 10. Self-timer or Time Lapse 4. Elapse Timer (H:MM:SS) time interval 5. Battery condition 11. Video resolution size (with 6.

  • Page 10: Lcd Display: Playback Mode

    LCD Display - Playback Mode: Thumbnail view 1. Playback icon - Thumbnail view 2. File type: Photo or Video 3. Folder # (100 to 999) 4. File # (0001 to 9999) 5. Battery condition 6. Thumbnails (4 per page)
  • Page 11 LCD Display - Playback Mode: Single Image view 1. Playback icon - Single image view 2. Folder # (100 to 999) 3. File # (0001 to 9999) 4. Battery condition 5. Elapse time H:MM:SS (video files only) 6. Video status bar (video files only) 7.

  • Page 12: Basic Camera Operation

    Basic Camera Operation III. Power On/Off: Push Power [bottom] button for 2 sec. to power camera ON or OFF.

  • Page 13: Take A Picture

    Take a Picture: Aim, hold camera steady and push shutter button.

  • Page 14: Record A Video

    Record a Video: Push video button to start and stop video recording. Note: During video recording, an elapse record timer will be on the top of • the LCD display. Pushing the shutter button during video record will capture an 8MP •...

  • Page 15: Easy Setup

    Easy Setup: Follow the on-screen guide to set the camera correctly. 1. Push MENU button 2. Push shutter button to select “Easy Setup.” Follow the on-screen guide using the Up (Video) or Down (Menu) buttons to select desired option and Shutter button to confirm setting.

  • Page 16: Playback Pictures And Videos

    Playback Pictures and Videos: 1. Push Playback button to display thumbnail images. 2. Use the Up or Down buttons to scroll through thumbnails.
  • Page 17 3. Push Shutter button to display single images/videos. Note: Push Shutter button to start or pause video playback. • Use Up/Down buttons to increase/decrease video playback speed • To delete ONE or ALL files, select a file in thumbnail view, and •...

  • Page 18: Charge Battery

    Charge Battery: 1. Remove USB cover. 2. Make sure camera and USB contacts are completely dry. Insert USB cable into USB adapter, and insert into waterproof USB port. Important: Camera MUST be completely dry before inserting USB adapter. USB adapter is not waterproof.
  • Page 19 3. Connect other end of the USB cable into any 5V (0.5, 1.0 or 2.0 amp) wall charger, and insert wall charger into outlet. 4. The camera will display PC, Charge and Ext Power. Use the Up or Down buttons to select Charge and push Shutter button to confirm selection.
  • Page 20 5. A battery icon on the display will blink from 1 to 3 bars repeatedly when battery is charging, and 3 solid bars when fully charged. The LED status indicator above the USB will blink red during charge and solid red when fully charged. 6.

  • Page 21: Download Pictures To Pc

    Download pictures to PC: 1. Remove USB cover. 2. Make sure camera and USB contacts are completely dry. Insert USB cable into USB adapter, and insert into the waterproof USB port. Important: Camera MUST be completely dry before inserting USB adapter.
  • Page 22 3. Connect other end of the USB cable into the computer’s USB port.
  • Page 23 4. The camera will display PC, Charge or Ext Power. Use the Up or Down buttons to select PC and push the Shutter button to confirm selection.
  • Page 24 5. The PC connection icon will appear on the display and the LED status indicator above the USB will be solid green. A flashing green LED indicates a connection failure. In that case, thoroughly clean the USB contacts. 6. For Windows, right-click the Windows logo on bottom left of computer and select “File Explorer”.
  • Page 25 / model of your smart phone or tablet. For iPhones or iPads, a special Y-cable is needed to provide power + data to the smartphone/tablet. For details, please refer to Tech Support section of the SeaLife-Cameras.com website. See troubleshooting tips on page 65 if the camera does not •...

  • Page 26: Wifi Connection With Sealife Micro 3+ App

    WiFi Connection to Smartphone or tablet 1. On your iOS or Android device, go to the Apple App Store or Google Play Store and download and install the free "SeaLife Micro 3+" app. For iPads, select “iPhone Only” when searching for...
  • Page 27 2. Go to the camera's System Setting menu and turn WiFi On. Allow about 15-30 seconds for the WiFi transmitter to start-up.
  • Page 28 3. Go to the WiFi setting on your iOS or Android device and select "SeaLife Micro 3 camera [serial #]" from the list of available hotspots. When prompted, enter password 1234567890. Android iOS iPhone/iPad...
  • Page 29 4. Open the SeaLife Micro 3+ app. The app should show a live- stream view from the camera lens and the camera should show "Connected". If not, repeat above steps.
  • Page 30 5. To disconnect WiFi, push the camera’s power (Playback) button. Note: The camera password may be changed. Go to the app's Settings icon (gear icon on bottom right) and select “Change Password”. Follow the on-screen instructions.

  • Page 31: Home Screen

    Home Screen: 1. Playback Gallery 2. Take picture or start/stop video 3. Camera settings menu (gear icon) 4. Picture / Video mode...

  • Page 32: Playback Screen

    Playback Screen: 1. Camera Gallery (files saved on camera) 2. Date pictures/videos were taken (# of files for that day) 3. Video icon indicates files is a video 4. Thumbnails (touch for larger single view) 5. Return to home screen (live view) 6.

  • Page 33: Downloading Files

    Downloading files: Push and hold any thumbnail to open download screen. 1. Select files for a specific date 4. Delete selected files 2. Select ALL files 5. Check mark icon indicates 3. Download selected files files is selected Note: Photos/videos downloaded from the camera to your smartphone/tablet will automatically be saved to the device’s photo gallery.

  • Page 34: Menu Settings

    Menu Settings Easy Setup: A step-by-step guide that helps you set the camera correctly. Simply follow the on-screen guide and select land or underwater, and choose among the available options. Easy Setup options include: 1. Land a. Land (Auto) - For most land photos/videos b.

  • Page 35: Image Settings

    Image Settings: The Image Settings menu contains all the photo and video exposure, color and quality settings. To open Image Settings, push the Menu button, scroll down to Image Settings and push the shutter button to confirm selection. The following describes each of the settings in the order as they appear in the camera menu.
  • Page 36 White Balance (WB) - Applies to photos and videos White balance is a digital color filter that adjusts the color of photos/video under specific lighting environments. If set properly, the photo/video colors should appear natural. For example, a white object should appear white.
  • Page 37 E. Manual – Manually adjust the white balance color for a specific lighting environment using a white or gray card. After selecting Manual, hold a white (or gray) card about 12”/30cm in front of the camera lens, so the card fills up all or most of the image frame.
  • Page 38 The above icon is shown on the LCD display with the corresponding EV value. The EV setting can be adjusted from +2.0 to -2.0 in 0.3 step increments, and 0.0 EV is the factory default setting. ISO - Applies to Photos only ISO adjusts the image sensor’s light sensitivity.
  • Page 39 RAW+JPG - Applies to Photos only When RAW+JPG is turned On, the camera will save one uncompressed RAW (.dng) file and one compressed JPG file. Shooting in RAW allows for the greatest degree of photo editing because the file is unprocessed and uncompressed.
  • Page 40 Capture mode - Applies to Photos only The capture mode sets the quantity of photos captured when pushing the shutter button. One of the following icons is shown on the LCD display. Select from 5 options: A. Single – Push and release the shutter button to capture one photo. B.
  • Page 41 D. Burst – Push and hold the shutter button to capture 10 frames in one second. E. AEB (Auto Exposure Bracketing) - Push and release the shutter button to capture three photos at slightly different exposures. One optimal exposure, one slightly brighter exposure and one slightly darker exposure.
  • Page 42 C. Dive - Uses underwater Deep white balance and single image capture mode suitable for underwater photos/video at depths greater than 25ft/8m. D. Snorkel - : Uses underwater Shallow white balance and single image capture mode suitable for underwater photos/video at depths less than 25ft/8m.
  • Page 43 Quality - Applies to Photos only Quality adjusts how much the photo image file is compressed. The Quality icon is not shown on the LCD display. Select between 3 options: Super Fine - Lowest degree of compression, resulting in best quality and largest file size.
  • Page 44 Picture Resolution Comment 16MP (4:3) Highest full frame resolution. Recommended 14MP (3:2) Highest 3:2 aspect ratio resolution. 12MP (16:9) Highest wide-screen resolution. 9MP (4:3) Medium resolution with 4:3 aspect ratio. 7MP (16:9) Medium resolution with 16:9 aspect ratio. 4mp (4:3) Lowest resolution with 4:3 aspect ratio.
  • Page 45 video recording of faster moving subjects. Recording at 120fps uses a high amount of memory space (See below). 120fps will playback in slow motion at 30fps but playback speed can be increased with most computer video players. Video resolution setting and corresponding file size Video resolution –...
  • Page 46 Metering - Applies to photos and videos This determines the metering area used by the camera to calculate the exposure. No icon is shown on the LCD display for this setting. Average - The entire area of the screen is measured, and the exposure is calculated.
  • Page 47 Photo Time Lapse - Applies to photos only Record a series of still images at pre-set time intervals of 2 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min and 30 min. The following icon is shown on the LCD display with the corresponding time lapse interval.
  • Page 48 Video Time Lapse - Applies to videos only Records video at a slow frame rate of 1, 2, 5, 10, 15, 20 and 30 seconds and plays back at standard 30 frames per second. Useful for recording very slow moving subjects, like sunset, starfish walking, plant growing, etc.
  • Page 49 Video Stabilization - Applies to videos only When turned On, the camera will electronically stabilize video recording to reduce minor shakes and hand movements. It is recommended to keep Video Stabilization turned On. Turning stabilization Off will slightly increase the video field of view and slightly improve battery life.

  • Page 50: System Settings

    System Settings: The System Settings menu contains all other camera settings, like WiFi On/Off, Date/Time, Language, etc. To open System Settings, push the Menu button, scroll down to System Settings and push the shutter button to confirm selection. The following describes each of the settings in the order as they appear in the camera menu.
  • Page 51 System Reset This will restore all camera settings to the original factory default settings and reboot the camera. System Reset will not change the Date/Time or Language settings. Format This will delete all files in the internal memory. It is useful to format memory if internal memory is corrupted by other files saved on the camera.
  • Page 52 Memory Available Shows available memory space in GB. The camera uses about 5GB internal memory for operating system files, so 59 GB is available for storing photos and videos. Microphone The camera’s microphone (mic) is located inside the waterproof enclosure. The mic may be set to OFF, Low, Mid or High. Even when set to High, the audio volume when recording video on land is minimal because of the waterproof design.
  • Page 53 Language Select among English, German, French, Spanish, Italian, Dutch, Russian, Turkish, Simplified Chinese and Traditional Chinese. System This refers to the color encoding system used by televisions. PAL is used mostly in Europe and Asia, while NTSC is used in North America. Selecting PAL will use slower frame rate of 25fps, 50fps or 100fps, while NTSC uses 30fps, 60fps and 100fps.
  • Page 54 Mode, Metering, Color, Self-Timer, RAW+JPG, Upside-Down and WiFi. SSID This is the username used for making wireless connection to a smartphone or tablet. The default name is “SeaLife Micro 3.0” but it can be changed using the SeaLife Micro 3+ app.
  • Page 55 Contains the FCC symbol and FCC ID number. Firmware Version Displays what firmware (software) version is installed on the camera. SeaLife may occasionally release firmware updates if any operation and performance enhancements are discovered. Check the SeaLife Micro 3+ app for any available firmware updates.

  • Page 56: Great Underwater Pictures Made Easy

    Great Pictures Made Easy Taking underwater images is much different than taking land photos or video. Water absorbs light and color, and tiny particles suspended in the water can reduce visibility. Here are the most important tips to taking great pictures underwater: Crystal clear water Crystal clear water is essential for good underwater pictures.
  • Page 57 The most effective way to compensate for lost colors is by using an underwater light specifically designed for photography and video. SeaLife makes a variety of underwater photo-video lights (under Sea Dragon name) that easily mounts to the bottom of the camera. The Flex- Connect system of trays, grips, flexible arms and adapters can click together and apart in seconds without tools, for compact travel.
  • Page 58 SeaLife dealer or the SeaLife website for more details. Pan very slowly or not at all When recording video, keep the camera aimed steady at the subject. Avoid making any sudden or jerky movements. If you pan the camera, move it very, very slowly or you will get seasick watching it later.
  • Page 59 Ask your local SeaLife dive dealer about underwater camera courses Most SeaLife dive dealers offer underwater camera courses which include hands-on training as well as many helpful tips and techniques to underwater videos and photography.

  • Page 60: Optional Accessories

    Dragon Photo/Video lights also offer a consistent and wide beam angle. Left: Micro 3.0 with Sea Dragon 3000 Auto UW photo-video light, including Flex Connect Grip and Micro Tray. Right: Micro 3.0 with two Sea Dragon 2500 UW photo-video lights, including Flex Connect Grips...
  • Page 61 AquaPod (SL912) The SeaLife AquaPod Mini lets you to get your camera close to both land and sea creatures while maintaining your distance, and allows you to get that perfect shot of yourself amidst all of the action. Rotate the camera on the AquaPod Mini to easily take self-portrait images.
  • Page 62 10X Close-up Lens (SL572) For shooting sharp close-ups from 6” to 24” (15cm to 60cm). The lens easily attaches to the lens port above or below water and includes a safety lanyard that connects to the camera.
  • Page 63 Photo Pro Backpack (SL940) Features an 8-liter padded camera/lighting “wet” compartment with 6 adjustable dividers to fit virtually any combination of cameras, lights, lenses and accessories. The compartment’s waterproof liner prevents damp camera gear from leaking into the adjoining dry compartments. Above the larger camera compartment, there is a dry accessory compartment with 5 zippered pockets for storing common items, like cables, spare batteries, chargers, adapters, manuals, smartphone,...

  • Page 64: Care And Maintenance

    Make sure camera and USB contacts are perfectly dry before • charging, PC connection or storage. Do not take apart or attempt to service the camera yourself. • Contact your local authorized SeaLife dealer if the camera becomes damaged and requires service. Opening and tampering...
  • Page 65 The camera’s internal battery maintains 85% of its original power • after 500 recharge cycles and 70% after 1000 recharge cycles. The battery can be replaced by an Authorized SeaLife Service Center. For updates to this manual and troubleshooting information, visit •...

  • Page 66: Troubleshooting

    • adapter from being fully inserted into the camera’s waterproof USB port. Reboot computer and try again. • Inspect the USB cable and replace if damaged. Only use the USB • cable provided with your SeaLife Micro camera. Other micro-B...
  • Page 67 Make sure to maintain at least 12” (30cm) distance between the camera and the subject. For close-up shooting distances of 6” to 24” consider purchasing the SeaLife 10X Close- Up lens (SL572). There are other factors that may contribute to pictures or videos •...
  • Page 68 Downloading SeaLife Micro Cam app for iPad Search App Store for “SeaLife Micro 3+” and select “iPhone Only” • from the dropdown menu on the top left of your iPad. The SeaLife Micro 3+ app is originally designed for iPhones but works equally well with iPad.

  • Page 69: Spare Parts And Service

    Spare Parts and Service Parts - To order spare parts, please contact your local SeaLife dealer. Visit the Dealer Locator at www.sealife-cameras.com to find a dealer near you. US residents can also order spare parts online at www.SealifePartsDirect.com Service - If the camera is not performing to your expectations or...

  • Page 70: Specifications

    Specifications Note: Product specification subject to change without notice. Please visit www.sealife-cameras.com for updates Image Sensor: 16 mega pixel SONY IMX083 1/2.3” CMOS sensor Image resolution/sizes: 16mp (4608x3456 4:3); 14mp (4608x3072 3:2) 12mp (4608x2592 16:9) 9mp (3456x2592 4:3) 7mp (3456x1944 16:9)
  • Page 71 Video Resolution/sizes: 4K at 30fps (frames per second) 1080p at 120 fps 1080p at 60 fps 1080p at 30 fps 720p at 120fps 720p at 60fps 720p at 30fps 480p at 120fps 480p at 60fps 480p at 30fps Audio: Microphone: Yes (mono)* Speaker: Yes (mono) Audio format: ACC (video/ audio compressed together) * Note: Microphone and speaker are sealed inside waterproof enclosure...
  • Page 72 Lens: Aperture F2.8 7 element, fully multi-coated, aspheric optical lens (Confirm qty of elements) Focal length 3.37mm (35mm film equivalent = 19mm) Focus: Fixed-focus lens 15” to Infinity (40cm to infinity) Field of View: 100° diagonal FOV (Land) / 75° diagonal FOV (Underwater) Shutter speed: 1/25 to 1/2000 second LCD:...
  • Page 73 Includes USB cable (Type A to Micro-b) and 5-pin USB adapter 4 hour charging time with 1.5A+ wall charger (8 hours with 0.PC USB output) App: Works with SeaLife Micro 3+ app installed on phones and tablets running Android 6 and up or Apple iOS 12 and up. WiFi:...
  • Page 74 Environment Individually depth tested to 200’ (60 m) Operational to 25,000ft (7600m) above sea level 3ft / 1m Buoyancy: Negative 1.8 oz. (52g) Operating / Storage temp: Land: 23°F to 122°F (-5°C to 50°C) 33°F to 110°F (0.5 °C to 44°C) Underwater: Storage temp -20°F to 140°F(-29°C to 60°C)

  • Page 75: Fcc Statement

    FCC Statement Class B: Section 15.105 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 76 Section 15.21 CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Section 15.19(a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 77 FCC and can be found under the Display Grant section of www.fcc.gov/eot/ea/fccid after searching on FCC ID: 2AAD3AA2G1J1 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users.
  • Page 78 Canada, avis d'Industry Canada (IC) Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
  • Page 79 “Hereby, Pioneer Research, declares that this device Micro 3.0 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.”...
  • Page 80 In the event the original purchaser believes there is a defect in a product, it is recommended that the purchaser contact SeaLife Customer Service or the importer in the country where the product was purchased for troubleshooting advice.
  • Page 81 SeaLife website at www.sealife-cameras.com. Excluded from this warranty are damages caused by abuse, misuse, wear, tear, cosmetic damages, water damage caused by damaged O-ring or O-ring contact surfaces or debris trapped...
  • Page 82 DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, INJURIES TO PERSONS OR PROPERTY, OR DAMAGES FOR WHICH PURCHASER MAY BE LIABLE TO OTHER PERSONS OR ENTITIES, EVEN IF MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND WHETHER THE CLAIM IS FOR BREACH OR REPUDIATION OF CONTRACT, BREACH OF WARRANTY, TORT, NEGLIGENCE OR OTHERWISE.
