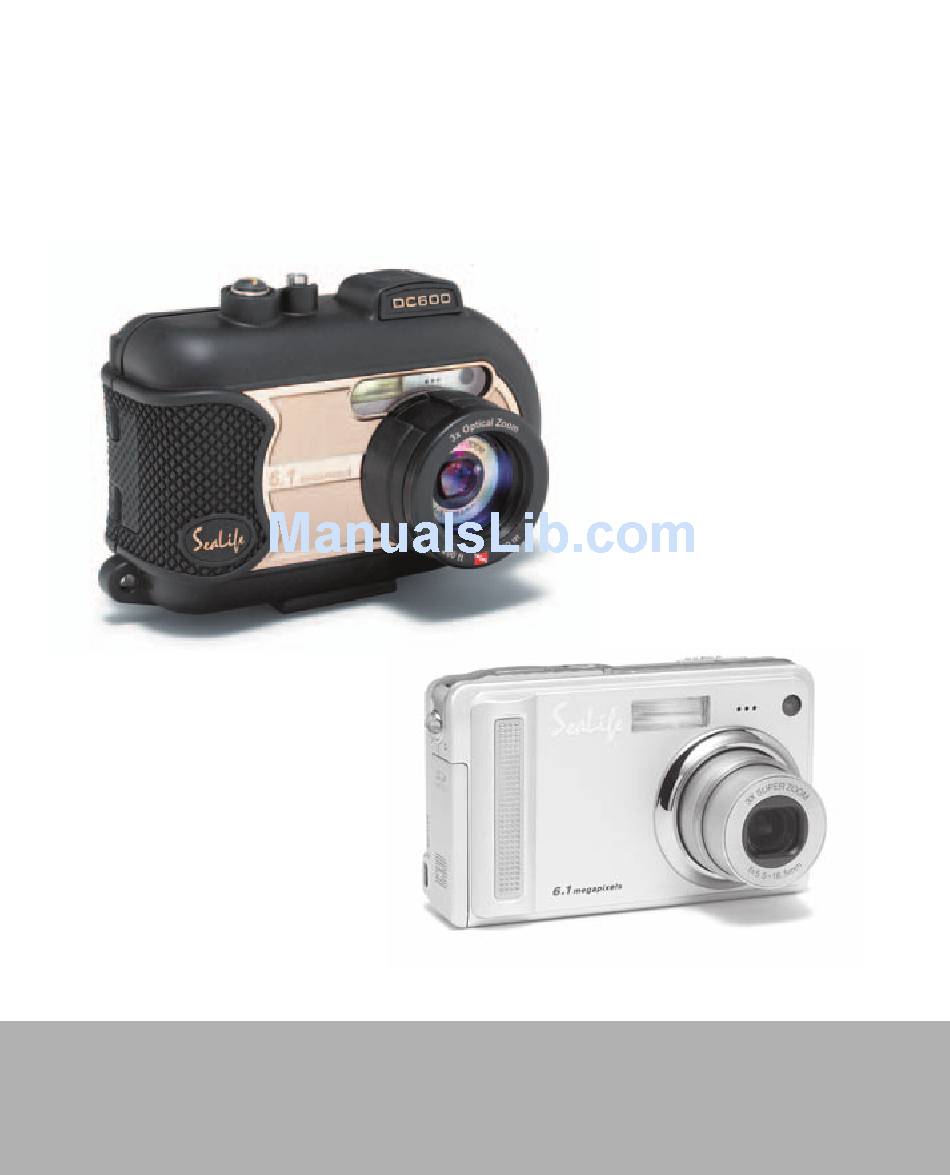

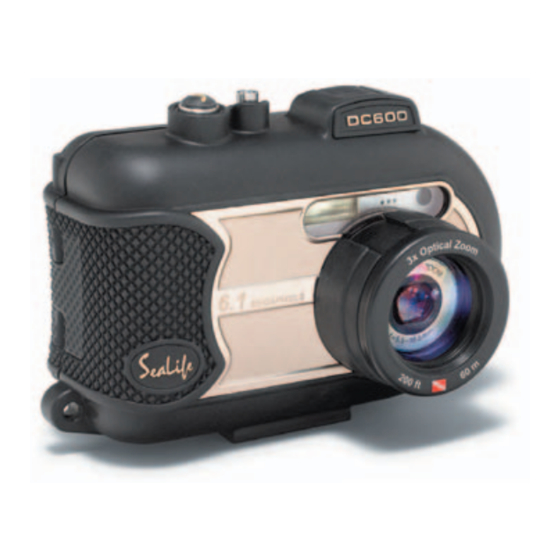

SeaLife DC600
Underwater Camera
Instruction Manual
Go to www.sealife-cameras.com/service/manuals.html for
ENGLISH, FRANCAIS, DEUTSCH, ITALIANO and ESPANOL versions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sealife DC 600

  • Page 1 SeaLife DC600 Underwater Camera Instruction Manual Go to www.sealife-cameras.com/service/manuals.html for ENGLISH, FRANCAIS, DEUTSCH, ITALIANO and ESPANOL versions...
  • Page 3 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 The SeaLife digital camera has an operating system called “firmware” that controls all the camera functions. Just like computer programs are updated from time to time, SeaLife® may also release free firmware updates to further enhance the performance of the camera. Visit the SeaLife website Firmware download center on occasion and check if there are new firmware updates:...
  • Page 5 Safety Instructions Read and understand all Warnings and Cautions before using this product. WARNING If foreign objects or water have entered the camera, turn the power OFF and remove the battery. Continued use in this state might cause fire or electric shock. Consult the store of purchase.
  • Page 6 CAUTION Insert the battery paying careful attention to the polarity (+ or –) of the terminals. Inserting the battery with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. Do not fire the flash close to anyone’s eyes.
  • Page 7: Notes On Battery Usage

    Important Notes on Using Waterproof Housing Before using the waterproof housing, carefully read and strictly observe the detailed instructions described in this manual. Not following the instructions for usage and maintenance may void your warranty. Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Use only the specified battery included with the camera.
  • Page 8: Table Of Contents

    CONTENTS INTRODUCTION Overview Package Contents 11 GETTING TO KNOW THE CAMERA Front View Rear View Control Buttons Status LED Indicator LCD Monitor Icons 17 GETTING STARTED Attaching the Camera Strap Inserting and Removing the Battery Charging the Battery Inserting and Removing the SD Card (Optional Accessory) Turning the Power On/Off Setting the Date and Time Choosing the Language...
  • Page 9 55 MENU OPTIONS Still Image Menu (Capture) Still Image Menu (Function) Video Menu (Capture) Video Menu (Function) Playback Menu Setup Menu (In Photography Mode) Setup Menu (In Playback Mode) 65 CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER 67 TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR COMPUTER Step 1:Installing the USB Driver Step 2:Connecting the Camera to Your Computer...
  • Page 10: Introduction

    INTRODUCTION Overview Let the Land & Sea adventures begin with your new SeaLife DC600 digital camera. Equipped with the latest digital technology means the camera is automatic and easy to use. Here are some of the unique features that you will surely enjoy.
  • Page 11 Video with audio, PC Camera, and voice-recorder support USB connection (USB 2.0 compliant) Still images, video clips, or voice recording files that you have recorded can be downloaded to your computer using the USB cable (A USB driver is required for Win 98 and Win98SE). DPOF functionality DPOF can be used to print your images on a DPOF compatible printer by simply inserting the memory card.
  • Page 12: Package Contents

    SeaLife Digital Flash (SL960D) SeaLife Wide-Angle Lens (SL970) Moisture Muncher anti-fog capsules (SL911) Deluxe travel case Flash Link Optical Cable Connection (SL962) Flash Diffuser (SL968) Accessories and components may vary by retailer. Visit www.sealife-cameras.com for a complete list of available accessories.
  • Page 13: Getting To Know The Camera

    GETTING TO KNOW THE CAMERA Front View 1. Shutter button 2. POWER button 3. Flash 4. Mode switch Still image mode Video mode Playback mode The waterproof housing has button controls for all camera functions except for the mode switch (#4). You can change the camera modes by pushing the display button (#5 next page) when the camera is in Ext.
  • Page 14: Rear View

    Rear View 1. Status LED Indicator 2. T Zoom in button Zoom out button 3. MENU button 4. Strap holder Display button 6. SET /Direction button The Display Button (#5) also changes the camera modes (video, still image or playback) when the camera is in Ext. Flash or scene modes. Erase button 8.
  • Page 15 SET /Direction button button Exposure compensation / Backlight correction button button Focus button button Flash button button Self-timer button button...
  • Page 16 Status LED This describes the color and state of the status LED. During connection to a Color State During photography Green Ready for shot. System ready. Flashing Accessing files in progress. Accessing files in progress. Flash charging in progress.
  • Page 17: Lcd Monitor Icons

    LCD Monitor Icons Photography mode [ 1. Zoom status 2. Voice memo 3. Remaining battery status ] Full battery power ] Medium battery power ] Low battery power ] No battery power 4. Flash icon Auto ] Red-eye Reduction ] Forced Flash ] Suppressed Flash ] Macro Flash ] Far Flash...
  • Page 18 Video mode [ ] Video mode Zoom status Remaining battery status SD memory card indicator (if present) Possible recording time / elapsed time Recording indicator Focus area (When the shutter button is pressed halfway) Focus icon Playback mode [ Playback mode SD memory card indicator (if present) File number...
  • Page 19: Getting Started

    GETTING STARTED Attaching the Camera Strap Attach the camera strap as shown in the illustration. Important: camera strap must be removed when using camera inside waterproof housing. Inserting and Removing the Battery Charge the battery for 8 hours before using the camera. First allow battery fully discharge through normal use before recharging.
  • Page 20: Charging The Battery

    Charging the Battery Use the charger provided to recharge the battery. Make sure that the power of the camera is off and then insert the battery before starting. Place the battery on the charger. Connect the power adaptor to a wall outlet.
  • Page 21: Inserting And Removing The Sd Card (Optional Accessory)

    Inserting and Removing the SD Card (Optional Accessory) The digital camera comes with approx. 10 MB of internal memory, allowing you to store captured still images or movie clips in the digital camera. However, you can also expand the memory capacity by using an optional SD card so that you can store more files.
  • Page 22 Press the Power [ Load the battery and insert an SD card before starting. Press the POWER/ digital still camera turns on. To turn the power off, press the POWER/ button again. The power is turned off automatically when the camera has not been operated for a fixed period time.
  • Page 23: Setting The Date And Time

    Setting the Date and Time The date/time needs to be set if/when: Camera is turned on for the first time. Camera is turned on after leaving the camera without the battery for an extended period of time. Follow the steps below to set the current date and time. 1.
  • Page 24: Choosing The Language

    Choosing the Language Specify in which language menus and messages are to be displayed on the LCD monitor. Slide the mode switch to [ Press the MENU button and select [Setup] menu with the Select [Language] with the and press the SET button. The Language setting screen will be displayed.
  • Page 25: Formatting The Sd Card Or Internal Memory

    Formatting the SD Card or Internal Memory This utility formats the internal memory (or memory card) and erases all stored images and data. Slide the mode switch to [ Press the MENU button and select [Setup] menu with button. Select [Format] with the then press the SET button.
  • Page 26: Setting Image Resolution And Quality

    Setting Image Resolution and Quality Resolution and quality settings determine the pixel size (dimension), image file size, and compression ratio for your images. These settings affect the number of images that can be stored. As you get to know the camera, it is recommended that you try each quality and resolution setting to get an appreciation for the effects that these settings will have on your images.
  • Page 27: Possible Number Of Shots (Still Image)

    Possible number of shots (still image) The table shows the approximate shots that you can capture at each setting based on the capacity of the internal memory and the SD card. 10 MB Image Quality Internal size Memory Fine Standard Economy 2848 X 2136 Fine...
  • Page 28: Photography Mode

    PHOTOGRAPHY MODE Still Image Mode Your camera is equipped with a 2.5” LTPS color LCD monitor to help you compose images, playback recorded images/movie clips or adjust menu settings. Press the POWER/ power on. Slide the mode switch to [ Compose your image in the LCD monitor.
  • Page 29: Using The Optical Zoom

    Recording Voice Memos A voice memo can be recorded once for 30 seconds at still image mode immediately following a still image captured. Slide the mode switch to [ Press the MENU button, and select the [Function] menu with the [Function] menu is displayed.
  • Page 30: Using The Digital Zoom

    Using the Digital Zoom Using a combination of 3 times optical zoom and 4 times digital zoom permits zoom photography of up to 12 times to suit the subject and the distance. The more an image is enlarged with digital zoom, the more pixelated (grainier) the image will appear. Slide the mode switch to [ To enable the digital zoom: a.
  • Page 31: Setting The Flash

    Setting the Flash Set the flash for capturing images. The flash firing mode can be set to suit for the photographic conditions. Slide the mode switch to [ Toggle the button to select the desired flash mode. Scene Mode Program AE Panorama Portrait Landscape...
  • Page 32 The available flash settings in different photography modes: Flash mode ] Auto ]Red-eye Reduction ]Forced Flash ]Suppressed Flash ]Macro Flash ]Far Flash Description The flash fires automatically to suit the photographic conditions. Use this mode to reduce the red-eye phenomenon when you want to capture natural-looking images of people and animals in low-light conditions.
  • Page 33: Using The Flash In External Flash Mode

    When the camera’s Scene mode is set to Ext Flash, the camera’s flash is set to Forced Flash and will always fire. When the camera’s flash fires, it will automatically fire the optional External Flash accessory. Refer to the SeaLife Flash instruction manual for detailed operating instructions about the optional external flash accessory.
  • Page 34: Setting The Focus/Manual Five Focus Areas

    Setting the Focus Images can be captured with the distance to the subject set by auto focus, [ macro or [ ] infinity. Slide the mode switch to [ Toggle the desired focus mode. The table below will help you choose the appropriate focus mode: Focus mode [ Blank] Auto Focus Macro...
  • Page 35: Setting The Self-Timer

    Setting the Self-timer This setting allows images to be captured with the self-timer. Slide the mode switch to [ Toggle the button to select the setting. For the [ ] mode. 10s] 10 sec. OFF [ 10+2s ] 10+2 sec. For the [ ] mode.
  • Page 36: Exposure Compensation/Backlight Correction

    Exposure Compensation/Backlight Correction The camera’s Exposure Compensation can be adjusted to make the image brighter (+) or darker (-). This setting is used when a suitable brightness (exposure) cannot otherwise be obtained in circumstance where the difference in brightness between the subject and the background (the contrast) is large, or when the subject that you want to photograph is very small within the screen.
  • Page 37: Ae-Lock/Setting The Scene Mode

    AE-LOCK In this mode, you can get the exposure value you want. AE-LOCK settings can be combined with macro and spot metering to get better effect. Press the POWER button to turn the power on. Slide the mode switch to [ Compose the image on the monitor screen to get the exposure value you want.
  • Page 38: Landscape

    The table below will help you choose the appropriate scene mode: Scene mode [ P ] Program AE ] Panorama ] Portrait ] Landscape ] Sport ] Night ] Candlelight [ TEXT ] Text ] Sunset ] Sunrise ] Splash Water ] Firework Description Select this mode to capture images without having...
  • Page 39: Setting The Panorama Mode

    Scene mode Description ] Sea Select this mode when you want to capture underwater photos when NOT using external flash accessory. Ext. Flash Select this mode when you want to capture underwater photos when using external flash accessory. ] Spy For continuous pictures at set time intervals.
  • Page 40: About Spy Mode

    About Spy Mode This mode is used to capture continuous images at a preselected time interval. This mode is useful for taking a sequence of images, like a sunrise or sunset, and later selecting the best image. It is also useful for taking a series of pictures without being discovered by the subject.
  • Page 41: Using The Photo Frame Function

    Using the Photo Frame Function You can set your desired photo frame before shooting. There are 17 types of frame- like borders already stored in the camera.1. turn your camera on by pressing the POWER/ 2. Press the MENU button, then select the [Function] menu with the 3.
  • Page 42: Playback Mode

    ] PLAYBACK MODE Playing Back Still Images You can play back the still images on an LCD monitor. 1. Slide the mode switch to [ The last image appears on the screen. 2. The images can be viewed in reverse or viewed forward order with the buttons.
  • Page 43: Playing Back Video Clips

    Playing Back Video Clips You can play back video clips recorded on the LCD monitor. You can also play back sound if you recording with the audio. 1. Slide the mode switch to [ The last image appears on the screen. 2.
  • Page 44: Playing Back Still Images/Video Clips On Tv

    Playing Back Still Images/Video Clips on TV You can also play back your images on TV screen. Before connecting to any video devices, make sure to select NTSC/PAL to match the broadcast standard of the video equipment you are going to connect to the camera. 1.
  • Page 45: Attaching Voice Memos

    Attaching Voice Memos A maximum of 30 seconds of audio can be recorded like a memo for photographed still images. The voice memo can be recorded only once. 1. Slide the mode switch to [ The last image appears on the screen. 2.
  • Page 46: Thumbnail Display

    Thumbnail Display This function allows you to view 9 thumbnail images on the LCD monitor at the same time, which can quickly search for the image that you want. 1. Slide the mode switch to [ The last image appears on the screen. 2.
  • Page 47: Zoom Playback

    Zoom Playback This mode also allows you to enlarge your image on the selected portion of the image to check for small details. 1. Slide the mode switch to [ 2. Press the buttons to select the image you want to enlarge. You can also select the image you want to enlarge from the thumbnail display.
  • Page 48: Slideshow Display

    Slideshow Display The slideshow function enables you to playback your still images automatically in order one image at a time. 1. Slide the mode switch to [ 2. Press the MENU button. The playback menu is displayed. 3. Select [Slide Show] with the buttons, and press the SET button.
  • Page 49: Protecting Images

    Protecting Images Set the data to read-only to prevent images from being erased by mistake. Protecting Images 1. Slide the mode switch to [ 2. Select the image that you want to protect with the 3. Press the MENU button. The playback menu is displayed.
  • Page 50 Cancelling the Protection To cancel protection for only one image, display the image that you want to remove the image protection. 1. Select [Protect] with the and press the SET button. 2. Select [Single] or [All] with the SET button. 3.
  • Page 51: Dpof Settings

    DPOF Settings DPOF is the abbreviation for Digital Print Order Format, which allows you to embed printing information on your memory card. You can select the images to be printed and how many prints to make with the DPOF menu in the camera and insert the memory card to the card compatible printer.
  • Page 52 8. Select [Date] with the The date setting screen appears. 9. Select date to [On] or [Off] with the button. On: The date of the photograph will also be printed. Off: The date of the photograph will not be printed. 10.
  • Page 53: Resizing An Image (Resize)

    Resizing an Image (Resize) Resizes a previously saved image. Resizing replaces the original image with the changed image. Only resizing to the smaller size is available. The following images cannot be resized: When the image size is set to the least one (640 x 480), the resize function is not available.
  • Page 54: Compressing An Image (Quality Change)

    Compressing an Image (Quality Change) Changes the quality (compression rate) of a recoded image. Compresses images down to half of their size or more, overwrites an old size images with a newly compressed image. Only quality changing to the lower quality level is available. The following images cannot be resized: (Economy) quality images Images captured with other camera...
  • Page 55: 53 [ ] Erasing Images

    ] Erasing Images Erasing at Photography Mode (Quick Delete Function) Quick delete function enables you to erase the image during photography. The quick delete menu provides you to directly erase the last image without further settings. 1. Slide the mode switch to [ 2.
  • Page 56: Erasing Selected Images

    Even if you capture images after erasing an image, the file number is assigned the next number of the very last one before the image was erased. Erasing selected images This erases a number of selected images. 1. Slide the mode switch to [ 2.
  • Page 57: Menu Options

    MENU OPTIONS Still Image Menu (Capture) This menu is for the basic settings to be used when capturing still images. 1. Slide the mode switch to [ 2. Press the MENU button. [Capture] menu is displayed. 3. Select the desired [Capture] option item with the press the SET button to enter its respective menu.
  • Page 58: Scene Mode

    Scene Mode Refer to section in this manual titled “Setting the Scene Mode” for further details. Size This sets the size of the image that will be captured. ] 2848 x 2136 ] 2272 x 1704 ] 1600 x 1200 ] 640 x 480 Quality This sets the quality (compression rate) at which the image is captured.
  • Page 59: White Balance

    White Balance This sets the white balance capturing under a variety of lighting conditions and permits images to be captured that approach the conditions that are seen by the human eye. [ Blank ] Auto Incandescent Fluorescent 1 Fluorescent 2 Day Light Cloudy Manual...
  • Page 60: Capture Mode

    Still Image Menu (Function) 1. Slide the mode switch to [ 2. Press the MENU button, and select the [Function] menu with the button. [Function] menu is displayed. 3. Select the desired [Function] option item with the press the SET button to enter its respective menu.
  • Page 61: Digital Zoom

    LCD Bright. Select a brightness level for the LCD monitor. The LCD becomes brighter with the button and darker with the adjustment range is from -5 to +5. Digital Zoom This sets whether or not to use digital zoom at the time of photography. * On / Off Preview This sets whether or not to display the captured image on the screen...
  • Page 62: Video Menu (Capture)

    Video Menu (Capture) This menu is for the basic settings to be used when recording video clips. 1. Slide the mode switch to [ 2. Press the MENU button. [Capture] menu is displayed. 3. Select the desired [Capture] option item with the press the SET button to enter its respective menu.
  • Page 63: Video Menu (Function)

    Video Menu (Function) 1. Slide the mode switch to [ 2. Press the MENU button, and select the [Function] menu with the button. [Function] menu is displayed. 3. Select the desired [Function] option item with the press the SET button to enter its respective menu.
  • Page 64: Copy To Card

    Playback Menu In the [ ] mode, set which settings are to be used for playback. 1. Slide the mode switch to [ 2. Press the MENU button. The playback menu is displayed. 3. Select the desired option item with buttons, and press the SET button to enter its respective menu.
  • Page 65: Setup Menu (In Photography Mode)

    Setup Menu (In Photography Mode) Set your camera’s operating environment. Slide the mode switch to [ Press the MENU button, and select the [Setup] menu with the [Setup] menu is displayed. Select the desired [Setup] option item with buttons, and press the to enter its respective menu.
  • Page 66: Setup Menu (In Playback Mode)

    Setup Menu (In Playback Mode) 1. Slide the mode switch to [ 2. Press the MENU button, and select the [Setup] menu with the [Setup] menu is displayed. 3. Select the desired [Setup] option item with the buttons, and press the SET button to enter its respective menu.
  • Page 67: Connecting To A Pictbridge Compliant Printer

    CONNECTING TO A PICTBRIDGE COMPLIANT PRINTER If a printer that supports PictBridge is available, images can be printed by connecting the digital still camera directly to the PictBridge-compatible printer without using a computer. Connecting the camera to the printer Turn on the camera. Slide the mode switch to [ Press the MENU button, and select [Setup] menu with the...
  • Page 68 2. If you select [Images] in the previous step, the figure shown on the right hand side will appear. Select [Single] or [All] with the buttons, and press the SET button. [Single]: Select to print one specific image. [All]: Select to print all images. [Exit]: Exit from Images option.
  • Page 69: Transferring Recorded Images And Videos To Your Computer

    TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR COMPUTER To transfer images/video clips from the camera to your computer, follow these steps: Step 1: Installing the USB driver (Windows 98 users only) Step 2: Connecting the camera to your computer Step 3: Downloading images and video files System Requirements (Windows) Pentium 166 MHz or higher Windows 98/98SE/Me/2000/XP...
  • Page 70: Step 2: Connecting The Camera To Your Computer

    Step 2: Connecting the Camera to Your Computer Connect one end of the USB cable to the USB port of the camera. Connect the other end of the USB cable to an available USB port on your computer. From the Windows desktop, double click on “My Computer”.
  • Page 71: Step 3: Downloading Images And Video Files

    Step 3: Downloading Images and Video Files When the camera is turned on and connected to your computer, it is considered to be a disk drive, just like a floppy disk or CD. You can download (transfer) images by copying them from the “Removable disk” (“untitled”...
  • Page 72: Using The Digital Camera As A Pc Camera

    USING THE DIGITAL CAMERA AS A PC CAMERA Your digital camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the digital camera for videoconferencing, your computer system must...
  • Page 73: Step 2: Connecting The Digital Still Camera To Your Computer As A Pc Camera

    Step 2: Connecting the digital still camera to your computer as a PC camera 1. Turn on the camera. 2. Slide the mode switch to [ 3. Press the MENU button, and select [Setup] menu with the 4. Select [USB] with the 5.
  • Page 74: Editing Software Installation

    EDITING SOFTWARE INSTALLATION Installing Photo Explorer Ulead Photo Explorer provides a simple and efficient way to transfer, browse, ® modify and distribute digital media. Acquire photos, video or sound clips from various digital device types and easily browse or add personal descriptions; make timely modifications;...
  • Page 75: Installing Cool 360

    To install Photo Express: 1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears. 2. Click “INSTALL PHOTO EXPRESS 5.0”. Follow the on-screen instructions to complete the installation. For more information about the operation of Photo Express application software, refer to its respective help documentation.
  • Page 76: Camera Specifications

    CAMERA SPECIFICATIONS Item Image Sensor Effective pixels Image size Image quality Recording media Compression format JPEG (Still image), Motion JPEG (AVI) File format Lens Focus range LCD monitor Self-timer Exposure compensation -2.0EV~ +2.0EV (in 0.3EV increments) White balance Scene mode Interface Power Dimension...
  • Page 77: Power Supply

    TROUBLESHOOTING Refer to the symptoms and solutions listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center. Power Supply Symptom Cause The battery is not loaded. The power does not The battery is exhausted. come on.
  • Page 78 Shooting Symptom Even if I press the shutter button, the camera does not shoot. Images do not appear on the LCD monitor. Although it is set to Auto Focus, it does not focus. Cause The battery is running low. The power is not on. The camera is not in shooting mode.
  • Page 79 Symptom Cause The flash does not The flash is set to off. fire. The flash is not ready or charged. The flash is set to Auto and there is enough surrounding light. Even though the flash The distance to the subject fired, the image is is greater than flash dark.
  • Page 80 Playback Symptom Cannot playback. The contents of memory card cannot be played back. Files cannot be deleted. Cannot format a memory card. The playback image is dark though I used the flash. Cause It is not set to playback mode. You played back a memory card that was not formatted by this device.
  • Page 81: Other Problems

    Other Problems Symptom Cause The battery is running low. Even when the camera’s buttons are pressed, it does not operate. Camera malfunction. The date and time is The correct date and time is wrong. not set. The date set has The battery is removed with disappeared.
  • Page 82: Underwater Housing Instructions

    Soft rubber grips Fully-multi coated optical glass lens port for high light transmission. Accessory mount for adding one (or two) external flash(es) Snap-on lens port to quickly attach SeaLife Wide Angle Lens Advanced control buttons to access all camera settings.
  • Page 83: Must Do For Underwater Housing

    Carefully follow O-ring removal and installation instructions contained in this manual. Replace O-ring every year to ensure proper seal. Only use approved SeaLife O-ring designed for the DC600. Soak and rinse waterproof housing in fresh water after each use. Use clean, soft cloth to dry housing.
  • Page 84 Important: Carefully clean and inspect O-ring and O-ring contact surfaces before each underwater use in accordance with instructions provided If O-ring needs to be replaced, contact your local authorized SeaLife dealer or the SeaLife Service Center at (856) 866-9191 or email - service@sealife-cameras.com IMPORTANT: Do NOT lubricate O-ring...
  • Page 85: Maintaining A Waterproof Seal

    Maintaining a waterproof seal Every SeaLife housing is tested for quality and a waterproof seal. It is your responsibility to properly care for the O-ring and O-ring contact surfaces to maintain a waterproof seal. Carefully follow these important O-ring care instructions.
  • Page 86: Quick Waterproof Test

    No leaks should be present. If the housing shows signs of leaking, do not use the housing and contact your local authorized SeaLife Dealer of the SeaLife Service Center for repairs. SeaLife Service Center, 97 Foster Road, Moorestown, NJ 08057...
  • Page 87: How To Install And Remove O-Ring

    HOW TO INSTALL AND REMOVE O-RING To Install O-ring: Step 1: O-ring and O-ring groove must be completely clean before installing O-ring. Step 2: Push O-ring into groove as shown being careful not to twist or roll O-ring. Step 3: Use two fingers to push last part of O-ring into groove. Step 4: Carefully close housing to firmly seat O-ring and open housing again to inspect that O-ring is completely seated into groove.
  • Page 88 To Remove O-ring: Step 1: Push O-ring along groove until it lifts. Step 2: Gently lift and remove O-ring from its groove.
  • Page 89: How To Open And Close Waterproof Housing

    HOW TO OPEN AND CLOSE WATERPROOF HOUSING Step 1: Push in locking tab to open latch. Step 2: Open latch all the way to lift and release latch from housing. Step 3: Open Housing as shown so inner camera does not fall out.
  • Page 90 Step 4: Close housing and push down on latch as shown to firmly seat latch into housing. Step 5: Push down latch until locking tab clicks into place.
  • Page 91: Installing The Flash Link Optical Cable Adapter

    Digital Flash (item # SL960D – optional accessory). It is strongly recommended to purchase the Flash Link optical cable accessory if you are using a SeaLife external Flash to ensure it fires all the time. Step 1: Insert end of Flash Link optical cable into one of the adapter holes as shown.
  • Page 92 Step 3: Attach adapter around housing lens port so that it is seated into the flash window recess. If using two Flash Links, attach other cable in second hole and follow above instructions. Secure optical cable to Flash arm using velcro® ties (included with Flash Link cable).
  • Page 93: How To Set-Up Waterproof Housing

    2. Carefully inspect O-ring for damage and make sure O-ring is firmly seated in its groove. If O-ring is damaged and requires replacement, contact your local authorized SeaLife dealer or SeaLife Service Center. 3. Clean the housing glass lens port using clean, dry cotton cloth. It is recommended to apply anti-fog solution to the inside surface of the housing lens port.
  • Page 94 7. Do not allow any water droplets to get inside housing. This may cause the inside of the housing to fog. 8. Close housing lid tightly. Make sure there are no obstructions that prevent the housing from closing. Make sure lid is tightly pressed into housing.
  • Page 95: Using And Cleaning The Underwater Housing And Camera

    Using and cleaning the underwater housing and camera Entering the water with housing 1. Do not jump into the water with camera in your hand. Have someone hand you the camera after you have entered the water. 2. For tips on taking pictures, see “Great Underwater Pictures Made Easy” on page 94.
  • Page 96: Great Underwater Pictures Made Easy

    2. Never store camera or housing in direct sunlight or in a dark damp area. The airtight, unbreakable SeaLife ReefMaster Dry Case (Item # SL930) is highly recommended along with 1-oz bags of SeaLife Moisture Muncher Desiccant (Item # M101) for travel and storage.
  • Page 97 6. Use Wide Angle Lens for dramatic pictures. The SeaLife Wide Angle lens allow you to get close to your subject for images full of colors and razor-sharp details. With the 24mm wide-angle lens you fit a close group of 4 dive buddies or a 6-foot (180 cm) shark at a shooting distance of 6 feet (180 cm).
  • Page 98 Shutter lag time is that annoying delay between pushing the shutter button and image capture. The camera uses this time to accurately measure the shooting distance for a sharp in-focus picture. For fast moving sealife, this can be a problem, but there is an easy solution. To minimize the shutter lag time we suggest keeping the camera set to landscape (infinity) focus [ ].
  • Page 99: Troubleshooting Guide

    Carefully follow O-ring care instructions provided in this manual. Set camera to Ext Flash mode Refer to External Flash Mode accessory manual or visit www.sealife-cameras.com website for detailed troubleshooting information Refer to Flash Link accessory manual or visit www.sealife-cameras.com website for detailed...
  • Page 100 Summer 2006 to ensure the external flash accessory (item # SL960 or SL960D) fires all the time. The SeaLife Service Center in your country offers comprehensive service and can make all necessary updates and modification to the External Flash Accessory.
  • Page 101 Shooting distance not to exceed 1/10 of visibility. Camera did not establish correct focus setting. Select landscape (infinity) focus Move closer to subject (2’ to 6’). Use SeaLife accessory Flash to illuminate subject and improve color and brightness..
  • Page 102: Housing Specifications

    Housing Specifications Underwater Housing: Depth: Individual depth tested to 200’ (60m) Controls: Control buttons for power, Shutter, Zoom, LCD, Menu, 4 navigation buttons, SET and Delete buttons O-ring: Silicone Lens port: Fully multi-coated optical glass lens port with snap- on ring to adapt accessory lenses. LCD: Optical grade polycarbonate window Tripod Mount:...
  • Page 104 SL16024 November 2006 9M739-4009-01...
