Summary of Contents for Gold Note TUBE-1012

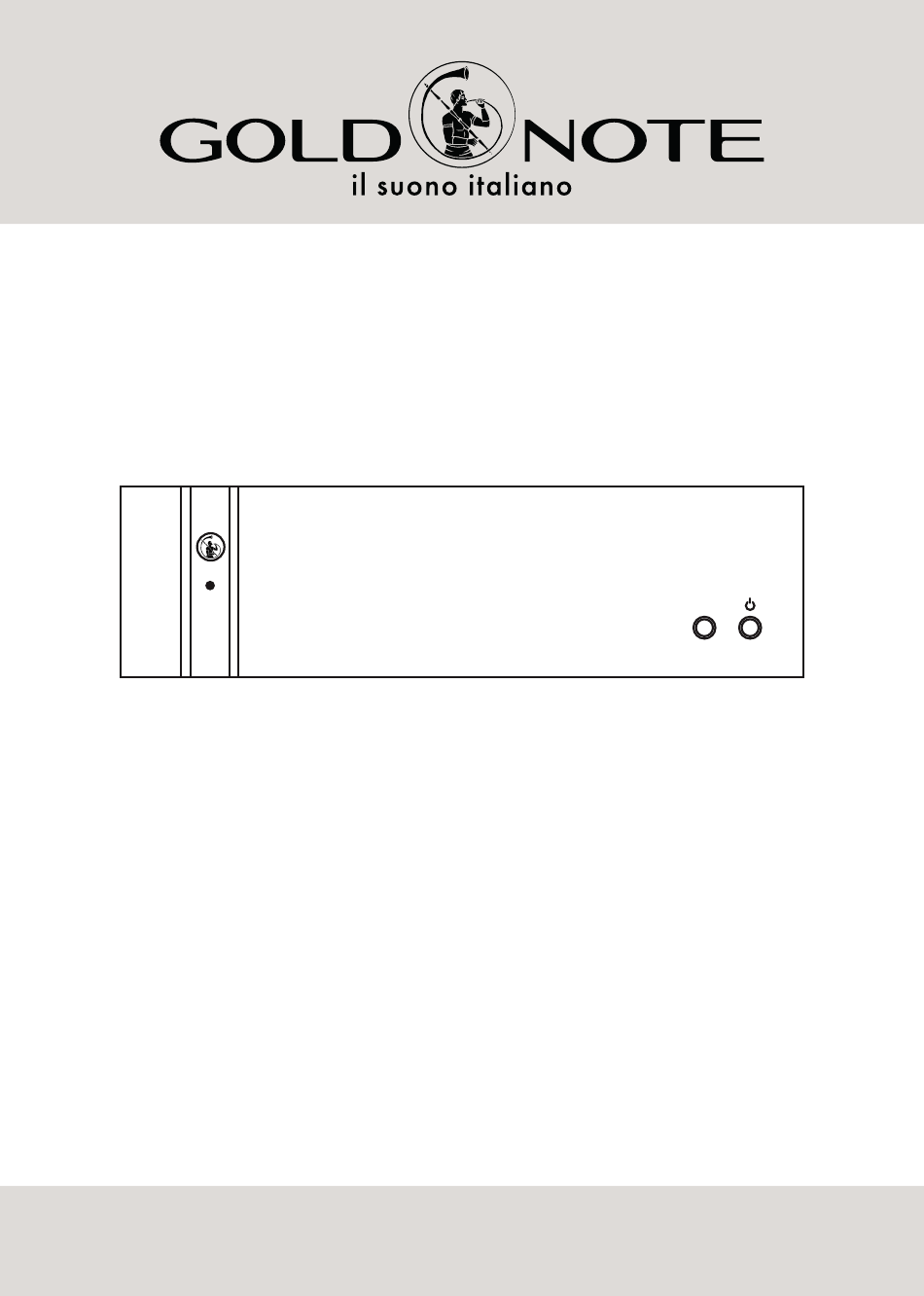

- Page 1 GOLD NOTE TUBE-1012 /1006 VALVES TUBE OUTPUT STAGE OWNERʼS MANUAL...
-
Page 3: Table Of Contents
INDEX INDEX PACKAGE CONTENT..........................P. 3 TECHNICAL SPECIFICATIONS ........................ P. 4 FRONT AND REAR PANELS........................P. 5 USING TUBE-1012 AND TUBE-1006...................... P. 6 WARRANTY AND SERVICE........................P. 7 TROUBLESHOOTING..........................P. 8 IMPORTANT SAFETY INFORMATION ...................... P. 9... -
Page 4: Package Content
PACKAGE CONTENT • GOLD NOTE TUBE-1012/1006 • 1x AC power cord • 1x GN TUBE connection cable • Owner’s manual... -
Page 5: Technical Specifications
Power consumption: TUBE-1012 80W Power consumption: TUBE-1006 50W TUBE-1006: 2x Gold Note custom made transformer TUBE-1012: 3x Gold Note custom made transformer Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters Fuse 220/240V 2A F/T Fuse 100/120V 3,15A F/T... -
Page 6: Front And Rear Panels
LINE INPUTS 4. XLR balanced audio input 5. RCA unbalanced audio input GN LINK 6. OUT / IN to synchronise the unit with other Gold Note units in MASTER/SLAVE mode POWER 7. Master Switch AC POWER PLUG 8. AC Power plug with IEC fuse (2A) -
Page 7: Using Tube-1012 And Tube-1006
Gold Note unit (master) to the TUBE-1012/TUBE-1006 (slave) through the GN LINK IN connector found on the rear panel. If you want the TUBE-1012/TUBE-1006 to act as the master and control other Gold Note units, use the GN LINK OUT connector instead. -
Page 8: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 9: Troubleshooting
Substitute the fuse with one of the same value TUBE-1012/1006 LED is ON The unit is heating Wait for the unit to be ready - about 30 NOT PLAYING For spare parts visit the official Gold Note store at: www.akamaiaudio.it/... -
Page 10: Important Safety Information
Protect the product from rain, humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 11 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Page 12 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
