Industrial Registers

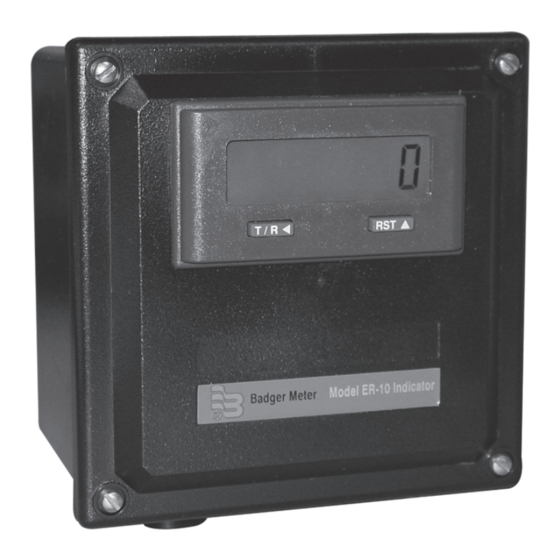

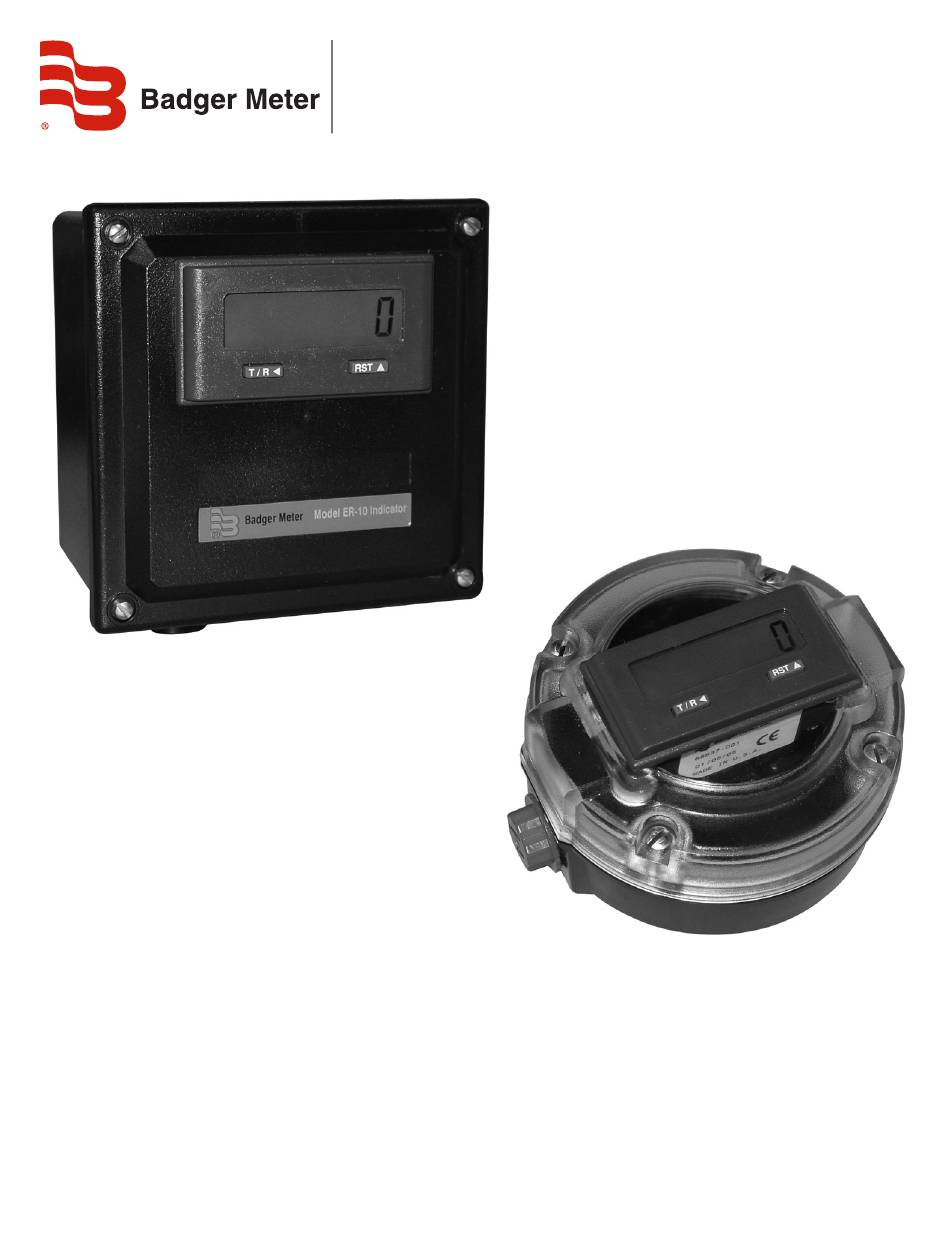

Models ER-10, ER-10/R & ER-10H Digital Resettable Totalizer
and Rate of Flow Indicator
ER-10
ER-10H
For Portable Large Meter Tester Only
This product contains Lithium batteries.
Read this manual before attempting any
installation, wiring or operation.
User Manual
REG-UM-00471-EN-07 (September 2017)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Badger Meter ER-10

Summary of Contents for Badger Meter ER-10

  • Page 1 Industrial Registers Models ER-10, ER-10/R & ER-10H Digital Resettable Totalizer and Rate of Flow Indicator ER-10 ER-10H For Portable Large Meter Tester Only This product contains Lithium batteries. Read this manual before attempting any installation, wiring or operation. User Manual...
  • Page 2 Industrial Registers, Models ER-10, ER-10/R & ER-10H Digital Resettable Totalizer and Rate of Flow Indicator Page ii REG-UM-00471-EN-07 September 2017...

  • Page 3: Table Of Contents

    User Manual CONTENTS About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Product Description .
  • Page 4 Industrial Registers, Models ER-10, ER-10/R & ER-10H Digital Resettable Totalizer and Rate of Flow Indicator Page iv REG-UM-00471-EN-07 September 2017...

  • Page 5: About This Manual

    PRODUCT DESCRIPTION The ER-10, ER-10/R and ER-10H are external or battery powered electronic registers that display rate of flow and total flow . They have independent programmable scale factors for rate and totalization, allowing you to program these displayed values in different but meaningful engineering units, such as gallons per minute and total gallons .

  • Page 6: Installation

    Battery Installation/Replacement The ER-10, ER-10/R & ER-10H are powered by one 3V Lithium battery each . To replace or install the battery, remove the battery cover by pushing inward and down, in the direction of the arrow . Install the battery in the slot . Once the battery in place, the unit goes into a self-test mode, and all the segments on the LCD display illuminate .

  • Page 7: Wiring Instructions

    ER-10 . Connect the wire coming from the transmitter to the corresponding terminal number for the ER-Series Remote models . Connecting to a generic reed switch To connect a generic reed switch to the ER-10, connect one of the wires to terminal 1 . Connect the remaining wire to terminal 2 .

  • Page 8: Operation

    When you press the Total/Rate key during normal operation, the ER-10 toggles the display between the Flow Total and the Flow Rate . The letter R on the left of the screen indicates that the Flow Rate is being displayed .

  • Page 9: Programming

    Mode 1: Set to 01 .0000 to show reading in 1s; ER-10 has no fixed zeros; One pulse = 1 (ex . 12345678) Set to 10 .0000 to show reading in 10s; ER-10 has one fixed zero; One pulse = 10 (ex . 12345670) Set to 00 .0000 to show reading in 100s;...

  • Page 10: Programming Calculations

    Programming Calculations PROGRAMMING CALCULATIONS Totalizer Programming Totalizer values can be expressed in any engineering unit of measure such as gallons, quarts, or liters . For each unit, a unique scale factor must be programmed . Totalizer scale factor To determine the Totalizer Scale Factor (Program Mode 1), use the following formula: Totalizer Scale Factor = 1/(Transmitter pulses per unit ×...

  • Page 11: Pulse Output Programming

    Programming Calculations Pulse Output Programming The Pulse Output can be programmed for any engineering unit of measure . A Pulse Output Scale Factor must be calculated and programmed (Program Mode 6) using the same formula and procedure as described under the Totalizer Scale Factor (Program Mode 1) .

  • Page 12: Troubleshooting

    Troubleshooting TROUBLESHOOTING Problem Possible Causes Remedies Screen is blank Battery is dead . Replace battery . Will not count in totalizer mode 1 . Improperly programmed . 1 . Check programming . 2 . Broken or defective wiring . 2 . Check wiring . 3 .

  • Page 13: Field Calibration

    Field Calibration FIELD CALIBRATION Field calibration consists of determining the exact transmitter pulse output per unit of measure for your particular meter/ transmitter combination and then using this value as the transmitter pulse output value when calculating the counter and time base values .

  • Page 14: Replacing The Meter's Sensor Pickup

    . 5 . Twist the drop pipe in a counterclockwise direction to remove it and the ER-10 unit from the adapter assembly . 6 . Attach the new adapter assembly to the drop pipe and ER-10 unit .

  • Page 15: Specifications

    Specifications SPECIFICATIONS Power Rate Indicator Internal battery 3V, Lithium Digits 4/5, (4 calculated, 5 displayed with fixed zero in LSD) Battery life 5 years expectancy Scaler range 0 .001…9999 Replacement part 65765-001 Decimal point 5 positions, programmable External DC power 10…30V DC Accuracy +/-0 .2% source...
  • Page 16 The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882 Europe, Eastern Europe Branch Office (for Poland, Latvia, Lithuania, Estonia, Ukraine, Belarus) | Badger Meter Europe | ul.
