OEM Manual – CUBO

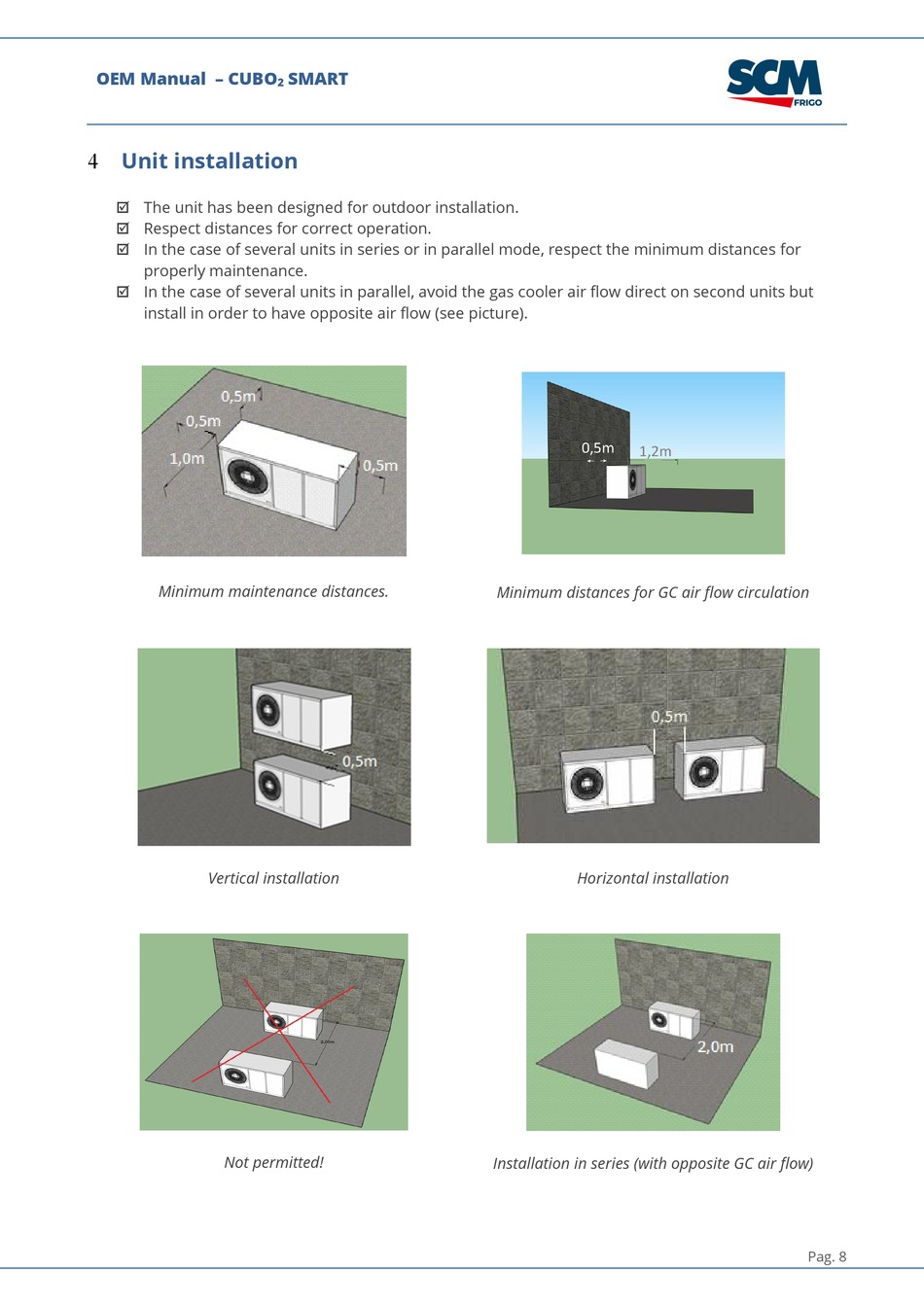

Unit installation
4
The unit has been designed for outdoor installation.
Respect distances for correct operation.
In the case of several units in series or in parallel mode, respect the minimum distances for
properly maintenance.
In the case of several units in parallel, avoid the gas cooler air flow direct on second units but
install in order to have opposite air flow (see picture).
Minimum maintenance distances.
Vertical installation
Not permitted!
SMART
2
Minimum distances for GC air flow circulation
Horizontal installation
Installation in series (with opposite GC air flow)
Pag. 8
