OEM Manual – CUBO

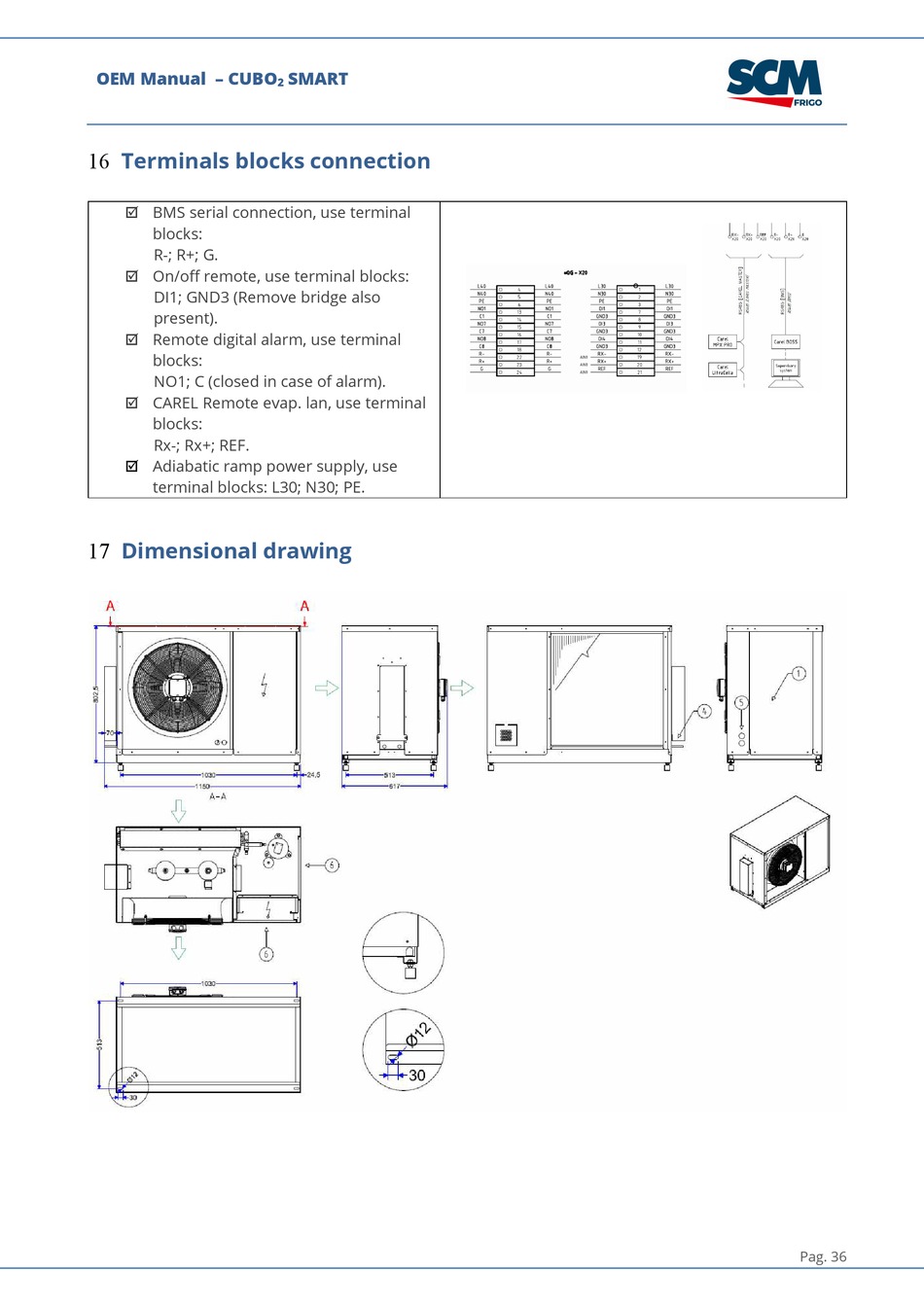

Terminals blocks connection
16
BMS serial connection, use terminal
blocks:
R-; R+; G.
On/off remote, use terminal blocks:
DI1; GND3 (Remove bridge also
present).
Remote digital alarm, use terminal
blocks:
NO1; C (closed in case of alarm).
CAREL Remote evap. lan, use terminal
blocks:
Rx-; Rx+; REF.
Adiabatic ramp power supply, use
terminal blocks: L30; N30; PE.
Dimensional drawing
17
SMART
2
Pag. 36
