Clare Controls CLIQ.lite Controller Installation Sheet

CLIQ.lite Controller Installation Sheet
Last modified: 10/22/15

Description

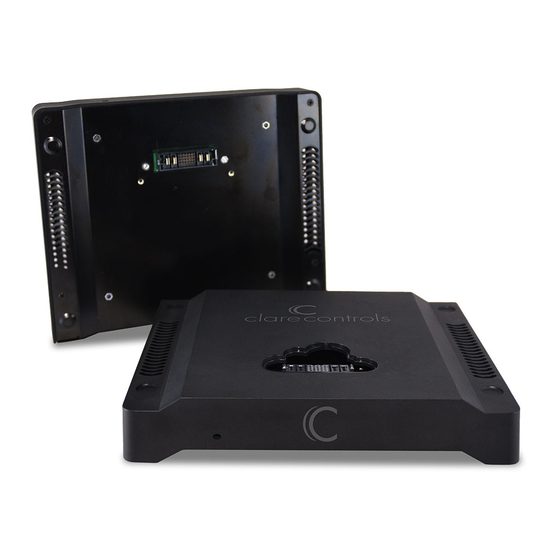

The Clare Controls CLIQ.lite in-home controller is the entry
point for Clare Controls' home automation solutions. The
CLIQ.lite runs on the same hardware platform as the full-
featured CLIQ.host. The CLIQ.lite is a scaled version of the
CLIQ.host, yet it supports all of the same applications. As your
customer's needs grow, you can upgrade the CLIQ.lite with all
the functions of a CLIQ.host, via a simple license update. If
further expansion is necessary, you can add a CLIQ.connect
module to nearly double the controller's I/O ports.
Any changes or modifications made to this product
WARNING:
not expressly authorized by the manufacturer could void the
user's right to operate this device.

Unpacking the CLIQ.lite

Remove all contents from the CLIQ.lite packaging and ensure
you have the following items.
 1 × CLIQ.lite device
1 × power supply

 3 × terminal connectors
1 × terminal connector jig

 2 × RJ12 to DB-9 cables (null modem)
6 × IR emitters

 1 × Z-Wave antenna and extender cable
4 × rubber foot covers

© 22OCT15 Clare Controls, Inc.
Record the device's UUID number (labeled on the bottom of
the device) on the line below, or scan the QR code (also on the
label) with a scanning app, and then email the number to your
system programmer. Your system programmer will need this
information to configure the CLIQ.lite device.
UUID: __________________________________
Do not use this UUID for more than one account.
Do not apply power to the CLIQ.lite until
WARNING:
installation is complete. Failure to do so may result in bodily
injury and/or damage to the equipment.

Installation

The CLIQ.lite can be mounted in a structured enclosure, set on
a rack shelf, or placed in any room near your devices.
The CLIQ.lite contains a Z-Wave radio. To prevent radio
Note:
frequency (RF) interference from external sources, we
recommend that you place the CLIQ.lite away from devices
that may cause interference and away from conductive metals.

Mounting the CLIQ.lite in a structured enclosure

When mounting the CLIQ.lite in a structured enclosure, we
recommend using the Leviton Structured Media Enclosure or
the Suttle SOHO Access Enclosure panels fitted with the
ClareHome Structured Enclosure Extender (P/N CH-EXT-28
and CH-EXT-42) for added protection against heat build-up.
(Panels and extenders are sold separately.)
To mount the CLIQ.lite in a structured enclosure:
1. Place the CLIQ.lite inside the structured enclosure with the
rear of the device facing up, see Figure 1.
2. Using cable ties, secure the CLIQ.lite to the enclosure.
Be sure to leave at least 1U of spacing (1.75 in.
Note:
(4.45 cm)) above and below the CLIQ.lite when mounting.
1 / 4 Doc ID - 724 • REV 07
