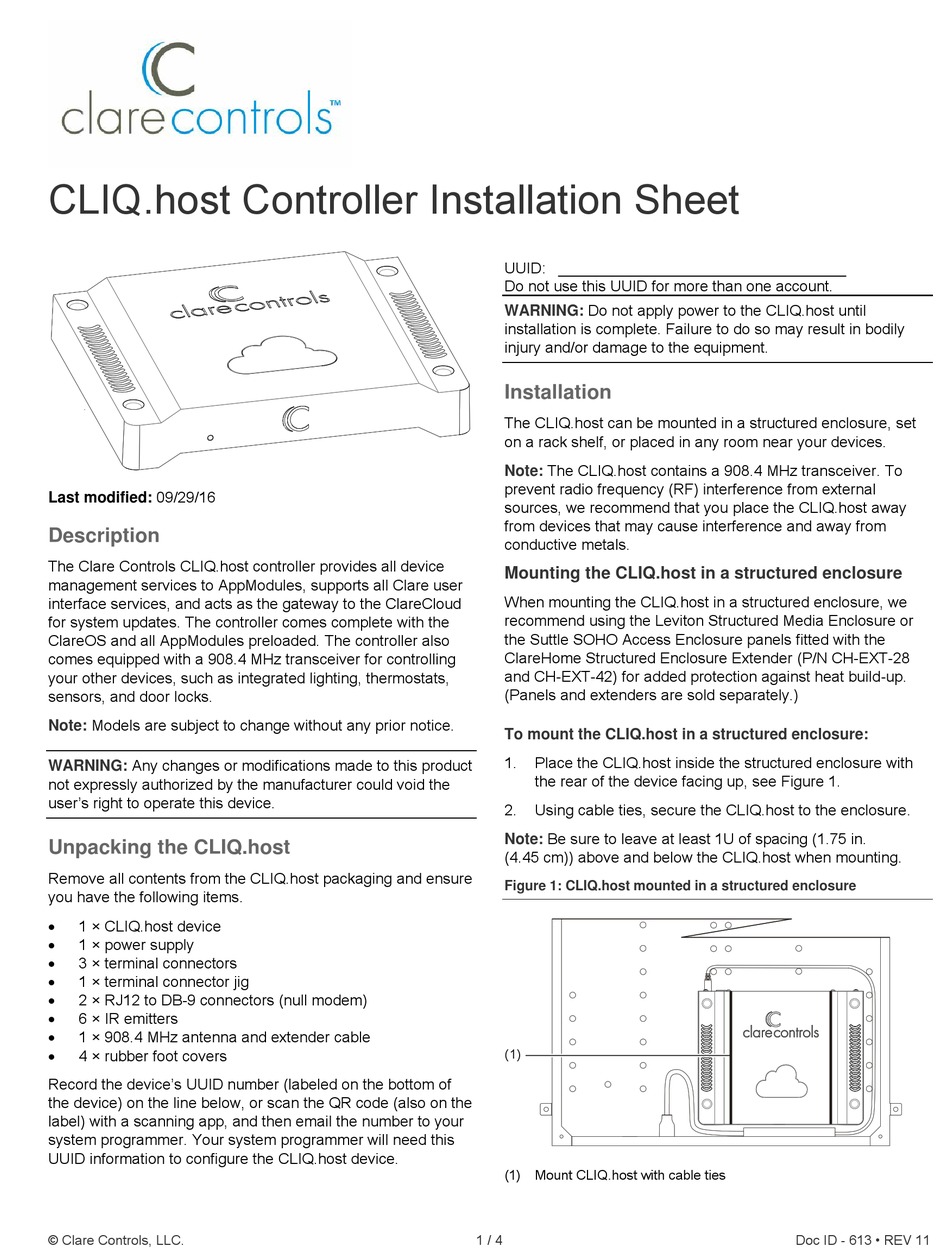

Clare Controls CLIQ.host Installation Sheet

CLIQ.host Controller Installation Sheet
Last modified: 09/29/16

Description

The Clare Controls CLIQ.host controller provides all device
management services to AppModules, supports all Clare user
interface services, and acts as the gateway to the ClareCloud
for system updates. The controller comes complete with the
ClareOS and all AppModules preloaded. The controller also
comes equipped with a 908.4 MHz transceiver for controlling
your other devices, such as integrated lighting, thermostats,
sensors, and door locks.
Models are subject to change without any prior notice.
Note:
Any changes or modifications made to this product
WARNING:
not expressly authorized by the manufacturer could void the
user's right to operate this device.

Unpacking the CLIQ.host

Remove all contents from the CLIQ.host packaging and ensure
you have the following items.
1 × CLIQ.host device

 1 × power supply
3 × terminal connectors

 1 × terminal connector jig
2 × RJ12 to DB-9 connectors (null modem)

 6 × IR emitters
1 × 908.4 MHz antenna and extender cable

 4 × rubber foot covers
Record the device's UUID number (labeled on the bottom of
the device) on the line below, or scan the QR code (also on the
label) with a scanning app, and then email the number to your
system programmer. Your system programmer will need this
UUID information to configure the CLIQ.host device.
© Clare Controls, LLC.
UUID: __________________________________
Do not use this UUID for more than one account.
Do not apply power to the CLIQ.host until
WARNING:
installation is complete. Failure to do so may result in bodily
injury and/or damage to the equipment.

Installation

The CLIQ.host can be mounted in a structured enclosure, set
on a rack shelf, or placed in any room near your devices.
The CLIQ.host contains a 908.4 MHz transceiver. To
Note:
prevent radio frequency (RF) interference from external
sources, we recommend that you place the CLIQ.host away
from devices that may cause interference and away from
conductive metals.

Mounting the CLIQ.host in a structured enclosure

When mounting the CLIQ.host in a structured enclosure, we
recommend using the Leviton Structured Media Enclosure or
the Suttle SOHO Access Enclosure panels fitted with the
ClareHome Structured Enclosure Extender (P/N CH-EXT-28
and CH-EXT-42) for added protection against heat build-up.
(Panels and extenders are sold separately.)
To mount the CLIQ.host in a structured enclosure:
1. Place the CLIQ.host inside the structured enclosure with
the rear of the device facing up, see Figure 1.
2. Using cable ties, secure the CLIQ.host to the enclosure.
Be sure to leave at least 1U of spacing (1.75 in.
Note:
(4.45 cm)) above and below the CLIQ.host when mounting.
Figure 1: CLIQ.host mounted in a structured enclosure
(1)
(1) Mount CLIQ.host with cable ties
1 / 4 Doc ID - 613 • REV 11
