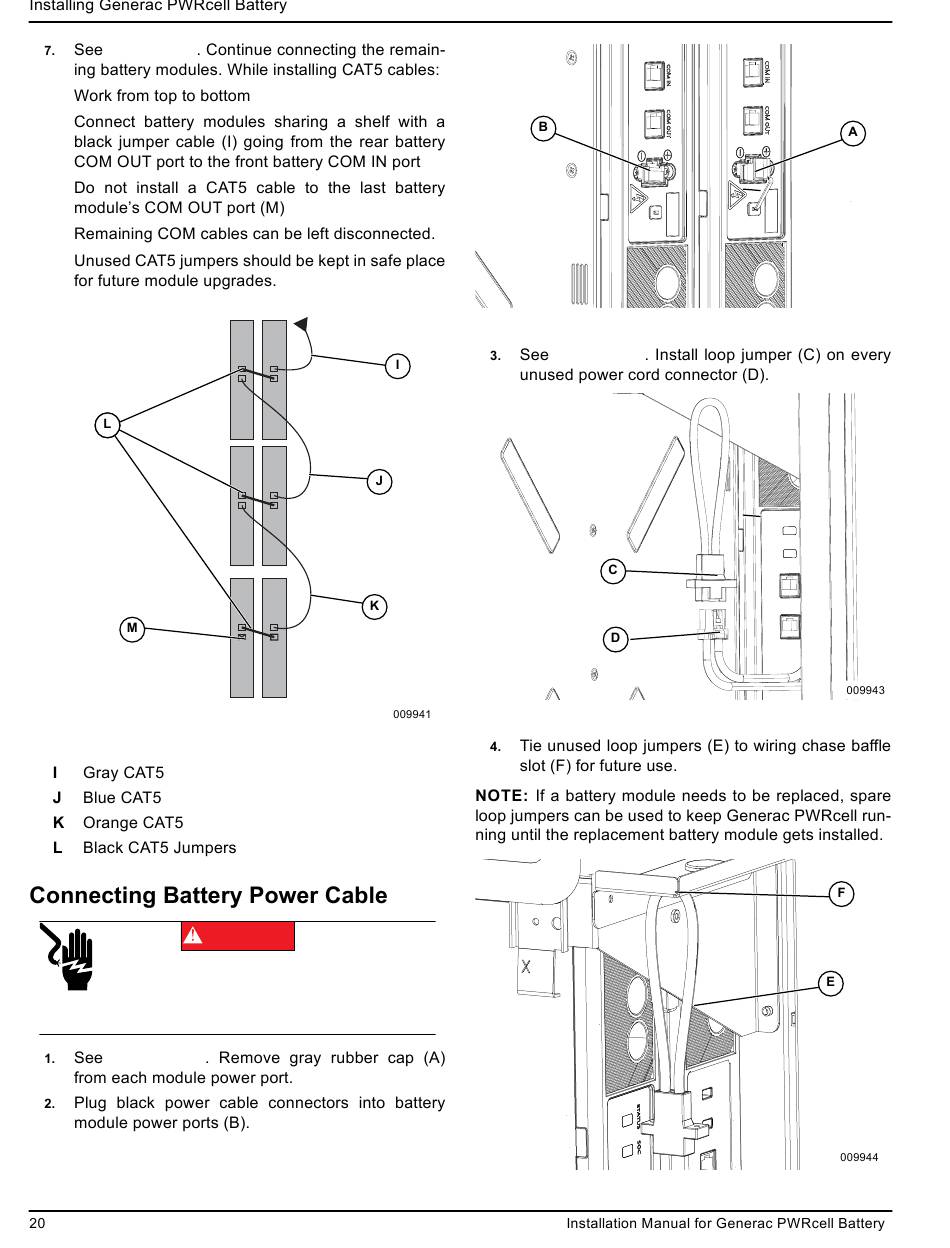

Generac Power Systems PWRcell Installation Manual page 24

Figure 4-23
•
•
•
•
•
Figure 4-23. Module COM Cabling (2 of 2)
DANGER
Electrocution. Never reach into port or touch
battery terminals with hands or tools. Doing so
will result in death, serious injury, equipment
or property damage.
Figure 4-24
Figure 4-25. Installing Loop Jumper
(000639)
Figure 4-26. Unused Loop Jumpers
Figure 4-24. Power Cable Ports
Figure 4-25
