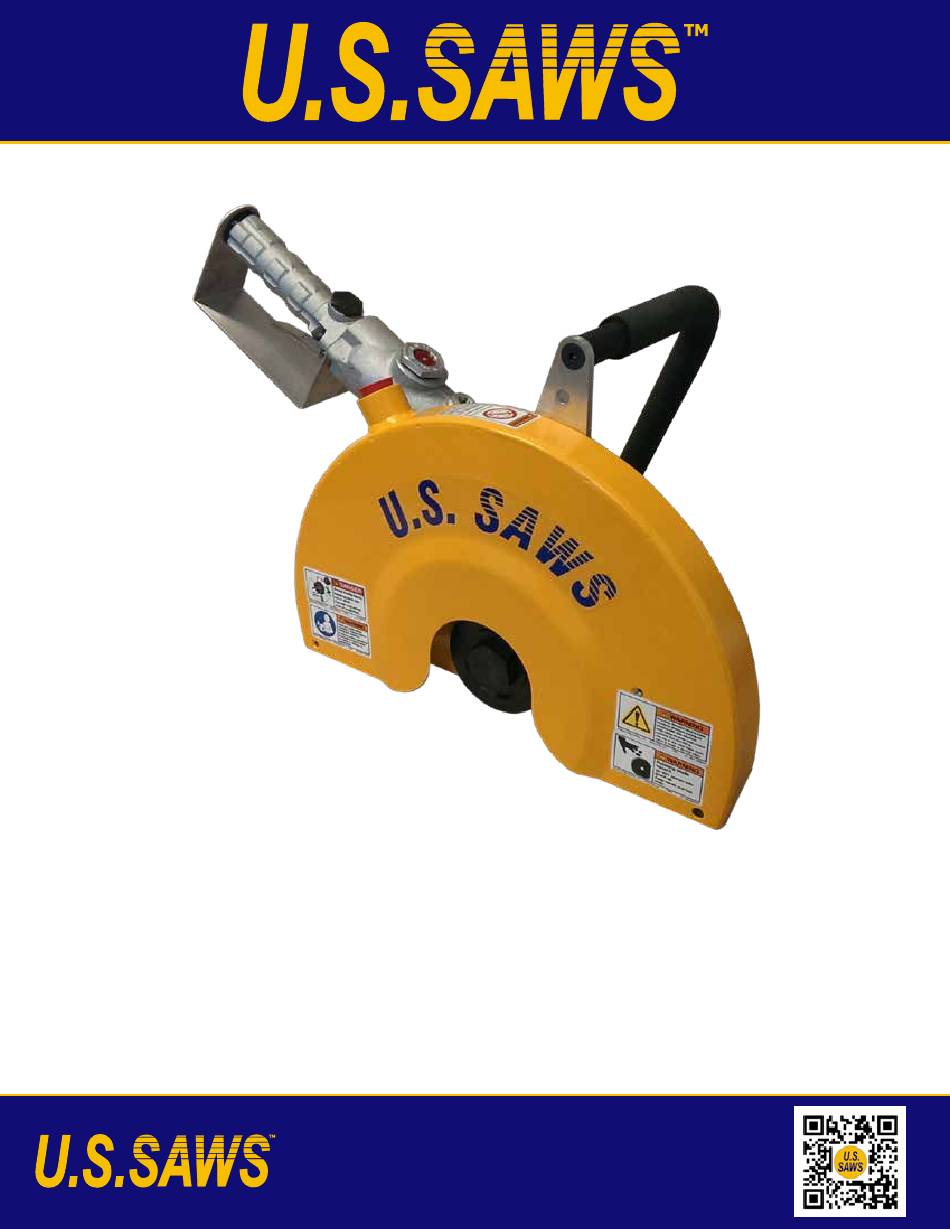

- Page 1 U.S.SAWS HS-100, HS-125 & HS-150 OPERATING MANUAL P: 866 987-7297 F: 813-621-7125 Waterworks Visit us at www.ussaws.com Division sales@ussaws.com...
- Page 2 S Y M B O L S & L A B E L S THE FOLLOWING SYMBOLS & DEFINITIONS ARE FOUND THROUGH- OUT THIS MANUAL AND ARE DESIGNED TO MAKE YOU AWARE OF POTENTIAL HAZARDS OR UNSAFE PRACTICES. A potentially hazardous situation exists which, if not avoided, WARNING could result in death or serious injury.
- Page 3 S A F E T Y General Safety Precautions • Do not operate machine unless you have read the operations and maintenance manual carefully. Read any additional instructions included from other manufacturers and organizations such as Honda and the Masonry and Concrete Saw Manufacturers Institute. Learn the applications and limitations as well as the specific potential hazards related to this tool.
- Page 4 U.S.S AW S H S H A N D H E L D S AW The U.S.SAWS hand-held air-powered saws are environmentally friendly and safe alternatives to traditional gas-powered saws for cutting concrete and asphalt. Traditionally, gas-powered saws have been used when cutting depths of 4 inches or more.
- Page 5 O P E R AT I O N & PA R T S A. BEFORE OPERATING THE SAW • Be sure all nuts and bolts are tight • Check the air supply for the correct pressure (90 PSI Min.) and rating (85 CFM Min.) •...
- Page 6 PA R T S Sawtec ● 800-624-7832 ● fax 800-547-5838 ● www.surfacepreparation.com P: 866 987-7297 F: 813-621-7125 Waterworks Visit us at www.ussaws.com Division sales@ussaws.com...
- Page 7 PA R T S MODEL DESCRIPTION PART NO HS-100 Hand-held air powered saw with direct drive motor, 14” blade capacity, built-in oiler, US-HS100 whip hose, wrenches, and one quart ice free air oil. Moderate duty 5,250 RPM saw cuts to 4” depth HS-125 Hand-held air powered saw with gear box, 14”...
- Page 8 U.S.SAWS will, at it’s sole option, repair or replace, at the U.S.SAWS factory or at a point designated by U.S.SAWS, any part, which shall appear to the satisfaction of U.S.SAWS inspection to have been defective in material or workmanship.
