GD-36
DIGITAL RECORDER AND PLAYER
OF MESSAGES AND BGM
FAULT
MUSIC MESSAGE
ON
MADE IN
SPAIN
SD CARD
CONTROLS
CONTROLS
REC
MIC
USB
0 dB
OUTPUT
L
R
10
10 IN
BACKGROUND
REMOTE
MUSIC
GD-36
10 OUT
IP
REMOTE
CONTROL
Main
Avda. BARCELONA, 24
08970 - SANT JOAN DESPÍ
Office
BARCELONA - ESPAÑA
Tel: 34-93 477 28 54
Fax: 34-93 261 17 52
ude@udeaudio.com
UDE reserves the right to modify the technical characteristics of its products without previous notice
OUTPUT TL
INPUT TL
9
8
7
6
5
4
3
2
1
10
9
8
7
6
5
4
¡CAUTION! DISCONNECT FROM POWER SUPPLY BEFORE OPENING
MARKETING
SCHEDULED
SOLUTIONS
ANNOUNCEMENTS
REG
OPTIONS
Madrid
Delegation
GD-36
OK
FAULT
POWER
230 VAC
50/60 Hz
24 VDC
FUS DC
3
2
1
F 1A
T 0,5A
¡ATENCION! DESCONECTAR LA RED ANTES DE ABRIR
2 EN54
MESSAGES
MP3
230 VAC
PLAYER
POWER SUPPLY
C/ LUIS I, 88, 3ª planta
28031 - MADRID
ESPAÑA
Tel: 34-91 311 60 76
Fax: 34-91 450 19 97
centro@udeaudio.com
MENU
OFF
FUS
ON
610.396A
1
28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD-36 and is the answer not in the manual?

Questions and answers

Related Manuals for Ude GD-36

Summary of Contents for Ude GD-36

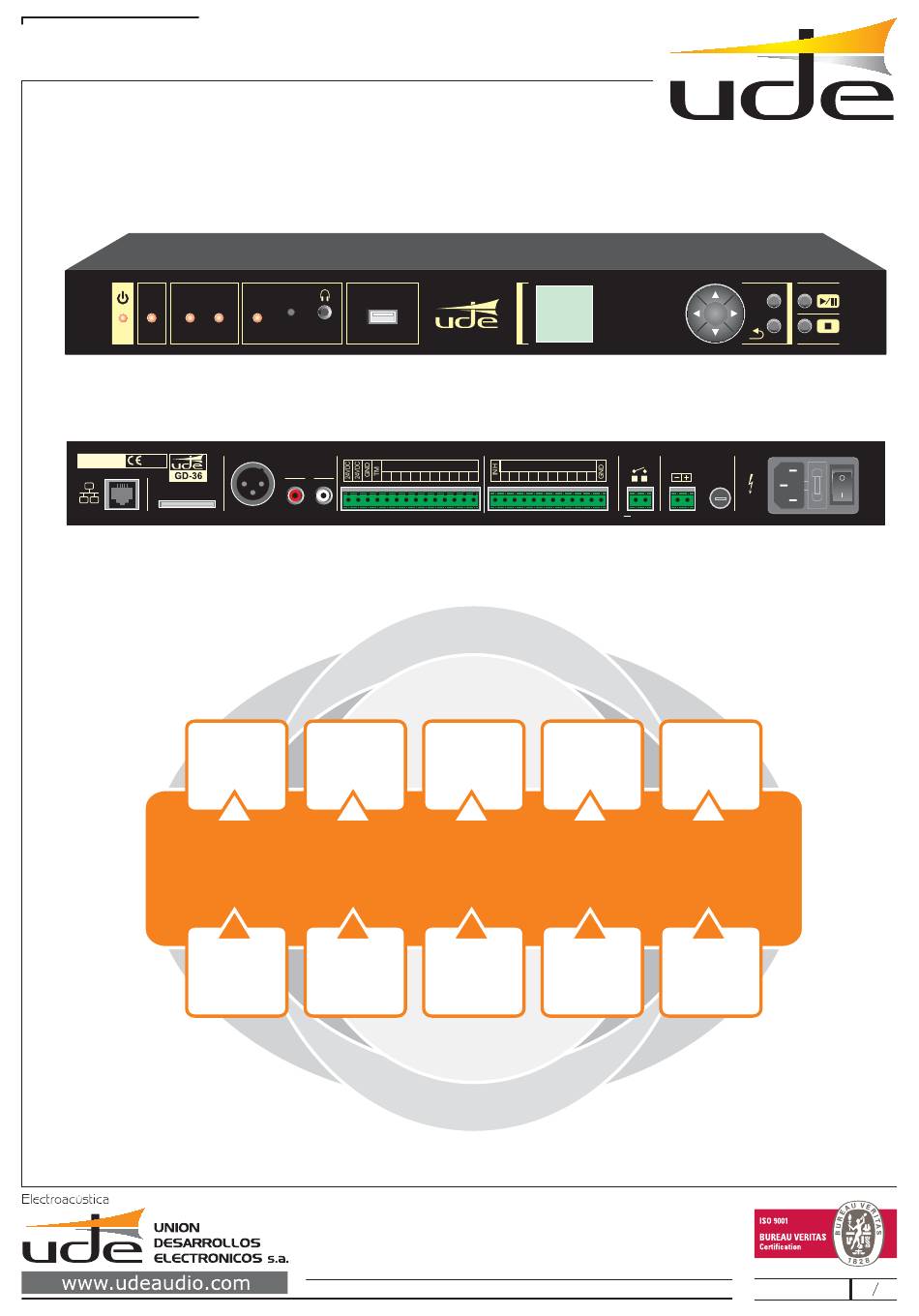

  • Page 1 BARCELONA - ESPAÑA ESPAÑA Tel: 34-93 477 28 54 Tel: 34-91 311 60 76 Fax: 34-93 261 17 52 Fax: 34-91 450 19 97 ude@udeaudio.com centro@udeaudio.com UDE reserves the right to modify the technical characteristics of its products without previous notice 610.396A...

  • Page 2: Table Of Contents

    GD-36 SUMMARY PAGE DESCRIPTION FRONT AND BACK VIEWS TECHNICAL SPECIFICATIONS BASIC OPERATIONS 4.1.- Digital audio storage 4.2.- Screen information 4.3.- Keyboard 4.4.- Operating indicator lights (LED) 4.5.- Turn ON / OFF the unit BASIC SETUP 5.1.- Message list 5.2.- Music list 5.3.-...

  • Page 3: Description

    GD-36 1.- DESCRIPTION The GD-36 is suitable for commercial and for security sound uses in rooms with large crowds, which requires the diffusion of automatic reminders (ads), emergency, evacuation, and so on, due to the basic features detailed below: The GD-36 digital recorder can digitally record and play an unlimited number of ads, the limitation is the size of external memory available.

  • Page 4: Front And Back Views

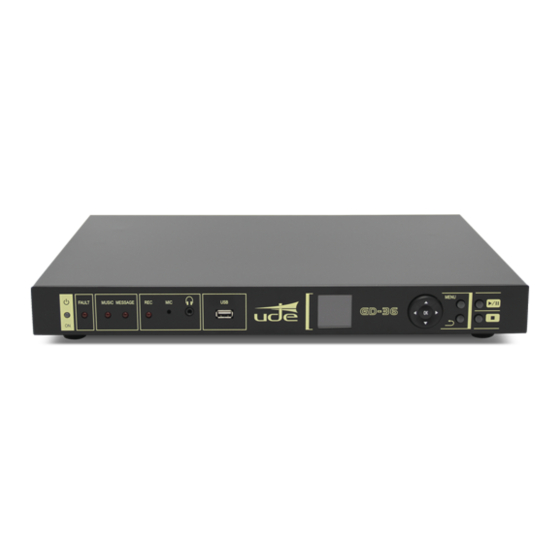

    GD-36 2.- FRONT AND BACK VIEWS MENU FAULT MUSIC MESSAGE GD-36 12 14 1. STANDBY / ON indicator lamp. 8. USB receptacle. 2. FAULT indicator lamp. 9. LCD screen. 3. MUSIC indicator lamp. 10. NAVIGATOR. 4. MESSAGE indicator lamp. 11. MENU button.

  • Page 5: Technical Specifications

    • USB 2.0 A-Type (BGM): Front panell. Media support • SDHC Card (High Capacity): 4GB o upper, FAT32 formatted. GD-36 not compatible with microSDHC type cards, or even using a size adaptor. • USB Flash Memory: 2.0 type, FAT32 formatted. Ethernet type, RJ-45 connector (8 pins)

  • Page 6: Basic Operations

    GD-36 required for a proper operation that the audio directories containt at least a correct file, ie a “.mp3” track on the “MUSIC” folder, a “.wav” file on the “VOICE” folder and a “.wav” file on the “SOUND” folder.

  • Page 7: Screen Information

    GD-36 4.2. Screen information. The basic screen we find in the GD-36 is detailed below. 12:03:55 PLAYING MUSIQUE - Clock / Calendar. Playing Mode. - Logo. Playing Time. - Status line. Percentage progress. .- Track or Message title. Graphic progress bar.

  • Page 8: Keyboard

    GD-36 4.3. Keyboard. To manage the behavior of the device, it features a navigator keypad comprising 4 arrow keys (up, down, left and right) plus a validation key (OK), and additionally to use the basic functions, have been provided to the GD -36 of 4 shortcut keys (MENU, BACK, PLAY / PAUSE, STOP), all in the front panel.

  • Page 9: Message List

    GD-36 5.1. Message list. At any time the user can select one of the existing messages in the SDCARD and activate it. These include the TM output is closed for the duration of any message, to indicate message priority issue and manage external public address (PA) system.

  • Page 10: Program List

    GD-36 5.3. Program List. At any time the user can select one of the 100 programs in the SDCARD and activate it. This feature allows you to verify any program created independently of the condition of predetermined schedule, but also lets you run programs that have not been linked to calendar events, and can provide voice output with preset remote control outputs.

  • Page 11: Adjustments

    GD-36 5.5. Adjustments. The user can select some basic adjustments, as Sound (Volume) or Screen (Contrast). Adjustments 5.5.1. Contrast Adjustment. The user must select the contrast of the LCD screen to improve readability of the Contrast characters depending on the ambient lighting on the work environment. To adjust Volume the contrast should follow the following sequence.

  • Page 12: Advanced Setup

    GD-36 6. ADVANCED SETUP. To access the advance settings you must enter a Level 1 access PASSWORD from the "MAIN MENU". Service menu Enter Password 1. Press " " to select the input data line. **** Wrong password 2. Press "OK" to activate the input password mode.

  • Page 13: Supervised Messages

    GD-36 6.2. Supervised Messages. It is possible to select up to 2 messages to be constantly monitored to detect degradation and alert the security system by activating the FAULT signal, opening the FAULT contact in the rear panel. The monitoring function works continuously in the background after activation.

  • Page 14: Ethernet Setup (Remote Access)

    GD-36 4.4.1. Ethernet Setup (Remote Access). The GD-36 can be connected to the local network (LAN) using two kinds of cables, depending of the device which you link it, viz. 1. RJ-45 or "Patch Cable". It's used when the GD-36 is connected to a router/switch/hub or to a DSL modem/router, already installed and that are working as Gateways.

  • Page 15: Local Network Setup (Ip Mode)

    In complex systems, the network administrator can force to use a specific IP address, landline calls, for each of the teams that want to connect to it. In this case, the GD-36 should be set in "MANUAL". You should also use the "manual" mode, when you want GD-36 connect directly to a computer using a crossover cable or "CrossOver Type"...

  • Page 16: Recording Messages

    GD-36 6.4.2. Recording Messages. The GD-36 can record messages using the integrated microphone on the front panel. The recording menu is included on the "Service Menu". To access it press "OK" over the "Rec" option. The filename is create automatically every time the REC utility is called. The used auto format match with the "YYMMDDXX.wav"...

  • Page 17: Clock And Date Setup

    GD-36 6.4.3. Clock and Date Setup. The clock/calendar must be adjusted on some occasions, eg, after changing the lithium battery that power it, or when during the initial installation, and keeps on time when mains and secondary power supplies fail.

  • Page 18: Remote Input Messages Setup

    GD-36 6.4.5. Setup of Remote Input Messages Press " " to select the Activation Mode. Remote In 1/2 Press "OK" to enter in edit mode. Remote In The "[Close Contact]" will appear indicating the Activation Mode option can be changed using the "...

  • Page 19: Calendar Events Setup

    6.4.6. Calendar Events Setup. GD-36 supports management of up to 100 different programs, based on events related to the calendar. For each program it is possible to control auxiliary outputs will be activated during playback, when it automatically switched to the message and the repeat cadence in fractions of 5 minutes.

  • Page 20: Webserver

    To activate the WEBSERVER simply open your web browser and type http://gd36, or the IP address associated with your device GD-36 ( eg http://192.168.0.200 ) in the address bar and after few seconds a screen like the following one will appear.

  • Page 21: System Status

    GD-36 NOTES: For the browser displays correctly the GD36 App, the local network connection (Ethernet) should be pre-configured previously. Review this manual to see how to perform this configuration (see Section 4.4.1 Ethernet Setup), and if in doubt please contact the administrator of your local network.
  • Page 22 GD-36 MUSIC LIST. The MUSIC play mode is always repetitive, but the song selection is random (RANDOM) or sequential (NORMAL). You can switch between either modes by pressing the "MODE" on the player. To jump to the next song just press the button "NEXT".

  • Page 23: Service Menu

    GD-36 7.2 Service Menu. The rest of the configuration options that GD36 includes should be handled only by authorized staff and protected by a password. To access the "Service Menu" must enter the 4 digit Maintenance Password on a screen like the following, which appears after pressing the "...

  • Page 24: Calendar Events

    "ENTER" button to update the internal data related on the GD36. It is recommended to guarantee on the country of installation of GD-36, which of the 3 options is the most correct and verify the system once the set has been configured that this is working properly.
  • Page 25 GD-36 DAILY. This programming mode will be broadcast daily selected audio file message in the time slot that starts at "Start time" and ends with "Stop time" and may include repetitions of the message with the range marked by "Repeat Period" (multiples of 5 minutes).

  • Page 26: Remote Events

    GD-36 DirectPlay This mode is special and can associate a program number with a voice file and some auxiliary control outputs, without specifying an actual event calendar, ie, a day and time of activation. As the data entered in those areas "...

  • Page 27: Change Password (Level 1: Maintenance)

    During the waiting time LED on the screen is blinking in red color, indicating system is working. Additionally, the MESSAGE indicator light located on the front of the GD-36 also will remain in blinking mode.

  • Page 28: Ftpserver

    MP3 music files, the GD-36 process the ID3 metadata and will be showed in the screen or website. The GD-36 needs has to be restart in every upload data. You can switch off pressing 2 seconds the OK button on the frontal part of the device, or by the console by the CLOSE and QUIT commands that will force to restart the GD-36 automatically, also if you do not use the FTP server during 3 minutes the equipment will be forced to restart and the new data uploaded will be available.
