Ude MX-888 Quick Manual

MX-888
REMOTE CONTROL PANEL

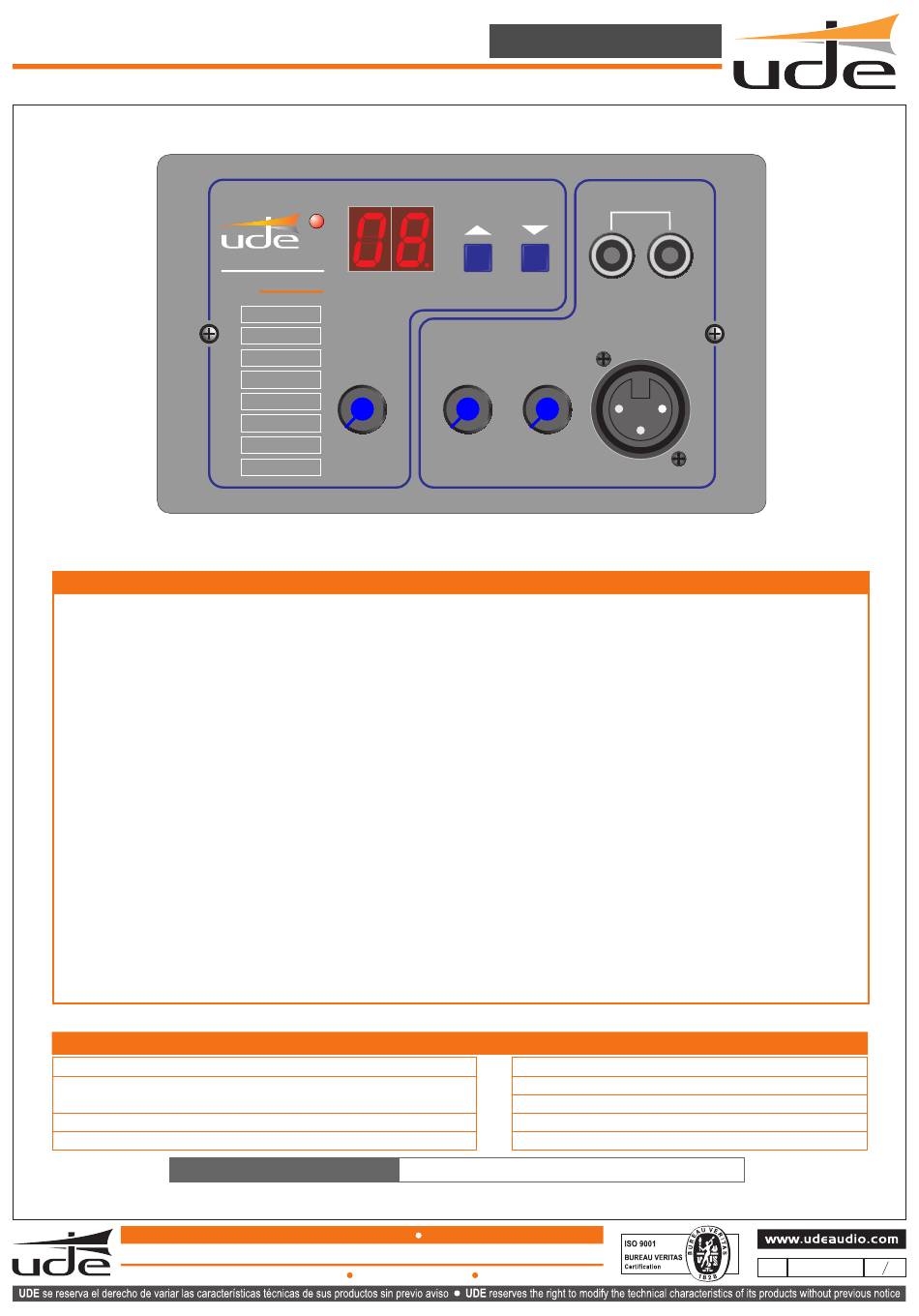

The MX-888 remote control panel can be linked to a MX-800 audio matrix, after the user can use the control panel
to adjust volumes and audio sources.
The MX-888 can control only just one PA zone, depending on it is physically connect in the MX-800 audio matrix (for
more information see the MX-800 instructions).
The local audio sockets are:
RCA: line input.
XLR: Microphone input.
Also has knobs for:
Line volume control.
Microphone volume control.
Master volume control.
The link between the audio matrix (MX-800) and the remote control must be done with FTP CAT 5 cable.
2 audio inputs preamplifier use:
Also the MX-888 can be use as a preamplifier, mixing the line and microphone audio inputs.
In that case, the SOURCE UP, SOURCE DOWN and SOURCE LEVEL do not have any function.
- Frequency response:
- Maximum cable distance:
- MIC sensitivity:
- Phantom supply:

ACCESSORIES (not supplied)

EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787
ON
REMOTE CONTROL
MX-888
1
2
SOURCE
3
LEVEL
5
4
4
3
5
2
6
1
0 10
7
8
(requires external power supply).
UNIÓN DESARROLLOS ELECTRÓNICOS
ude@udeaudio.com
MICRO-800
SOURCE SOURCE
UP DOWN
MUSIC
MIC
LEVEL
5 5
6 6
4 4
7 3 7 3
8 2 8 2
9 1 9 1
0 10 0

DESCRIPTION

TECHNICAL DATA

50 Hz - 18 kHz. - Line sensitivity:
Less than 1 km. - Output sensitivity:
- Power supply:
5 mV. - Maximum consumption:
12V. - Dimensions:
- Embedding box (Hollow partition wall). Ref. UDE 301.017
PUBLIC ADDRESS SYSTEMS
BARCELONA - SPAIN
LINE INPUT
MIC
6
7
2 1
8
3
9
10
335 mV.
775 mV.
24Vdc.
100 mA.
86 x 146 x 33 mm.
1 3
2 610.390A
rev.
