Summary of Contents for LINK-MI LM-MX42-4K2K

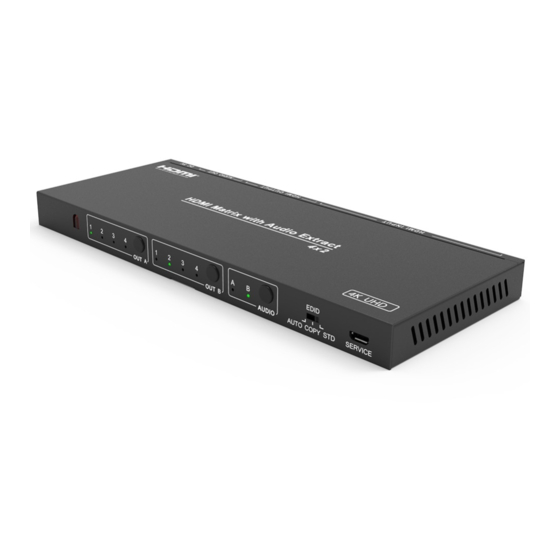

- Page 1 4x2 HDMI Matrix with Audio Extract LM-MX42-4K2K VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction..............3 2. Features................3 3. Package Contents............4 4. Specifications..............4 5.Operation Controls and Functions........6 5.1 Front Panel.............6 5.2 Rear Panel.............. 7 6.Remote Control..............8 7.Application Example............9... -
Page 4: Introduction
1. Introduction The 4x2 HDMI Matrix simultaneously four routes HDMI sources to two HDMI displays. It supports resolution up to 4K2K@50/60Hz YCbCr 4:2:0 and HDCP 2.2. This product supports audio extract from output A or output B port to optical and analog output and can be selected AUTO, COPY and STD modes EDID control. -
Page 5: Package Contents
3. Package Contents ① 1× 4×2 HDMI Matrix with Audio Extract ② 1× 5V/1A Power Adapter ③ 2× Mounting Ears ④ 1× Matrix IR Remote Control ⑤ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 297Mbps Video Resolutions... - Page 6 5.1, DTS-ES 6, DTS-HDMA5.1, DTS HD-HRA5.1 Human-bodyModel ： ESD Protection ±8kV (Air-gapdischarge), ±4kV (Contact discharge) Connections Input ports 4×HDMIType A [19-pin female] 1×IR Receiver Window Outputports 2×HDMIType A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] Mechanical Housing Metal Enclosure Color...
-
Page 7: Operation Controls And Functions
5.Operation Controls and Functions 5.1 Front Panel Number Name Function description IR receiver window OUT A Select the OUT A port input channel, correspondingthe light is on. button OUT B Select the OUT B port input channel, button correspondingthe light is on. AUDIO Select audio channel button. -
Page 8: Rear Panel
again the signal to all HDMI outputs. COPY: When selector is dialed the COPY, the unit will copy the EDID setting of the HDMI OUT A display deviceto source devices,the source devices will transmitagain the signal to all HDMI outputs.If the HDMI OUT A display device EDID can not be copyed, the source devices will send default 1080P to all HDMI outputs. -
Page 9: Remote Control
AUDIO OUT OPTICAL:Optical audio output. L/R: Analog audio output. DC 5V DC 5V power supply interface. 6.Remote Control ① IN1/IN2/IN3/IN4: Selects the OUTPUT A port input channel, correspondingon-panel light is on. : Selects the OUTPUT A port last or next input channel, corresponding on-panel light is ②... -
Page 10: Application Example
Press the B button and audio extract output from OUT B port, corresponding on-panel light is on. 7.Application Example...
