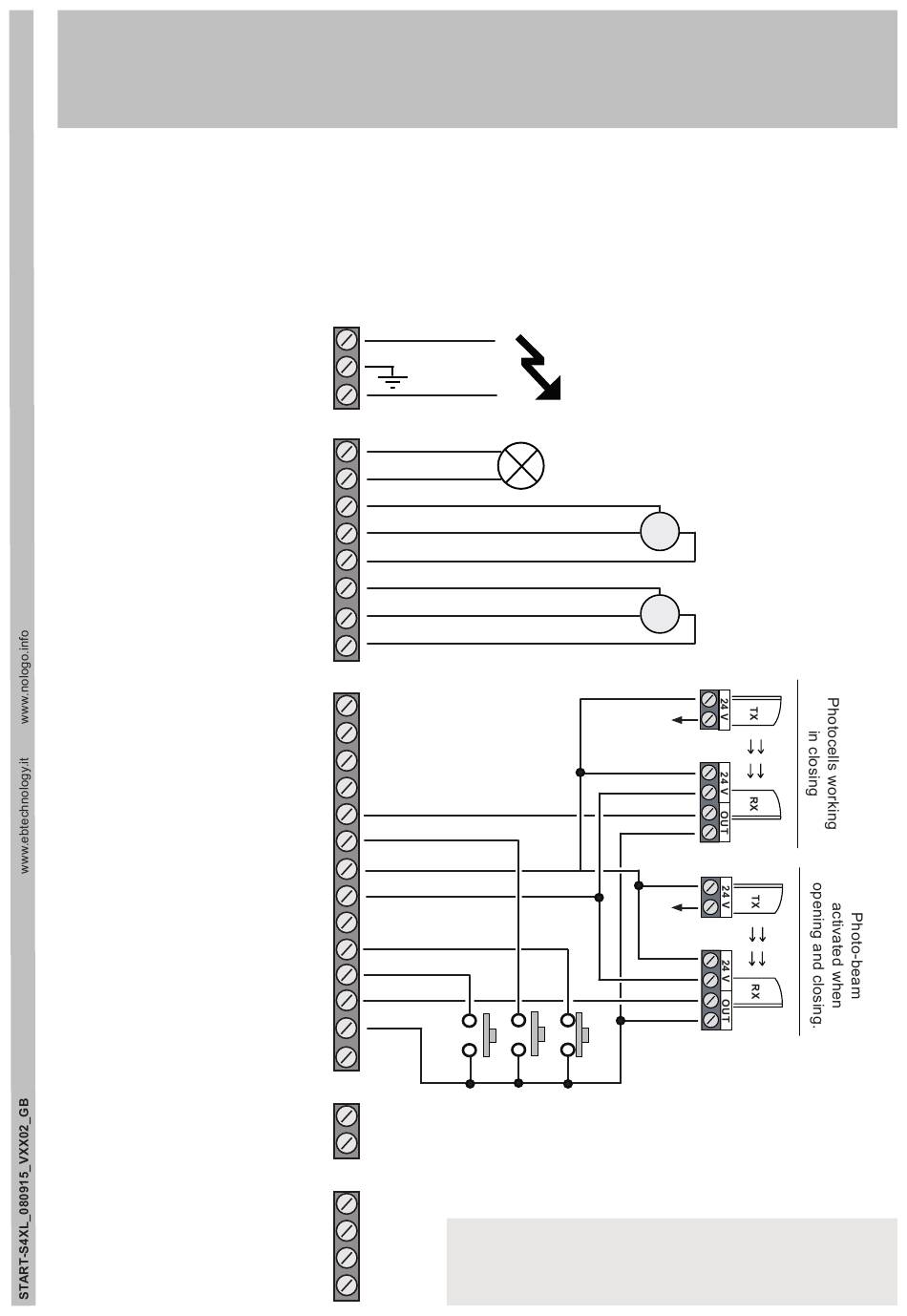

• Single phase for 230 Vac 2 motors.
• Universal control unit for 1 or 2 motors swing.
• 4 limit switches, Separate slow down.
START-S4XL
230 Vac
Ground Connection -2-
230 Vac
230 Vac Signal light
230 Vac Signal light
Motor 1 COMMON
Motor 1 OPEN
Motor 1 CLOSE
Motor 2 COMMON
Motor 2 OPEN
Motor 2 CLOSE
CLS Mot 2
OLS Mot 2
CLS Mot 1
OLS Mot 1
Closing photocell
START
24 Vac
24 Vac / 12Vac elect. lock
12Vac elect. lock
STOP
PEDESTRIAN
Photocell always working
COMMON contacts
+ Antenna
Light / Lamp
Light / Lamp
Phototest 24 Vac
12 Vac
+ 24 Vdc
- 24 Vdc
-1-
-3-
-4-
-5-
-6-
-7-
-8-
-9-
-10-
-11-
-12-
-13-
-14-
-15-
-16-
-17-
-18-
-19-
-20-
-21-
-22-
-23-
-24-
-25-
-26-
-27-
-28-
-29-
-30-
-31-
Lamp or courtesy light
230Vac
CL
CL
N.C.
N.O.
N.O.
*
Connect this point to the terminal board no. 28
for the photo-test, otherwise connect it to
the terminal board no. 19
Radio-receiver
COM
MOT 1
M
OP
COM
OP
M
MOT 2
*
*
Advertisement
Table of Contents
Related Manuals for EB TECHNOLOGY NOLOGO START-S4XL
Summary of Contents for EB TECHNOLOGY NOLOGO START-S4XL
- Page 1 • Single phase for 230 Vac 2 motors. • Universal control unit for 1 or 2 motors swing. • 4 limit switches, Separate slow down. START-S4XL Radio-receiver 230 Vac Ground Connection -2- 230 Vac 230 Vac Signal light Lamp or courtesy light 230Vac 230 Vac Signal light Motor 1 COMMON...
-
Page 2: Safety Precautions
START-S4XL Technical manual Index Premises Par. Description Pag. This manual provides all the specific information you need to fa- miliarize yourself with and correctly operate your unit. Read it Description of the product very carefully when you purchase the instrument and consult it Working features whenever you have doubts regarding use and before performing Fields of application any maintenance operations. -
Page 3: Security System
START-S4XL Technical manual Introduction Safety precautions Using the unit improperly and performing repairs or modifications personally will void the warranty. The produ- cer declines any responsibility for damages due to inappropriate use of the product and due to any use other than the use the product was designed for. The producer declines any responsibility for consequential damages except civil liability for the products. -
Page 4: Description Of The Product
START-S4XL Technical manual Description of the product The START-S4XL is the ongoing evolution of the START-S4 electronic control unit with a set of compatible clamps. It was created to suit various needs: both for door gates and sliding gates. The design adopted the most advanced techniques to guarantee the utmost immunity vs. noises, the maximum operating flexibility and to create a wide choice of available functions. - Page 5 START-S4XL Technical manual Premises Preliminary checks Making the correct choice of installation is essential to ensuring adequate safety and good protection against atmospheric agents. Remember that the control unit contains powered parts and electronic components which by their very nature are sensitive to infi ltrations and moisture. The control unit is supplied in a container which guarantees an IP55 protection rating if adequately installed. Install the control unit on a permanent surface that is perfectly flat, adequately protected against impacts and at least 40 cm off the ground. The cables must enter the control unit from the bottom only;...

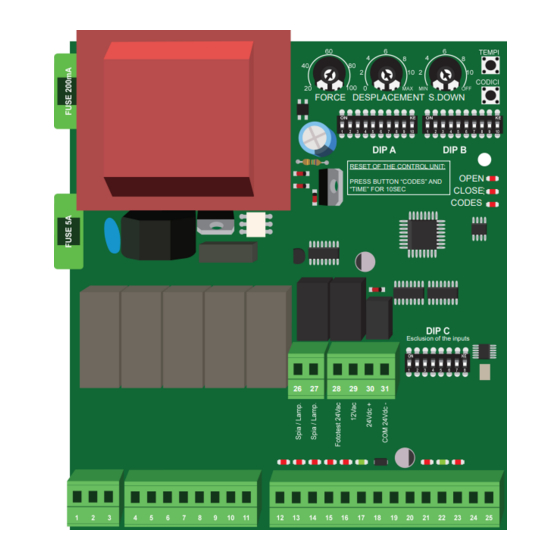

- Page 6 START-S4XL Technical manual Installation of the control board The control board has several micro-switches that activate various functions in order to find suitable solutions for the user and to make the installation more safe. Scheme and electrical connections FORCE DESPLACEMENT S.DOWN RESET OF THE CONTROL UNIT: OPEN PRESS BUTTON “CODES” AND “TIME” FOR 10SEC CLOSE CODES Esclusion of the inputs 30 31...
-
Page 7: Description Of The Electrical Connections
START-S4XL Technical manual Description of the electrical connections 230 Vac Neutral 230 Vac Power supply 50 Hz NEUTRAL Ground Ground connection 230 Vac Phase 230 Vac Power supply 50 Hz PHASE Outputs for LAMP (flashing light electronic card) or 230 Vac Signal light COURTESY LIGHT, maximum power of the lamp 40 or 100W M 1 Com Output for motor connection 1 COMMON pole M 1 Open... -
Page 8: Motor Connection
START-S4XL Technical manual Connection of the NETWORk TENSION 230 Vac. The line of power supply towards the control board must always be protected with an electromagnetic switch or with a 5A fuse couple. A differential switch is recommended but not indispensable if it is alre- Network ady present in the installation. 230 Vac Motor connection Be particularly careful in not mistaking the Opening pole with the... -
Page 9: Connection Of Antenna
START-S4XL Technical manual Connection of ANTENNA Connection of Courtesy light If you are using a piece of stiff wire instead of an an- tenna, to obtain a 433Mhz frequency you have to cut Light Group it off to 17 cm e connect it to the clamp no. 25 230 Vac coaxial antenna cable sock DIP 4 A - ON ONLY CONNECT ANTENNA AFTER MEMORIZATION OF ThE RADIO CODES IS DONE!!! Connection of arrest devices STOP command Connection of the STOP command Button: stops and inhibits temporarily the control unit until a... - Page 10 START-S4XL Technical manual 4.11 Connection of the commands “START” and “PEDESTRIAN” The connection of the command for pedestrian opening can be realized on every button or contact as soon as it is type N.O. (normally opened). The connection of the opening command START can be realized on every button or contact as soon as it is type N.O.
- Page 11 START-S4XL Technical manual 4.14 Connection of the PhOTOCELLS A (only in closing mode) 24 Vac The contact of the photocell’s 16 17 receiver must be: - clean (isolated from the power supply voltage) - type N.C. (normally closed). If you are using several sets of photocells the connection must be done in series.
- Page 12 START-S4XL Technical manual 4.16 Connection of the PhOTOCELLS B (both in closing and opening) 24 Vac The contact of the photocell’s 16 17 receiver must be: - clean (isolated from the power supply voltage) - type N.C. (normally closed). If you are using several sets of photocells the connection must be done in series.
-
Page 13: Functions And Adjustments
START-S4XL Technical manual Functions and adjustments The control board has several micro-switches to activate a lot of functions in order to find suitable solutions for the user and to make the installation more safe. Use of the DIP A By every order it inverts: open and close. 1-OFF Automatic 1 2-OFF It closes automatically at the end of the pause time 1-ON In opening and pause time it doesn’t accept commands. - Page 14 START-S4XL Technical manual Setting up with DIP B This function can able the “ Man present” function, The START command opens the closing PEDESTRIAN com- Man present 1-ON mand. The motors stops when the command has been released. To go back to the normal functioning: turn off the control board and put the DIP1 in OFF again.
- Page 15 START-S4XL Technical manual Diagram of PEDESTRIAN time and START time TIME “START“ IN OPENING TIME “PEDESTRIAN“ AND CLOSING IN OPENING AND CLOSING 8 ON 10” (seconds) 6” (seconds) 9-10 OFF 9 ON 14” (seconds) 8” (seconds) 8-10 OFF 8-9 ON 18” (seconds) 10” (seconds) 10 OFF 10 ON 22” (seconds) 12” (seconds)
-
Page 16: Using The Remote Controls
START-S4XL Technical manual Using the remote controls The control board can accept diff erent type of codes, the fi rst memorized remote control defi nes the type, consequently, other type of codes (diff erent from the fi rst memorized remote control) cannot be learnt. The control board accepts standard codes from 12 to 64 bit and only the fi xed part of the code for the rolling code HCS©, but using the DIP 3-B the rolling code counter can be monitored. This way the remote controls cannot be copied. The memory capacity is about 200 diff erent rolling codes. The fi rst memorized remote control defi nes the type of code that the receiver shall learn, consequently, the subsequently memorized remote controls must have the same type of code. - Page 17 START-S4XL Technical manual Time learning The control board START S4XL has two way to plan the working time. NORMAL WAY: use this system when the doors are the same and the motors are the same. ADVANCED SYSTEM: use this system when you want to set up the exact timing of slown down and/or the doors have diff erent working times.
- Page 18 START-S4XL Technical manual Time learning: ADVANCED SYSTEM The gate is in CLOSED position Put and leave in ON the DIP 10A The gate is in closed position * Push the button TIMES The fi rst motor OPENS Push the button TIMES (or START) The fi rst motor slows down If the slowing down is activated when opening...
- Page 19 START-S4XL Technical manual Time learning PEDESTRIAN WAY The gate is in closed position Press and keep pressed the TIMES button till the control board starts motor no. 1 in OPEN, then Motor no.1 OPENS release the TIMES button TIMES Press the TIMES button Motor no.1 CLOSES TIMES Let the desired pause time run for the PEDESTRIAN OPENING...
- Page 20 START-S4XL Technical manual Reset of the memory The reset of the memory programm the standard values of the remote controls. It doesn’t cancel the codes: there are two diff erent memories. Press the buttons CODES AND TIMES TIMES CODES LED OPEN, CLOSE and CODICI lit ON. OPEN CLOSE CODES...
- Page 21 START-S4XL Technical manual LED and adjust of FORCE, DESPLACEMENT AND SLOWDOWN Vherwith the condition of the gate and the adjustment OPEN Adjust of the force The led for codes flashes: CLOSE of the motor The gate is closed From 20% up to 100% CODES FORCE FORZA OPEN...
- Page 22 START-S4XL Technical manual Note ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................-22-...
-
Page 23: Declaration Of Ce Conformity
START-S4XL Technical manual Declaration of CE conformity (according to EC Directive 2006/42, Attachment II, part 1, ses. A) Company: EB TEChNOLOGY SRL Address: Corso Sempione 172/5 The undersigned Ernestino Bandera, 21052 Busto Arsizio VA Italy Administrator Product’s name: START-S12 Centrale Inverter 230Vac... - Page 24 Sono state eseguite tutte le necessarie prove All necessary radiofrequency tests have been di radiofrequenza performed Toutes les essais de radiofréquence néces- saires ont été effectués EB TEChNOLOGY SRL EB TEChNOLOGY SRL EB TEChNOLOGY SRL Corso Sempione 172/5 Corso Sempione 172/5 Corso Sempione 172/5...
