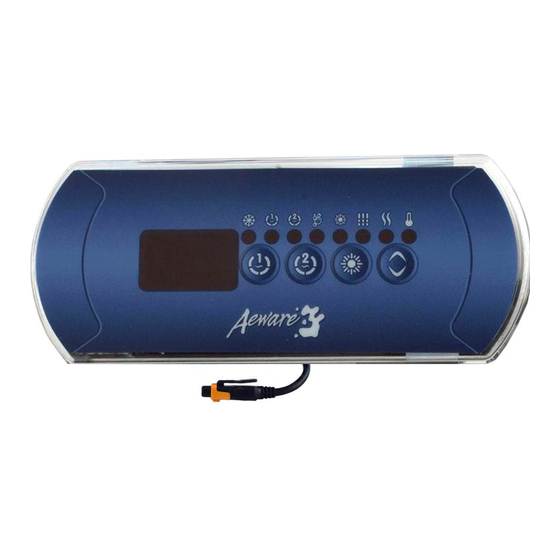

- Page 3 Compact series of entry-level keypads that gives complete control to wet fingers! In.k200 is a compact keypad designed to be used with Aeware's in.xe spa systems. This new series of entry-level keypads comes in a waterproof plastic enclosure and is available in single pump, dual pump;...
-
Page 4: Function Description
Smart winter mode Pump 1 Pump 2 Light Filter Heater Set Point indicator indicator indicator indicator indicator indicator indicator �� key 1 key 2 Light key Up/Down key... -
Page 5: General Specifications
Dimensions: General specifi cations: Environmentals: Storage temperature: 70˚C (158˚F) to –30˚C (-22˚F) Operating temperature: 60˚C (140˚F) to –20˚C (-4˚F) Humidity: 100% condensing 2" (51 mm) Mechanical Specs: Weight: 0.41 kg (0.9 lbs) Dimensions (W x H x D): Front Panel: 4.750"... -
Page 6: Installation And Connections
66 mm close to it) so that it is easily accessible to the user. • To install the in.k200, drill two 1” (25 mm) diameter holes at 2 5/8” (67 mm) from center to center as illustrated. • Cut out the material between the two holes (see illustration). - Page 7 & connections Connecting in.k200 main keypad to in.xe in.k200 The in.k200 comes with a 10 ft cable and an in.link connector. To connect the in.k200, simply insert its in.link connector into the appropriate keypad connector (as illustrated). Connect the main keypad...
- Page 8 �� �� �� �� �� �� �� Key 1 Key 2 Key 2 (2 Pump/Blower) Light key 2 Pump (or single pump/ Press Key 1 key to turn Pump 1 Press Key 2 to turn Pump 2 Press Light key to turn light on.
- Page 9 �� ���� Up/Down key Programming fi lter cycles Setting fi lter cycle duration Filter cycle frequency Use Up or Down key to set Depending on system confi gu- Press and hold Light key until Press Light key again. The desired water temperature.
- Page 10 ���� Purge cycle frequency Programming purge cycles Water temperature regulation Smart Winter Mode Our Smart Winter Mode Press and hold Light key until In a regulation cycle, the system To program the purge cycles, fi rst generates water fl ow through the display shows Fx, with "x"...
-
Page 11: Typical Settings
Keypads available for the in.xe: Typical settings: in.k200 (LED display, 4 keys, 7 light indicators) Set Point : 59°F to 104°F / Factory set at 95°F in.k219 (LED display, 4 keys, 7 function icons) Filter Cycle Duration: 0 to 24 hrs / Factory set at 2hrs in.k235 (LED display, 6 keys, 8 function icons) - Page 12 Advanced electronics! Water resistance! Gecko Alliance 450 des Canetons, Quebec City (QC) G2E 5W6 Canada, 1.800.78.GECKO 9225 Stellar Court, Corona, CA 92883 USA , 951.667 .2000 9919-100809 www.geckoalliance.com Rev. 10/08...
Need help?
Do you have a question about the in.k200 and is the answer not in the manual?
Questions and answers
my key pad doesn't have a plug.. About 15 years old. pump circulates when breaker reset but no lights on control panel.
If the Aeware in.k200 control panel is not lighting up despite the pump circulating, possible issues include:
1. Defective Keypad: Use a spare keypad to verify. If the spare works, replace the original keypad.
2. Low-Level Configuration Issue: The spa pack may not have a valid low-level configuration set. Re-enter the programming menu and select the correct configuration.
3. Blown Fuse or Connection Issue: Check fuses and wiring related to the keypad and control panel.
4. Spa Pack Malfunction: If the keypad is not the issue, the spa pack may need to be replaced.
Verify each step systematically to identify the exact problem.
This answer is automatically generated
When I hold the light key to get the display to say Fx to change the frequency of the purge, it shows me a blinking F1 and then won’t respond when I push the up and down buttons. I want to increase that number but can’t.
