EN Instruction manual
SHOWER IN BED SYSTEM
LITOO
3018.00
A4AN3018.doc – 27/02/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITOO and is the answer not in the manual?

Questions and answers

Summary of Contents for Reval LITOO

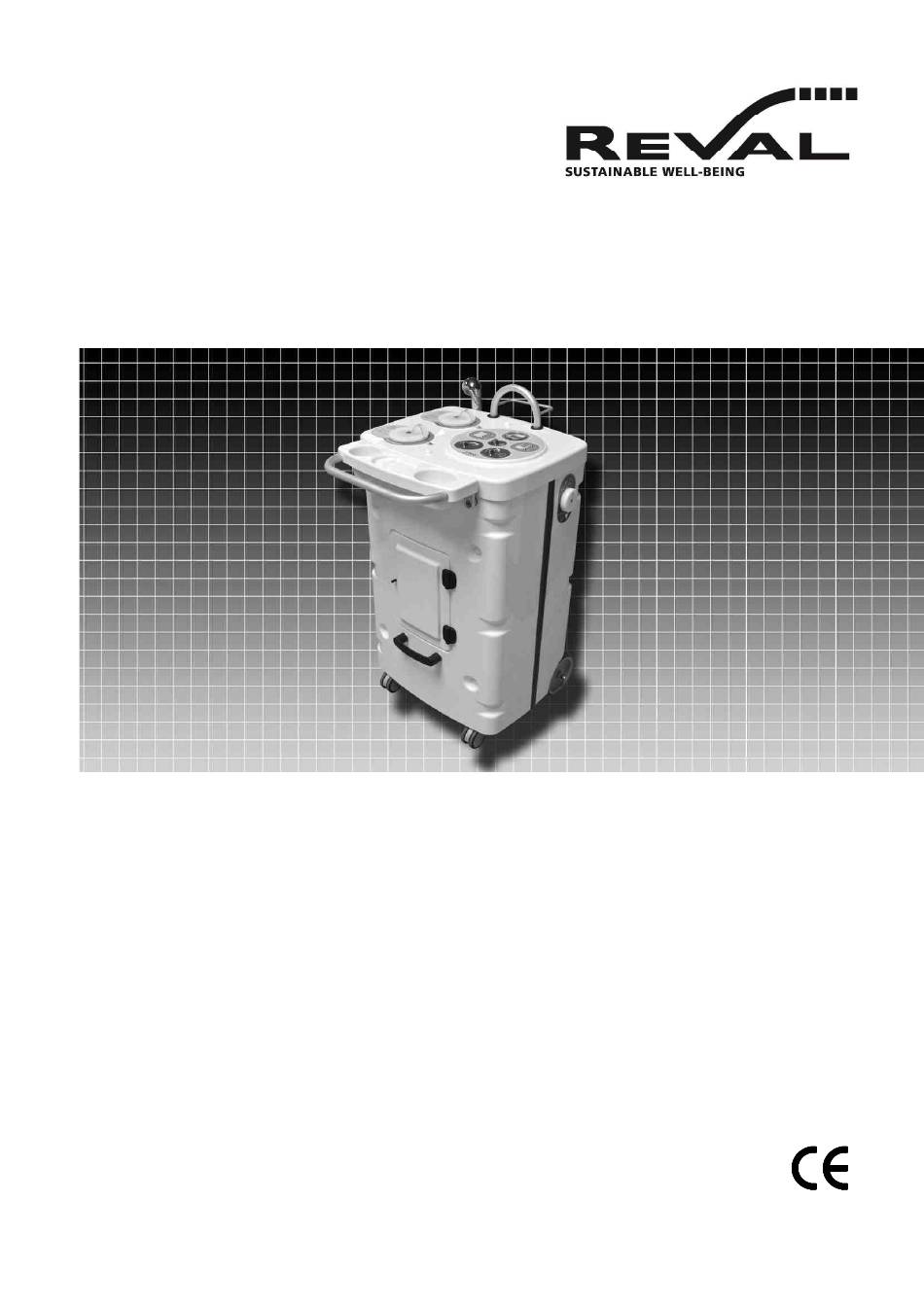

  • Page 1 EN Instruction manual SHOWER IN BED SYSTEM LITOO 3018.00 A4AN3018.doc – 27/02/2019...
  • Page 2: Table Of Contents

    SUMMARY CONTENTS PAGES EQUIPMENT OVERVIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CONTROL PANEL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DIMENSIONS...
  • Page 3: Equipment Overview

    EQUIPMENT OVERVIEW 1 Control panel 2 Disinfectant tank 3 Fresh water tank 4 Accessory/towel rack 5 Battery & disinfectant tank access panel 6 Handle 7 Driving handle 8 Shower handset with digital thermometer 9 Suction pipe 10 Waste water tank draining valve 11 Fresh water tank draining valve 12 Shower flexible 13 Tilting foot control...
  • Page 4: Control Panel

    CONTROL PANEL Temperature display On/Off general switch + Led indicator Water levels Indicators in the disinfectant tank Water levels Indicators in the fresh water tank Shower pump On/Off Draining pump On/Off indicator switch + Led indicator (double functions : suction of the waste water from mattress and disinfection of the waste water tank and piping)
  • Page 5: Dimensions

    DIMENSIONS 4/16...
  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS DESCRIPTION: • Aluminium frame. Covers in ABS PMMA. • x2 Ø150mm wheels & x2 Ø65mm wheels. • Fresh and waste water tanks in PEHD. • 24V shower pump. • 24V drainage/disinfection pump. • Simultaneous pump function. • Chromed shower handset with removable head. •...
  • Page 7: Application

    The Litoo shower in bed is provided with a second 17 litres tank intended to collect the waste water. The Litoo shower in bed is provided with a third tank of a 5 litres capacity intended for the disinfection of the complete circuit of waste water.
  • Page 8: Safety Instructions

    SAFETY INSTRUCTIONS Before operating, installing or servicing the Litoo Shower in Bed, please read the instruction manual carefully, paying particular attention to the Safety instructions section. In the event of any queries please contact Reval directly for guidance. Failure to comply with the safety instructions in this manual may result in injury.
  • Page 9: Directions For Use

    Fill the disinfectant tank with water + TecCare Control Concentrate disinfectant. Insert the suction pipe inside the disinfectant tank then start the automatic disinfection of the waste water circuit. Clean and disinfect the Litoo shower in bed system and the shower sheet. RECHARGE OF THE BATTERY Connect the charger cable on the battery.
  • Page 10: Filling Of The Fresh Water Tank

    DIRECTIONS FOR USE Implementation of the battery: Position the batttery on its support then connect the feeding cable (black and red). FILLING OF THE FRESH WATER TANK Remove the waterproof white cap from the fill opening, then thanks to a shower head or the optional set of filling, fill the fresh water tank in the desired temperature until the Led indicator ”...
  • Page 11: Showering

    DIRECTIONS FOR USE SHOWER ATTENTION: Check the water temperature before applying the showerhead to the individual. Take the handheld shower. Switch on the shower pump by pushing on the On/Off button. A LED indicator ignites. The shower running time is 4 minutes 35s for an unbroken operation. When the water level reaches 1/3 of the tank, the orange LED indicator will ignite, indicating that it stays approximately 1min 30s of shower time.
  • Page 12: Draining Tanks Towards Shower Tray

    DIRECTIONS FOR USE DRAINING TANKS TOWARDS SHOWER TRAY Bring the Litoo Shower in bed system to a shower tray then open the both draining valves (from fresh water tank and waste water tank). When the water does not pass by any more tilt slightly the shower in bed to the back to empty totally the remainder of water.
  • Page 13: Cleaning The Waste Water Circuit Filter

    DIRECTIONS FOR USE CLEANING THE WASTE WATER CIRCUIT FILTER To remove the filter, simply unscrew the transparent cover counterclockwise. Then, rinse the different parts of the filter and more particularly the filter screen. 12/16...
  • Page 14: Washing & Disinfection Of The Waste Water Tank & Piping

    Cleaning and disinfection : Bring the Litoo Shower in bed system to a shower tray then open the draining valve of the waste water tank. Insert the suction pipe up to the bottom of the disinfectant tank then press on the On/off switch.
  • Page 15: Maintenance

    Use liquid cleaning products such as gels and liquid soaps. For the disinfection of the covers & control panel, Reval recommends using TecCare Control disinfectant. The shower sheet must be washed at high temperature by the laundry department of the establishment between two patients to avoid any risk of infection.
  • Page 16: Periodic Inspection

    PERIODIC INSPECTION 1) The Litoo Shower in Bed system should be inspected as per the manufacturer – a minimum of twice yearly. 2) A properly qualified individual, familiar with the design, use and care of the trolley, should carry out the inspection.
  • Page 17: Maintenance Logbook

    MAINTENANCE LOGBOOK 16/16...
  • Page 18 Usseau 17220 Sainte Soulle Tel: (33) 05.46.42.04.16 Fax: (33) 05.46.43.06.38 www.groupe-reval.com UNITED KINGDOM : Reval® Continuing Care Limited Unit 17 Brynmenyn Busines Centre St Theodore's Way - Brynmenyn CF32 9TZ BRIDGEND - WALES Tel: 01656 721 001 Fax: 01656 720 006...
