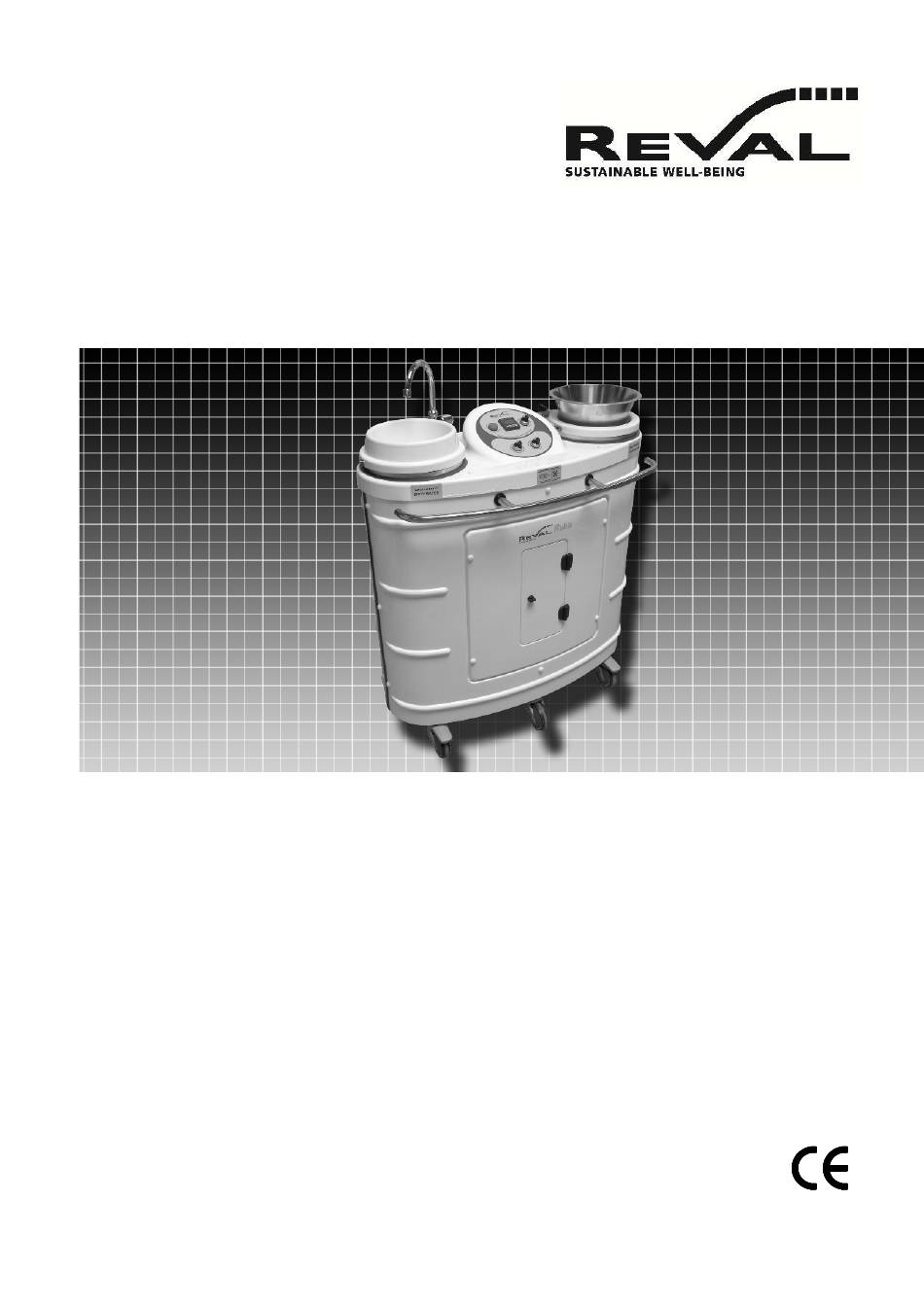

- Page 1 EN Instruction manual SHOWER IN BED SYSTEM RUBIS 3017.00 3017.00 UK A4AN3017.doc – 23/08/2016...
-
Page 2: Table Of Contents
SUMMARY CONTENTS PAGES EQUIPMENT OVERVIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CONTROL PANEL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TECHNICAL SPECIFICATIONS... -
Page 3: Equipment Overview
EQUIPMENT OVERVIEW 1 Control panel 9 Disinfectant tank access panel 2 Waste water tank 10 Wheel with brake 3 Fresh water tank 11 Flow intensity adjustment valve 4 Single handle bar faucet (option 3017.60) 12 Cleaning shower 5 Washbasin (option 3017.60) 13 Fresh water tank drainage 6 Stainless steel bowl (option 3017.60) 14 Waste water tank drainage... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS The Rubis Shower in Bed System comprises: a mobile shower trolley with six directional wheels, flexible showering hoses, fresh water tank, integral waste water tank and disinfectant tank, waterproof bed sheet (width 90cm), four fasteners, as well as a bath towel (158x220cm). DESCRIPTION: Steel frame, white colour, anti-corrosion coated. -
Page 5: Application
APPLICATION The Ruby Shower in Bed is designed to shower individuals who are confined to bed. The shower trolley should be operated only by those qualified to do so and who have read the instruction manual. The Ruby Shower in Bed must only be used to wash individuals. The Ruby Shower in Bed is designed for use in conjunction with the shower sheet. -
Page 6: Safety Instructions
For more information on this matter please contact Reval Customer services who will be able to arrange training or further guidance on this matter. -
Page 7: Directions For Use
& down buttons. For security reasons the max. temperature cannot exceed 41° (as per the factory settings). This temperature and the controller programming is password protected. To modify these settings please contact Reval technical service. 6/12... -
Page 8: Heating Water
DIRECTIONS FOR USE HEATING OF WATER To start heating the water, turn on the button located near the temperature controller. The temperature of the water will rise gradually until the set temperature is reached without exceeding it. Heating time is 12min to reach 37° from 23° cold water. Heating time is 6 min to reach 37°... -
Page 9: Maintenance
Use liquid cleaning products such as gels and liquid soaps. Do not use abrasive cleaning products such as scouring cream. To clean the tanks Reval recommends using BFR 4.0 disinfectant (contact Reval). NOTE: It is safe to spray BFR 4.0 disinfectant on the heating element. -
Page 10: Cleaning And Disnfection Procedure Between 2 Showers
MAINTENANCE CLEANING & DISINFECTION PROCEDURE BETWEEN 2 SHOWERS (average time ~5 min) 9/12... -
Page 11: Cleaning And Disnfection Procedure Between At The End Of Use
MAINTENANCE CLEANING & DISINFECTION PROCEDURE AT THE END OF USE (average time ~20 min) 10/12... -
Page 12: Periodic Inspection
6) Defects and damages affecting the trolley’s safety, and actions taken between inspections, should be entered in the trolley’s logbook. 7) Defects and damages should be reported to Reval for action and noted in the logbook. 11/12... -
Page 13: Maintenance Logbook
MAINTENANCE LOGBOOK 12/12... - Page 14 Usseau 17220 Sainte Soulle Tel: (33) 05.46.42.04.16 Fax: (33) 05.46.43.06.38 www.groupe-reval.com UNITED KINGDOM : Reval® Continuing Care Limited Unit 17 Brynmenyn Busines Centre St Theodore's Way - Brynmenyn CF32 9TZ BRIDGEND - WALES Tel: 01656 721 001 Fax: 01656 720 006...
