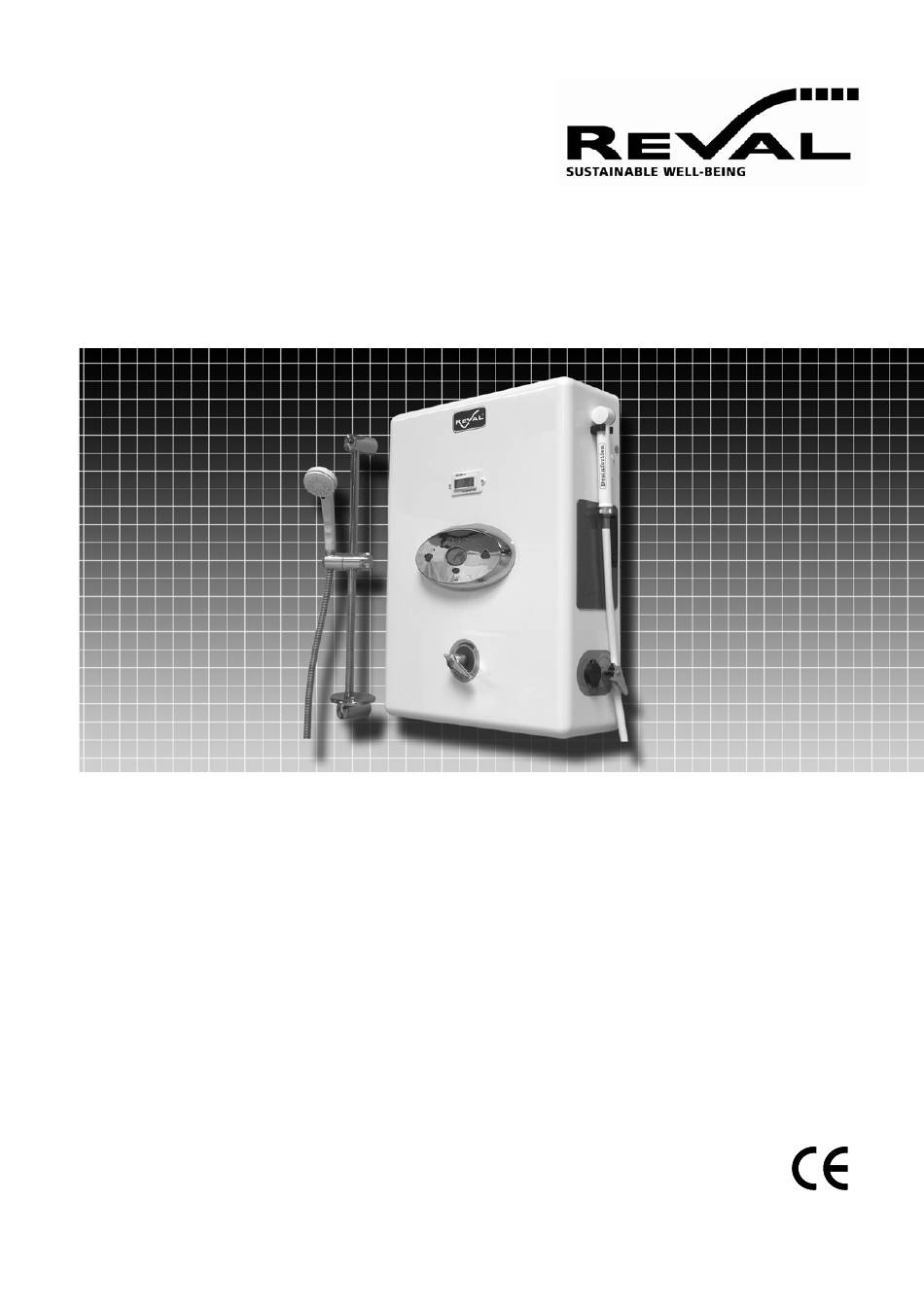

- Page 1 EN Instruction manual SHOWER PANEL with secured disinfection system OPALE SENSE 3011.01...
-
Page 2: Table Of Contents
SUMMARY CONTENTS PAGES GENERAL DRAWINGS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DIMENSIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TECHNICAL SPECIFICATIONS... -
Page 3: General Drawings
GENARAL DRAWINGS Cleaning shower Digital temperature display Disinfection shower Door to access to the tank Digital thermostatic mixer Cleaning shower flow regulation Disinfection sop valve Valve lock with key DIMENSIONS 45cm... -
Page 4: Technical Specifications
NF C 15-100. RANGE OF APPLICATION The 3011.01 Opale Sense control panel has been studied to wash patients on shower trolley and to make the disinfection of mattress, pillow, wall of bathtub... The shower panel must be used only by qualified people who have read and understood the user manual. -
Page 5: Directions For Use
DIRECTIONS FOR USE CONCEALED DIGITAL MIXING VALVE RADA SENSE: To adjust the water temperature,, pass your finger in front of the cold water sensitive captor (blue triangle) or in front of the hot water (red triangle) according to the temperature desired. Max outlet temperature for shower: 40°C Default at start-up : 37°C. -
Page 6: Anti-Burn Safety Device
DIRECTIONS FOR USE ANTI-BURN SAFETY : If breaking of cold water feeding occurs, risks of burn are avoided. DISINFECTION : - Unlock the disinfection valve thanks to the key. - Déverrouiller la vanne de désinfection à l’aide de la clé. For that purpose, turn the key counterclockwise. - Take the disinfection shower - Carefully sprinkle parts to disinfect. -
Page 7: Maintenance
MAINTENANCE ADDITION OF DISINFECTANT : The control panel is equipped with an automatic system to determine the quantity of disinfectant. The disinfection system includes : • 1 lites tank receiving the disinfectant product. • 1X plunger with calibrated tube, located in the tank, and connected by a flexible going through the top of the venturi (white plastic part). -
Page 8: Maintenance Form (Logbook)
MAINTENANCE FORM (LOGBOOK) - Page 9 Usseau 17220 Sainte Soulle Tel: (33) 05.46.42.04.16 Fax: (33) 05.46.43.06.38 www.groupe-reval.com UNITED KINGDOM : Reval® Continuing Care Limited Unit 17 Brynmenyn Busines Centre St Theodore's Way - Brynmenyn CF32 9TZ BRIDGEND - WALES Tel: 01656 721 001 Fax: 01656 720 006...
- Page 10 Rada Sense Shower T3 DMV PRODUCT MANUAL IMPORTANT Installer: This Manual is the property of the customer and must be retained with the product for maintenance and operational purposes.
- Page 11 CONTeNTS DeSCRIPTION ..................3 SAFeTY : WARNINGS ................3 PACK CONTeNTS ..................4 SPeCIFICATION ..................5 Standards and Approvals ..............5 Additional Information for Type 2 and 3 Installations ......6 Supply Conditions ................6 INSTALLATION ..................6 POWeR SUPPLY UNIT (PSU) ..............8 RADA SeNSe CONTROL PANeL ............
-
Page 12: Description
DeSCRIPTION A range of concealed 1/2” digital mixing valves (DMV) with wall mounted no-touch control panel for flow and temperature control. Functions include timed flow control, duty flush and thermal disinfection. SAFeTY : WARNINGS The function of this DMV is to deliver water consistently at a desired temperature. This requires that: It is installed, commissioned, operated and maintained in accordance with the recommendations given in this Manual. -
Page 13: Pack Contents
PACK CONTeNTS 1 x Shower Control Panel Magnetic Key Suppression Ferrite 1 x Digital Mixing Valve (DMV) 4 x Fixing Screws 4 x Wall Plugs 6 x Rubber Feet 1 x Power Supply Unit (PSU) ... -
Page 14: Specification
SPeCIFICATION Standards and Approvals This Rada Sense digital mixing valve (DMV) complies with all relevant directives for CE marking. The Rada Sense DMV is a type 1 electronic, independently mounted control for surface mounting. General Pollution Degree Rated Impulse Voltage Mains Supply - 2.5 kV 12 V DC supply to valve - 500 V Suitability for Drinking... -
Page 15: Additional Information For Type 2 And 3 Installations
Additional Information for Type 2 and 3 Installations To achieve the safe water temperatures expected of approved valves, it is essential that the valves are used only for the applications covered by their approved designations, with the appropriate water supply pressures and temperatures, and it is commissioned and maintained in accordance with the recommendations contained in this guide. - Page 16 To mains power supply 3 amp switched fused spur box Suppression Ferrite, Outlet refer to Note. Metal pipework must be Control panel Hot inlet Cold inlet earth bonded Showerhead Note! The Data Cable must be placed through the Suppression Ferrite and then looped around the cover.
-
Page 17: Power Supply Unit (Psu)
Outlet Outlet Outlet Hot inlet Hot inlet Cold inlet Hot inlet Cold inlet Cold inlet Mounting on a Mounting on a Vertical Surface Horizontal Surface Note! If the DMV is installed in a different orientation to those shown above, it may cause the DMV to malfunction e.g. -
Page 18: Rada Sense Control Panel
RADA SeNSe CONTROL PANeL The Rada Sense Control Panel MUST NOT be installed in areas where high frequency lighting is used. Certain types of compact fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. -
Page 19: Rada Sense (Dmv)
RADA SeNSe (DMV) Template Short Cable Connection for the Control Panel PSU Cable Connection Moulded Grommet Note! After installing the PSU and Control Panel cables, if necessary, Cable from the carefully push the wires between the Control Panel grommet and connector to one side. Cable from the DMV Outlet... -
Page 20: Commissioning
COMMISSIONING Commissioning must be carried out in accordance with these instructions, and must be conducted by designated, qualified and competent personnel. Note! For Healthcare Installations, all results must be recorded. Restore the water supply and check that there are no leaks. Restore the power supply. -
Page 21: Maximum Temperature Setting
Maximum Temperature Setting The maximum blend temperature obtainable by the user is limited to prevent accidental selection of a temperature that is too hot. The DMV is fully performance tested and the maximum temperature is factory preset, refer to SPeCIFICATIONS. Provided that the installation conditions comply with the operating parameters given in the specifications section of this manual, the maximum temperature should not require adjustment. -
Page 22: Operation
OPeRATION Position your hand anywhere in front of the control panel to activate the DMV. Water is delivered at a default temperature, refer to SPeCIFICATIONS. Note! The sensors are designed to operate at a distance of up to 30 mm. There is no need for the user to touch the control panel. -
Page 23: Cleaning
CLeANING The Rada Sense Control Panel may be temporarily disabled for cleaning purposes. Place the magnetic key (supplied) over the programming window. This will disable the sensors for 30 minutes or until the magnetic key is reapplied. External surfaces may be wiped clean with a soft cloth, and if necessary, a mild washing-up type detergent or soap solution can be used. -
Page 24: Fault Diagnosis
FAULT DIAGNOSIS Maintenance must be conducted by designated, qualified and competent personnel. Warning! Isolate power supply and water supply when any maintenance work is carried out on the DMV. The DMV may contain hot water, so care must be taken when draining the DMV of any residual water. - Page 25 Symptom Cause/Rectification 5. Fluctuating or a. The inlet/outlet fittings may be restricted : check the inlet/ reduced flow rate. outlet strainers, refer to PLANNeD MAINTeNANCe. Normal function b. The water outlet pressure is low : check the flow rate is of mixing valve above the stated minimum, refer to SPeCIFICATION.
-
Page 26: Self-Diagnostic Errors
Self-diagnostic errors Error code is displayed by a combination of lit LED’s All three LED’s flash at the same time Symptom Cause/Rectification The Control Panel and the DMV are not compatible. a. DMV W or B requires CP W: check and rectify. If the symptom has not been rectified, contact your Local Service Engineer or Agent. -
Page 27: Planned Maintenance
PLANNeD MAINTeNANCe Malfunction of the DMV is almost always progressive in nature and will be detected by the use of proper temperature checking and maintenance routines. Certain types of system can result in the DMV having excessive ‘dead-legs’ of pipework, or auxiliary cold water supply added to the mixed water from the mixing valve. -
Page 28: Frequency Of In-Service Tests
Frequency of In-service Tests Healthcare Follow the procedure detailed in the flow diagram “In-service Test Procedure”. This procedure must be followed 6 to 8 weeks after commissioning and 12 to 15 weeks after commissioning. The recorded blend temperature from these two tests will (Tb) determine the maximum frequency for future service intervals. - Page 29 Start Measure and record supply temperatures, pressures and make sure that they are within the valve specification. Measure and record blend temperature (Tb) and flow rate. flow rate fallen Check and clean checkvalves, significantly or fallen below strainers and outlets. minimum flow specification Measure and record blend...
-
Page 30: Checkvalves And Filters
Checkvalves and Filters Warning! The DMV may contain hot water, so care must be taken when draining the valve of any residual water. Isolate the supplies to the DMV and operate the control panel to release pressure and to assist the draining of residual water. Note! The DMV have checkvalve and filter packs (cartridge assemblies) or checkvalves and strainers fitted. - Page 31 463.93 463.28 463.04 463.26 463.43 463.02 463.07 463.28 464.04 463.31 463.27 463.25 463.28 463.28 463.09 464.03 463.17 463.28 463.37 463.06 463.84 463.74 463.77 463.82 463.83 464.29 463.79...
-
Page 32: Spare Parts
SPARe PARTS Note! If fixing screws, grommets, ‘O’ rings or seals are disturbed, these parts will be included with the spare part. 463.02 C4 Valve Assembly - Includes Stepper Motor, Stepper Loom, Checkvalve and Filter Pack, Inlet Saddle Clamps and Thermistor Clip 463.04 Stepper Motor Assembly - Includes Timing Belt 463.05... -
Page 33: Customer Care
CUSTOMeR CARe Guarantee of Quality Kohler Mira Ltd. guarantee this product against any defect in materials or workmanship for the period of fi ve years from the date of purchase, covering all parts, labour for the fi rst year and replacement parts only for the next four years.
