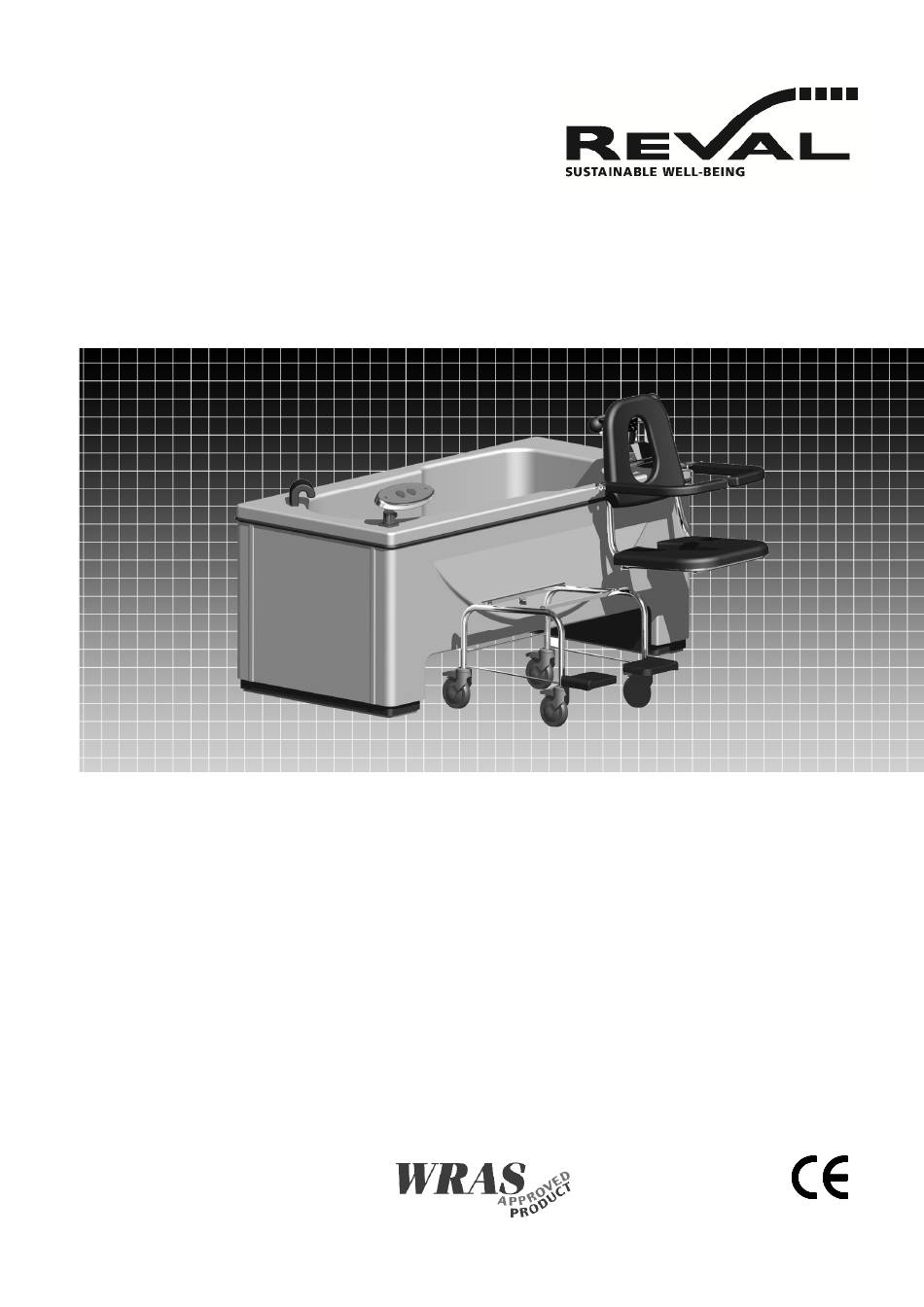

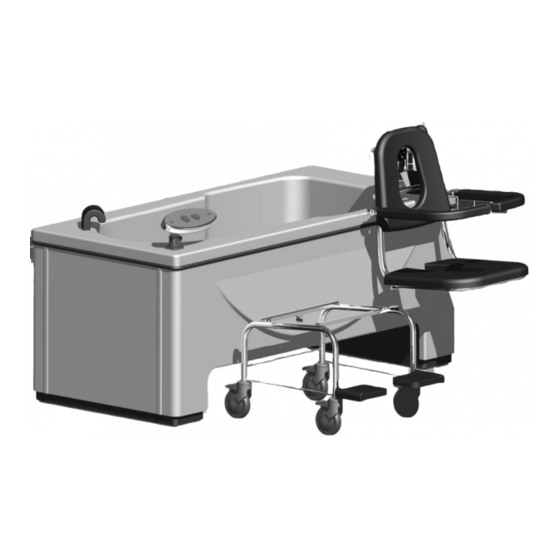

- Page 1 EN Instruction manual Baignoire à Hauteur Variable avec Lève-personne Variable Height Bath and Integral Transfer System Caprice 7101.01 UK 7101.02 UK...
-
Page 2: Table Of Contents
SUMMARY CONTENTS PAGES DIMENSIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DESCRIPTION / HAND CONTROL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TECHNICAL SPECIFICATIONS... -
Page 3: Dimensions
DIMENSIONS 2/18... -
Page 4: Description / Hand Control
DESCRIPTION Drain plug control Filling spout & overflow Rada Sense Locking mechanism Control Flow adjustment Seating chassis Safety armrests Seating system HAND CONTROL Seat height function Seat lowering function Rotation to transfer Rotation to bath Tub height function Tub lowering function Automatic transfer to trolley : Automatic transfer to bath : Sequence A:... -
Page 5: Technical Specifications
Reval customer services. Also, Reval Reserves the right to change or modify its documentation, and product at any time without prior notification, for full details of our standard terms and conditions, please contact Reval Customer Services on 01656 721 001! -
Page 6: Operation / Safety
OPERATION Variable height adjustment is via dual 24V synchronised actuators. Raise and lower function of the integral hoist is via a single 24V actuator. Rotate function via a single 24V actuator. 8 function hand control pendent controls - seat rotation/ seat rise and lower - variable tub height – automatic cycle for transfer and bath Electric Jacks are controlled via an electronic control box installed with unique software Designed specifically for the Caprice appliance. -
Page 7: Safety Instructions And Warnings
To ensure safe operation, read this manual carefully. Please pay particular attention to sections explaining "Safety Instructions and Warnings", before installing, operating, or servicing this equipment. If in any doubt contact Reval Continuing Care Ltd for more details +44 (0)1656 721 001) or assistance do not take a chance! Failure to comply with warnings in this manual may result in injury! Keep this manual with the tub and refer to it as required. -
Page 8: Initialisation Procedure Of The Control Box Software
INITIALISATION PROCEDURE OF THE CONTROL BOX SOFTWARE Whenever an actuator is connected/re-connected to the CB an initialisation should be performed. The end stop is used as a reference for the actuator position and all further movement is made referring to this end stop position. -
Page 9: Directions For Use
DIRECTIONS FOR USE __________________________________________________________________________________________________ WARNING: This symbol is intended to alert the user to hazards or unsafe practices which could result in serious bodily harm. CAUTION: This symbol is intended to alert the user of the presence of important operating and maintenance instructions which could prevent product damage or possible personal injury. -
Page 10: Raising The Seating System
DIRECTIONS FOR USE RAISING THE BATH SEAT To raise the seating system press the UP button on the hand control until endstop Seat rise button (sound signal) SEAT ROTATION To rotate the seating system to go out the bath press the ROTATE button until endstop (sound signal) to go in the bath BATH HEIGHT ADJUSTMENT... -
Page 11: Temperature Control
THERMIC DESINFECTION The « rada sense » control box is equipped with a system of thermic disinfection for its pipes, which is controlled by a PDA. Only a recognised technician can do this operation, so please call REVAL CC. 10/18... -
Page 12: Drain Plug Operation
DIRECTIONS FOR USE DRAIN PLUG OPERATION Turn the button lever in a clockwise direction to close the drain plug and anti clockwise to open it OPEN CLOSE HYDRO-MASSAGE (OPTION) A compressor drives variable flow control hydro-massage system (optional). Heated air is blown under pressure with adjustable flow control via 12 diffuser nozzles equipped with anti-return valves integrated in to the bottom of the bath tub. -
Page 13: Chromotherapy (Optional)
There are several lighting sequences that will create the perfect atmospheric sensation. This coupled with Reval's Hydro- Aromatherapy system deliver the ultimate in bathing comfort, relaxation and rehabilitation. -
Page 14: Hydro-Aromatherapy (Optional)
The auto-clean function significantly reduces the risk and development of micro -biological organisms that can develop in humid and wet environments. Reval's unique air ducting system can be dismantled without the need for tools and can be termically cleaned during routine servicing in a matter of minutes. -
Page 15: Audio Spa (Optional)
DIRECTIONS FOR USE AUDIO SPA (OPTION) The “Audio spa” option consists of two loudspeakers, a waterproof amplifier, a MP3 player and a control panel including the commands "One / Off" and "volume" as well as an embeded box with removable panel allowing to receive and to connect the MP3 player. -
Page 16: Maintenance
Disinfection The appliance is supplied with a hand held spray applicator which should be used to apply REVAL disinfectant BFR 0.4 The applicator hold 600 ml of diluted disinfectant sufficient to thoroughly clean and disinfect the appliance. Reval disinfectant is specifically designed to clean and disinfect your appliance whilst protecting it’s the smooth polished gel coat finish. -
Page 17: Cleaning Procedure - Air Whirlpool System
MAINTENANCE CLEANING THE HYDRO-MASSAGE DIFFUSERS For the efficient functioning of the whirlpool system, the nozzles have to be cleaned on a regular basis(at least once a year). Functioning of a whirlpool’s nozzle. Air is lown through the nozzle an dis discharged under the chromed air jet cap. CAPSULE CHROMEE BUSE... -
Page 18: Periodic Inspection
4) If in any doubt contact Reval Continuing Care Ltd for further help and assistance. Any feedback provided by the Reval or the service provider should be recorded in the service logbook for future reference. -
Page 19: Maintenance Form (Logbook)
MAINTENACE FORM (LOGBOOK) 18/18... - Page 20 Usseau 17220 Sainte Soulle Tel: (33) 05.46.42.04.16 Fax: (33) 05.46.43.06.38 www.groupe-reval.com UNITED KINGDOM : Reval® Continuing Care Limited Unit 17 Brynmenyn Busines Centre St Theodore's Way - Brynmenyn CF32 9TZ BRIDGEND - WALES Tel: 01656 721 001 Fax: 01656 720 006...
