Summary of Contents for Wybron PS-150

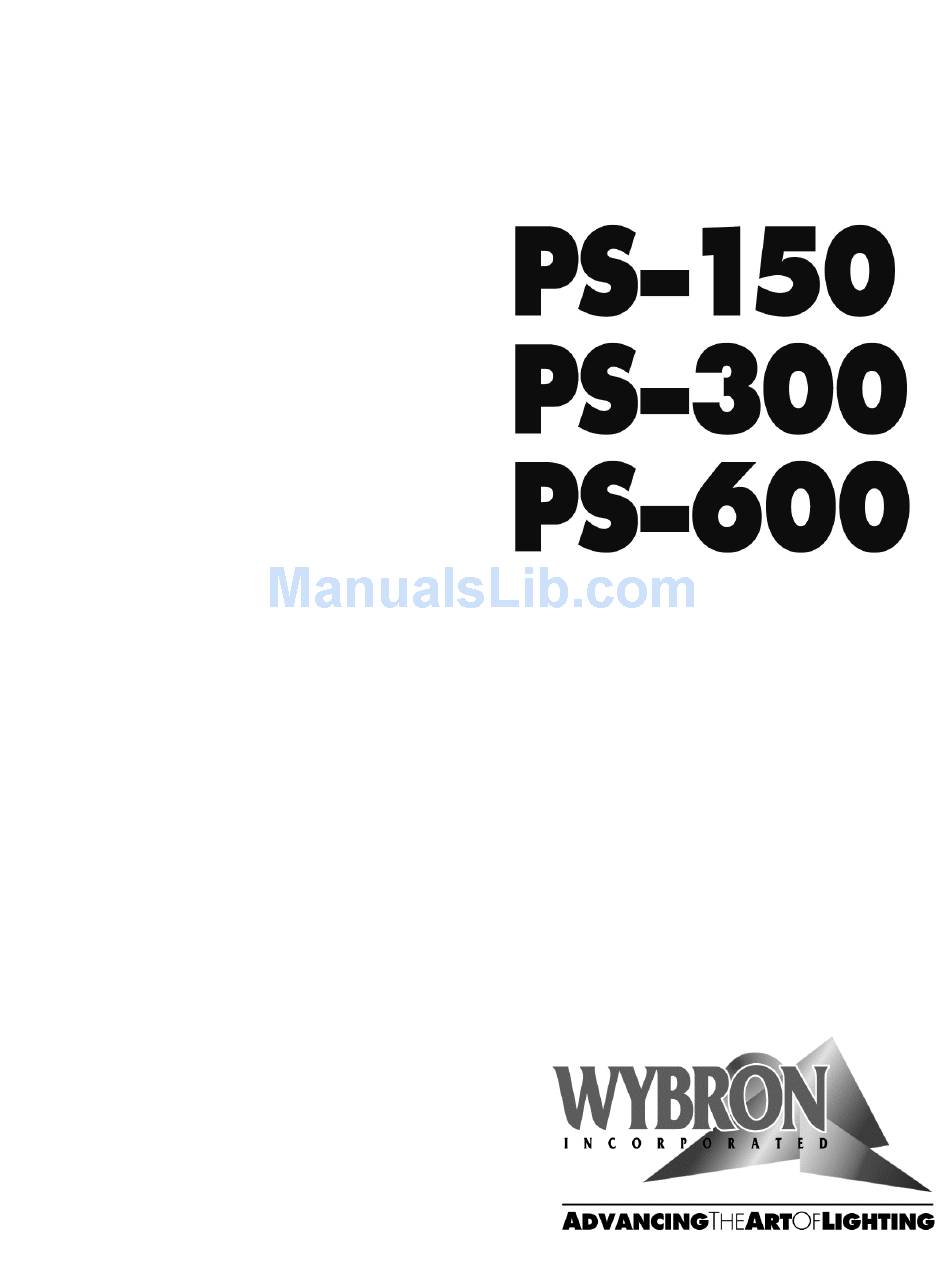

  • Page 1 Power Supplies User Manual...
  • Page 2: Table Of Contents

    PS-150 – Model #20150 (150 watts) PS-300 – Model #20300 (300 watts) PS-600 – Model #20600 (600 watts) Software version 1.0 Manual revision: March 15, 2006 CONTENTS Declaration of Conformity ...3 Safety Information ...4 Introduction ...8 System Components ...8 PS Power Supply ...8 Compatible Devices ...8...
  • Page 4: Safety Information

    WARNING: THIS EQUIPMENT MUST BE EARTHED. For questions, contact Wybron at 1-800-624-0146 or visit www.wybron.com. Wybron, Inc. products are designed and manufactured to meet the requirements of United States and International safety standards. Modifications to the products could affect safety and render the product non-compliant to relevant safety standards.
  • Page 5 Pour les questions, Wybron de contact à 1-800-624-0146 ou visite www.wybron.com. L’Avertissement de Modification de Produit Les produits de Wybron, Inc. sont conçus et a fabriqué pour rencontrer les conditions d’Etats-Unis et de norms de sûreté internationals. Les modifications aux produits pourraient affecter la sûreté...
  • Page 6 Para preguntas, el contacto Wybron en 1-800-624-0146 o visita www.wybron.com. Advertencia de Modificación de Producto Wybron, los productos S.a. se diseñan y son fabricados para encontrar los requisitos de Estados Unidos y estándares Internacionales de seguridad. Las modificaciones a los productos podrían afectar la seguridad y rendir el producto no conformista a estándares...
  • Page 7 WARNUNG – DIESE AUSRÜSTUNGEN MUSS EARTHED WERDEN. Für Fragen Kontakt Wybron an 1-800-624-0146 oder besucht www.wybron.com. Wybron, Inc. Produkte sind entworfen und sind hergestellt, die Voraussetzungen von Vereinigten Staaten und Internationalen Sicherheitsstandards zu erfüllen. Änderungen zu den Produkten könnten Sicherheit beeinflussen und könnten das Produkt leisten das verordnungswidrig ist zu relevanten Sicherheitsstandards.
  • Page 8: Introduction

    Damage from such action will not be covered by the equipment warranties. Compatible Devices At the time of printing of this manual, the PS-150, PS-300 and PS-600 Power Supplies are only for use with the following devices: • Nexera LX •...
  • Page 9: System Layout Diagram

    Supplies and the companion devices. This is current as of the print date of this manual. As more products are added to the compatible line, an updated list will be available on the Wybron website at www.wybron.com. Power Supply: Model Number:...
  • Page 10: Installing/Connecting The Power Supply

    The rack mount kit will accommodate two power supplies side by side. Connect the device to the power supply Connect the device to the power supply using a 4-pin Wybron Power/Data cable. Refer to the HEAD-FEET RESTRICTION section of the manual for details of the length of cable runs.
  • Page 11: Head-Feet Restrictions

    Connect and set the DMX512 source Connect the DMX512 signal source to the DMX input connector on the front of the power supply using standard DMX cable. The DMX signal will be indicated by a flashing green LED. The DMX signal will now position the gelstrings/vanes according to their respective DMX signal levels.
  • Page 12 Note: Use the supplied thumb screws to clamp the hanger brackets to the desired pipe or truss. Power supply rack mounting The rack mount accessory can be used with up to two power supplies and allows them to be mounted into a 19-inch rack. Follow these steps to install the power supply into the rack mounting tray.
  • Page 13: Cables

    Cables Power/Data Cable The Power/Data Cable uses 4-pin XLR connectors on either end and consists of two 14 AWG conductors and a 22 AWG twisted, shielded pair. The shells of the two XLR connectors are not electrically connected together -- this prevents large power currents from flowing from chassis to chassis of the equipment.
  • Page 14: Specifications

    Specifications PS-150, PS-300 and PS-600 Power Supply Connectors: DMX in: Male 5-pin XLR DMX out: Female 5-pin XLR Output: Female 4-pin XLR DMX512 termination: None – DMX signal pass thru Fuse: PS-150 (model 20150): Input voltage: 100-240V ~ 50/60 Hz 3-1.5A...
  • Page 15: Parts List

    Parts List To order any of the following items, contact your authorized WYBRON dealer. The PS Power Supplies 20150... PS-150 20300... PS-300 20600... PS-600 The PS Mounting and Installation Accessories 715-01-03P ... PS-150, PS-300 and PS-600 hanger bracket SCRWC252075... Wing screw for power supply hanger SCRSC2520037...
  • Page 16: Warranty Information

    Warranty Information WYBRON, INC. warrants to the original owner or retail customer that for a period of one year from date of delivery of a portable system or energization of a permanently installed system (up to a maximum of 18 months from delivery) its products will be free from defects in materials and workmanship under normal use and service.
