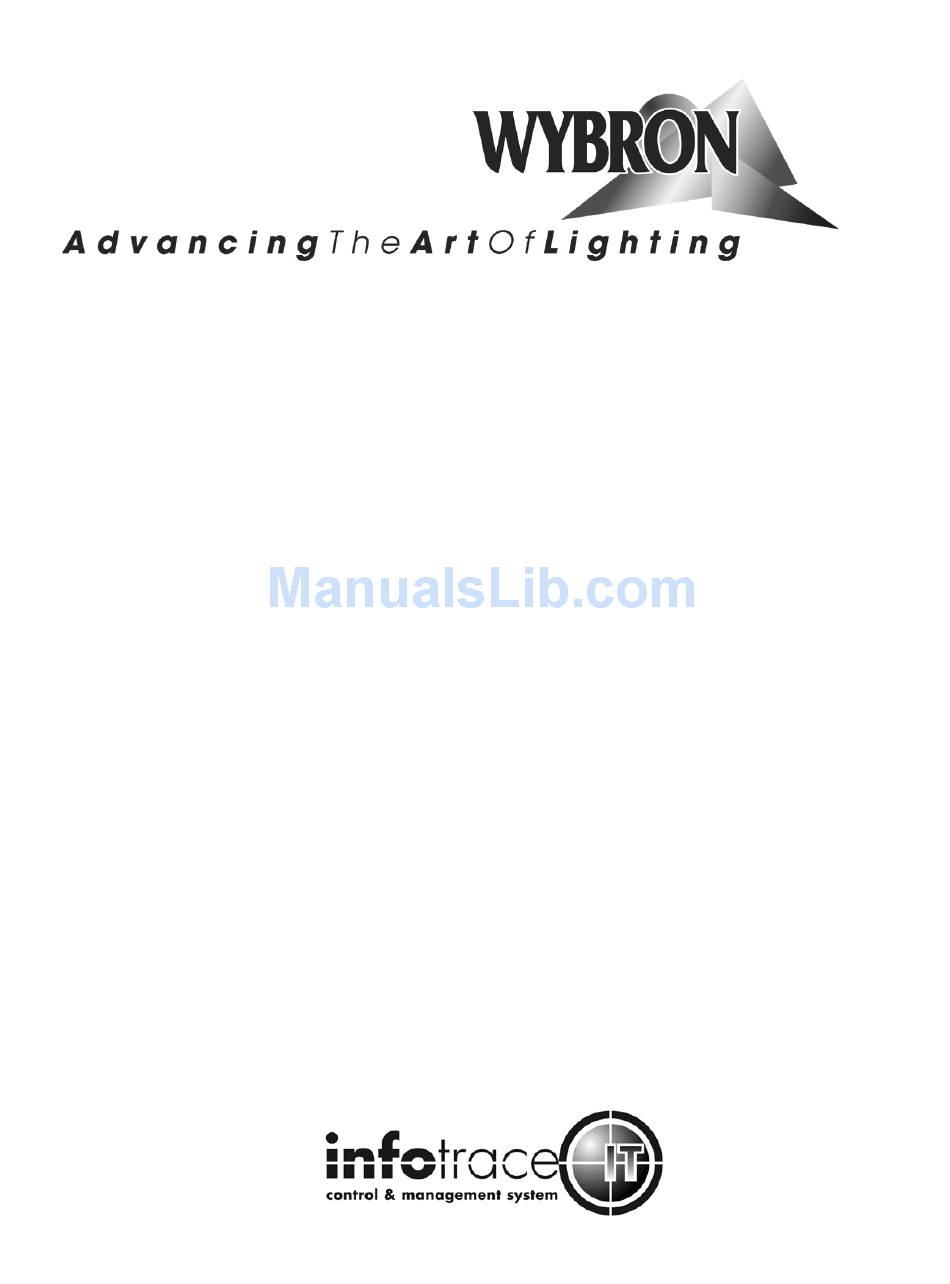

  • Page 1 Net IT Net IT PS600 User Manual...

  • Page 2: Table Of Contents

    20620 Net-IT 20610 Net-IT PS-600 Net-IT software version: 1.02 (with Infogate V2.25) Manual issue date: April 1, 2010 Table of Contents Safety Notice...3 Introduction...7 Quick Start Guide ...8 Net-IT Connection Diagram ...12 Net-IT PS-600 Connection Diagram ...13 Front and Back Panels...14 Net-IT Operation ...16 Net-IT PS-600 Head-Feet Restrictions ...18 InfoTrace RDM System Overview ...20...

  • Page 3: Safety Notice

    For questions, contact Wybron at 1-800-624-0146. Product Modification Warning Wybron, Inc. products are designed and manufactured to meet the requirements of United States and International Safety standards. Modifications to the products could affect safety and render the product non-compliant to relevant safety standards.
  • Page 4 Pour les questions, Wybron de contact à 1-800-624-0146 ou visite www.wybron.com. L’Avertissement de Modification de Produit Les produits de Wybron, Inc. sont conçus et a fabriqué pour rencontrer les conditions d’Etats-Unis et de norms de sûreté internationals. Les modifications aux produits pourraient affecter la sûreté et rendent le produit non-conciliant aux normes de sûreté...
  • Page 5 Para preguntas, el contacto Wybron en 1-800-624-0146 o visita www.wybron.com. Advertencia de Modificación de Producto Wybron, los productos S.a. se diseñan y son fabricados para encontrar los requisitos de Estados Unidos y estándares Internacionales de seguridad. Las modificaciones a los productos podrían afectar la seguridad y rendir el producto no conformista a estándares pertinentes de seguridad.
  • Page 6 Für Fragen Kontakt Wybron an 1-800-624-0146 oder besucht www.wybron.com. Produktänderungswarnung Wybron, Inc. Produkte sind entworfen und sind hergestellt, die Voraussetzungen von Vereinigten Staaten und Internationalen Sicherheitsstandards zu erfüllen. Änderungen zu den Produkten könnten Sicherheit beeinflussen und könnten das Produkt leisten das verordnungswidrig ist zu relevanten Sicherheitsstandards.

  • Page 7: Introduction

    The Net-IT PS-600 is three products in one as it adds the functionality of a Wybron PS-600 power supply for powering Wybron fixtures such as Coloram IT, CXI IT, and Eclipse IT.

  • Page 8: Quick Start Guide

    The Net-IT ships with a default static IP address that is unique for each unit shipped. Upon powering the unit, you will see the default IP address and sub-net mask on the front panel backlit display. Press the front panel Page button to scroll through the information to find the IP address for the following procedure.
  • Page 9 byte of the IP address. When the Network Switch is in the OFF position the unit will use an IP address of 2.x.x.x. When the switch is on it will use an address of 10.x.x.x per the Art-Net standard. You can override this address convention by manually entering a full IP address.
  • Page 10 Sample Web page for Art-Net configuration...
  • Page 11 Sample Web page for E1.31 configuration...

  • Page 12: Net-It Connection Diagram

    Net-IT Connection Diagram Wybron Powered 4 pin Lighting console 5 pin DMX Wybron PS-600 Ethernet Universe A Universe B Infogate Software Net-IT...

  • Page 13: Net-It Ps-600 Connection Diagram

    Net-IT PS-600 Connection Diagram Lighting console 5 pin DMX Ethernet Universe A Wybron Powered 4 pin Universe A Infogate Software Net-IT PS-600 Universe B...

  • Page 14: Front And Back Panels

    There are two 5-pin XLR output ports located on the unit. These are labeled “Port A” & “Port B” and output DMX/RDM on two universes. The Net-IT PS-600 has six 4-pin XLR connectors for connecting Wybron products. They transfer Universe A data and 24 volt DC power.
  • Page 15 Front Back LCD Screen Page button RDM A LED RDM B LED Line Speed 100Mbps DMX A output DMX B output Ethernet connector Power LED 10 DMX A LED 11 DMX B LED 12 Fuse 250V 1.0A slo blow...

  • Page 16: Net-It Operation

    Net-IT sample screens in Art-Net mode. ArtNet Name Wybron Net-IT InfoTrace Name ArtNet Gtway Infotrace connected: Yes Network Protocol: Art-Net The front panel display shows the current settings. Changing most of the settings is done through the Net-IT web page. To get to the web page read the IP address off the display, open a browser on your PC or Mac, and enter the IP address in the top line of the browser.
  • Page 17 Setting the DMX Universes On the web page go the DMX A or B Universe field and enter a universe number. Then click Submit. For Art-Net you may also select the DMX subnet and network switch. In Art-Net there are a possible 256 universes that are selected through 16 subnets which each contain 16 universes.

  • Page 18: Net-It Ps-600 Head-Feet Restrictions

    Net-IT PS-600 Head-Feet Restrictions The HEAD-FEET parameter is a method of accounting for the voltage drop in the power/signal cable caused by the current drawn by each device. To help understand this issue, think of it as water pressure (voltage) in a hose (cable) where you have multiple water sprinkler heads (color changers).
  • Page 19 The following is a chart of capacity of the Net-IT PS-600 for the companion devices. Description Model NexeraLX - 2560, tungsten 2570 NexeraLX - 2580, 2600 Forerunner – 4540 4 inch 7140 Coloram IT 84520 4 & 7.5 87110 Coloram IT 10 810100 CXI IT 4 &...

  • Page 20: Infotrace Rdm System Overview

    Remote Device Management (RDM), to facilitate remote addressing and diagnostics for potentially every piece of equipment mounted on a rig. Net-IT works with all Wybron IT products and all RDM-compatible equipment from any manufacturer.

  • Page 21: Troubleshooting

    Troubleshooting Problem Net-IT will not connect to my Art-Net or E1.31 network. Solution On the Net-IT display, read the IP address and subnet mask. Verify what the IP address and subnet mask is of your network. If they are different, then connect the Net-IT directly to a PC or MAC with an Ethernet crossover cable.
  • Page 22 If you cannot scroll through the page feature then the software has been corrupted, call Wybron Tech support Recycle the power on the Net IT The user will need to re-flash the Net-IT software For questions concerning Net-IT and any other Wybron products please contact Tech support at 719-548-9774.

  • Page 23: Cables

    Power/Data Cable The Power/Data Cable uses 4-pin XLR connectors on either end and consists of two 14 AWG conductors and a 22 AWG twisted, shielded pair. The shells of the two XLR connectors are not electrically connected together -- this prevents large power currents from flowing from chassis to chassis of the equipment.

  • Page 24: Appendix A - Definitions, Acronyms And Abbreviations

    Ethernet – A high speed serial communications network used throughout the industry. InfoTrace – Wybron’s information control and management system that provides two way communication and control for everything on a lighting rig.

  • Page 25: Warranty Information

    Warranty Information WYBRON, INC. warrants to the original owner or retail customer that for a period of one year from date of delivery of a portable system or energization of a permanently installed system (up to a maximum of 18 months from delivery) its products will be free from defects in materials and workmanship under normal use and service.

  • Page 26: User Manual Revision History

    User Manual Revision History Date Author 4/1/2010 Paul Geisler Description Original release...
