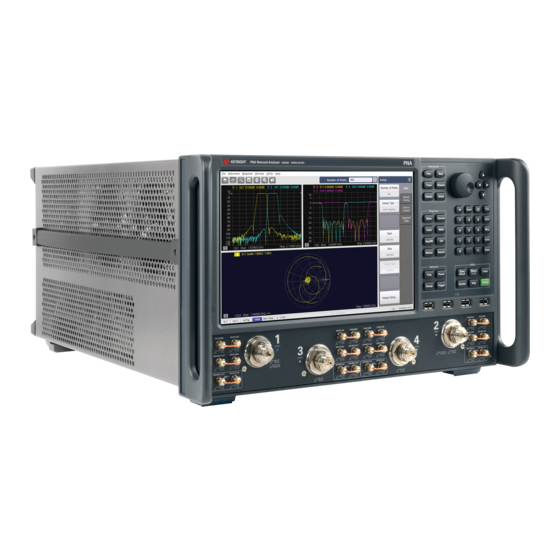

- Page 1 Keysight Add 4-Port Capability Upgrade Kit To Upgrade PNA N5224B or N5225B Option 201 to Option 401 Upgrade Kit Order Numbers: N5224BU- 601 and N5225BU- 601 Keysight Kit Number: N5225-60117 Installation Note...
- Page 2 THESE TERMS, THE WARRANTY beyond those set forth in the TERMS IN THE SEPARATE EULA shall apply, except to the © Keysight Technologies, Inc. 2011 - AGREEMENT WILL CONTROL. extent that those terms, rights, or 2018 licenses are explicitly required...
- Page 3 Keysight Add 4-Port Capability Upgrade Kit Upgrade Kit Number: N5225-60117 Installation Note Description of the Upgrade This upgrade converts your N5224B or N5225B Option 201 2-port analyzer to a N5224B or N5225B Option 401 4-port analyzer by adding: — an additional source —...
- Page 4 Description of the Upgrade Getting Assistance from Keysight Getting Assistance from Keysight Installing this upgrade kit requires special skills and experience. If you think you may not be qualified to do the work, or need advice, contact Keysight. Contacting Keysight Assistance with test and measurements needs and information on finding a local Keysight office are available on the Web at: http://www.keysight.com/find/assist...
- Page 5 Description of the Upgrade Getting Prepared Getting Prepared The PNA contains extremely sensitive components that can be ruined if mishandled. Follow instructions carefully when making cable connections, especially wire harness connections. The person performing the work accepts responsibility for the full cost of the repair or replacement of damaged components.
- Page 6 Description of the Upgrade Getting Prepared — From the certificate — Order number — Certificate number — From your instrument (Instrument information is available in the network analyzer - on the toolbar, click Help, then click About Network Analyzer.) — Model number —...
- Page 7 Description of the Upgrade Getting Prepared Description Keysight Part Number ESD heel strap (for use with conductive floors) 9300-1308 Tools Required for the Installation Description Part Number T-6 TORX driver - set to 4 in-lbs (0.45 N.m) T-10 TORX driver - set to 9 in-lbs (1.02 N.m) T-20 TORX driver - set to 21 in-lbs (2.38 N.m) 5/16-in (8 mm) nutsetter or open end torque wrench - set to 10 in-lbs (1.13 N.m)
- Page 8 Items Included in the Upgrade Kit Items Included in the Upgrade Kit Check the contents of your kit against the following list. If any part is missing or damaged, contact Keysight Technologies. Refer to “Getting Assistance from Keysight” on page...
- Page 9 Description of the Upgrade Items Included in the Upgrade Kit Table 1 Contents of Upgrade Kit N5225-60117 Description Part Number Desig. Front panel overlay (label), 4-port N5227-80020 Dress panel, lower 4-port N5240-00009 Gap pad (between mixer brick A28 and shield) N5245-20125 Gap pad (between each test coupler and the test set front plate) E4403-20033...
- Page 10 Description of the Upgrade Items Included in the Upgrade Kit Table 1 Contents of Upgrade Kit N5225-60117 Description Part Number Desig. RF cable, A33 port 1 coupler to front-panel Port 1 CPLR ARM N5245-20014 RF cable, A30 port 3 rcvr coupler to front-panel Port 3 SOURCE OUT N5245-20051 RF cable, Front panel port 3 CPLR THRU to A34 port 3 coupler N5245-20098...
- Page 11 Description of the Upgrade Items Included in the Upgrade Kit Table 1 Contents of Upgrade Kit N5225-60117 Description Part Number Desig. RF cable, A14 frequency reference board J7 to A17 13.5 GHz (source 2) synthesizer N5242-60030 board J5 (Located on bottom of board.) Ribbon cable, A23 test set motherboard J552 to A28 mixer brick (2) J52 N5247-60015 Extra quantities of items such as protective plastic caps, screws, cable ties,...
- Page 12 Description of the Upgrade Installation Procedure for the Upgrade Installation Procedure for the Upgrade The network analyzer must be in proper working condition prior to installing this option. Any necessary repairs must be made before proceeding with this installation. This installation requires the removal of the analyzer’s protective outer covers.
- Page 13 Description of the Upgrade Installation Procedure for the Upgrade “Step 23. Reinstall the A23 Test Set Motherboard.” “Step 24. Install Cable on the A23 Test Set Motherboard.” “Step 25. Replace the Front Panel’s Lower Dress Panel.” “Step 26. Reinstall Front Panel Assembly.” “Step 27.
- Page 14 Description of the Upgrade Installation Procedure for the Upgrade Step 3.Remove the Inner Cover For instructions, click the Chapter 7 bookmark “Removing the Covers” in the PDF Service Guide Step 4.Remove the Front Panel Assembly For instructions, click the Chapter 7 bookmark “Removing and Replacing the Front Panel Assembly”...
- Page 15 Description of the Upgrade Installation Procedure for the Upgrade — W62 (N5242-60025) A27 mixer brick (R1) to A24 IF multiplexer (P601) — W63 (N5242-60026) A27 mixer brick (R2) to A24 IF multiplexer (P801) — W70 (N5247-60024) A24 IF multiplexer board P203 to A16 SPAM board J5 —...
- Page 16 Description of the Upgrade Installation Procedure for the Upgrade Figure 1 A26 and A27 Test Port Bridge Assembly Installation Note N5225-90117...
- Page 17 Description of the Upgrade Installation Procedure for the Upgrade 2. Follow the two instructions shown in Figure Figure 2 A26 and A27 Test Port Bridge Assembly 3. Follow the two instructions shown in Figure Installation Note N5225-90117...
- Page 18 Description of the Upgrade Installation Procedure for the Upgrade Figure 3 A26 and A27 Test Port Bridge Assembly 4. Connect the gray flexible cables to the A28 mixer in the order shown in Figure 4. The other ends of the cables will be connected when the IF board is reinstalled later.
- Page 19 Description of the Upgrade Installation Procedure for the Upgrade Figure 4 A26 and A27 Test Port Bridge Assembly Installation Note N5225-90117...
- Page 20 Description of the Upgrade Installation Procedure for the Upgrade Step 9. Install the A27/A28 Mixer Brick Assemblies Reinstall the A27 mixer brick cables, and then install the A27/A28 mixer brick assembly, reusing the four existing screws. For instructions, click the Chapter 7 bookmark, “Removing and Replacing the A27 and A28 Mixer Bricks”...
- Page 21 Description of the Upgrade Installation Procedure for the Upgrade Figure 6 A35 Receiver Coupler Port 4 Assembly Installation Note N5225-90117...
- Page 22 Description of the Upgrade Installation Procedure for the Upgrade Step 11.Install the A34 and A35 Receiver Coupler Assemblies Follow the instructions shown in Figure 7. New parts are listed in Table 1 on page 8 of this document. Figure 7 A34 and A35 Receiver Coupler Assemblies Installation Installation Note N5225-90117...
- Page 23 Description of the Upgrade Installation Procedure for the Upgrade Step 12.Assemble the A33 - A36 Test Port Coupler Assemblies 1. Remove the A33 test port 1 coupler and A36 test port 2 coupler from the PNA. For instructions, click the Chapter 7 bookmark, “Removing and Replacing the A33 - A36 Test Port Couplers”...
- Page 24 Description of the Upgrade Installation Procedure for the Upgrade Step 13.Install the LED Boards and Test Port Coupler Assemblies to the 4-Port Test Set Front Plate 1. Remove two screws from each LED board and remove the boards from the 2-port test set front plate of the PNA.
- Page 25 Description of the Upgrade Installation Procedure for the Upgrade Step 14.Install the 4-Port Coupler Plate Assembly to the Deck Follow the four instructions shown in Figure Figure 10 Coupler Plate Assembly Installation Installation Note N5225-90117...
- Page 26 Description of the Upgrade Installation Procedure for the Upgrade Step 15.Assemble and Install the A12 and A13 40 GHz Doubler Assemblies Follow the instructions shown in Figure Figure 11 A12 and A13 40 GHz Doubler Installation 1250-4261 Installation Note N5225-90117...
- Page 27 Description of the Upgrade Installation Procedure for the Upgrade Step 16.Install Bracket to A10 Source Assembly Follow the two instructions shown in Figure Figure 12 A10 Source 2 Assembly Bracket Installation Step 17.Assemble the A10 26.5 GHz Source 2 Assembly Follow the two instructions shown in Figure Installation Note N5225-90117...
- Page 28 Description of the Upgrade Installation Procedure for the Upgrade Figure 13 A10 Source 2 Assembly Step 18.Install the A10 26.5 GHz Source 2 Assembly and Cables Follow the four instructions shown in Figure Installation Note N5225-90117...
- Page 29 Description of the Upgrade Installation Procedure for the Upgrade Figure 14 A10 Source 2 Assembly Installation Step 19.Install the A17 13.5 GHz (Source 2) Synthesizer Board and Cables 1. Install new gray cable W77 (N5242-60030) to connector J5 of the new A17 (source 2) synthesizer board (N5240-60074).
- Page 30 Description of the Upgrade Installation Procedure for the Upgrade 4. Connect the loose end of new gray flex cable W77 (N5242-60030) on the A14 frequency reference board (J7). (The other end of this cable was previously connected to J5 of the source 2 synthesizer board.) Step 20.Install the Cable Bracket Mount 1.
- Page 31 Description of the Upgrade Installation Procedure for the Upgrade — W70 (N5242-60013) A24 IF multiplexer board P203 to A16 SPAM board J2 — W72 (N5242-60015) A24 IF multiplexer board P603 to A16 SPAM board J5 — W62 (N5242-60021) A27 mixer brick (R1) to A24 IF multiplexer (P411) —...
- Page 32 Description of the Upgrade Installation Procedure for the Upgrade — W40 (reuse)(N5245-20042)Port 2 RCVR B IN to A27 mixer brick (B) * As shown in Figure 17, install clamp (part number 1400-1334) to secure W40 (N5245-20042). Figure 17 Location of Cable Clamp for W40 (N5245-20042) —...
- Page 33 Description of the Upgrade Installation Procedure for the Upgrade — W18 (reuse) (N5245-20111)A32 port 2 receiver coupler to W17 — W38 (N5245-20037)Port 3 RCVR C IN to A28 mixer brick (C) — W44 (N5245-20020)REF 3 RCVR R3 IN to A28 mixer brick (R3) —...
- Page 34 Description of the Upgrade Installation Procedure for the Upgrade Figure 19 Location of Cable Clamps for W21 (N5245-20110) — W14 (N5245-20043)A30 port 3 receiver coupler to W13 — W16 (N5245-20044)A31 port 4 receiver coupler to W15 — W52 (N5245-20013)A25 HMA26.5 to A26 splitter —...
- Page 35 Description of the Upgrade Installation Procedure for the Upgrade Figure 20 Bulkhead Connections, Front Panel Step 23.Reinstall the A23 Test Set Motherboard For instructions on reinstalling the board, click the Chapter 7 bookmark “Removing and Replacing the A23 test set motherboard” in the PDF Service Guide1.
- Page 36 Description of the Upgrade Installation Procedure for the Upgrade — Ribbon cable (N5247-60015) from A28 mixer brick (2) J52 to A23 test set motherboard J552 Step 25. Replace the Front Panel’s Lower Dress Panel Before the front panel’s lower dress panel can be replaced, the 2-port lower dress panel and the lower front panel label must be removed from the front panel assembly.
- Page 37 Description of the Upgrade Installation Procedure for the Upgrade Figure 21 Replacing the Front Panel’s Lower Dress Panel and label Step 26.Reinstall Front Panel Assembly For instructions on reinstalling the front panel assembly, click the Chapter 7 bookmark “Removing and Replacing the Front Panel Assembly” in the PDF Service Guide —...
- Page 38 Description of the Upgrade Installation Procedure for the Upgrade Step 27. Install the Overlay To see an image of the front panel overlay (N5227-80020) click the Chapter 6 bookmark “Front Panel Assembly, Front Side, All Options” in the PDF Service Guide .
- Page 39 Description of the Upgrade Installation Procedure for the Upgrade 1. To start the Keysight License Manager, press Start > Keysight License Manager > Keysight License Manager . A Keysight License Manager dialog box will appear. 2. Right click the on the desired option and click Delete. 3.
- Page 40 1. On the analyzer’s Help menu, press About Network Analyzer. 2. Verify that “401” is listed after “Options:” in the display. Click OK. “Getting If the options have not been enabled, contact Keysight Technologies. Refer to Assistance from Keysight” on page 4 Installation Note N5225-90117...
- Page 41 Description of the Upgrade Installation Procedure for the Upgrade Step 35. Perform Post-Upgrade Adjustments and Calibration Adjustments The following adjustments must be made due to the hardware changes of the analyzer. — EE default adjustment: Synth LO only — synthesizer bandwidth adjustment (only run if the EE default adjustment is insufficient) —...
- Page 42 Description of the Upgrade Installation Procedure for the Upgrade Step 36. Prepare the PNA for the User 1. If necessary, reinstall front jumper cables. 2. Install the cable guards, pushing them over the front jumper cables until the cushioning material touches the front panel of the PNA. 3.
- Page 43 Installation Note Xxxxx-xxxxx...
- Page 44 This information is subject to change without notice. © Keysight Technologies 2009-2018 Edition 2, November 2018 N5225-90117 www.keysight.com...
