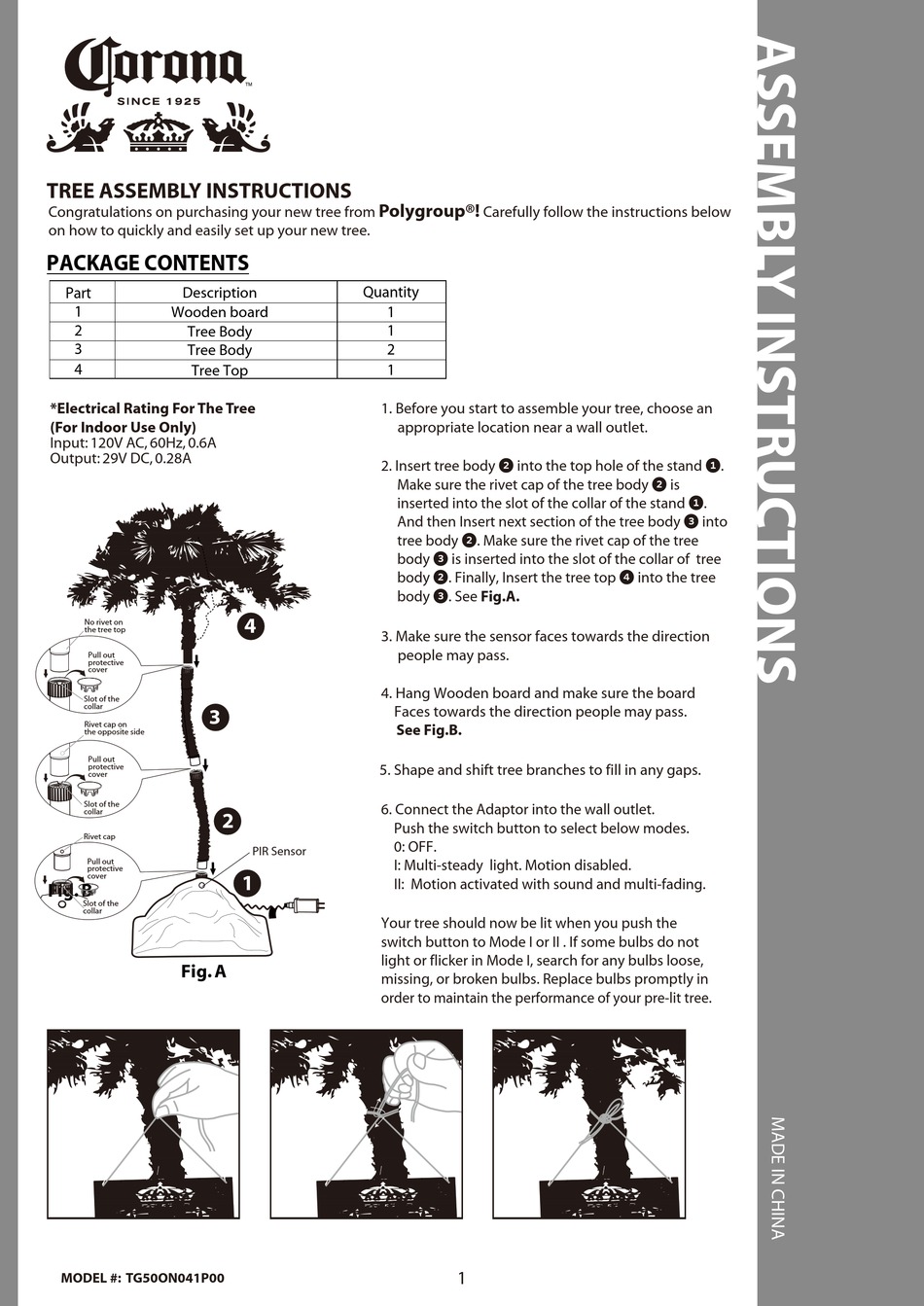

TREE ASSEMBLY INSTRUCTIONS
Congratulations on purchasing your new tree from
on how to quickly and easily set up your new tree.
PACKAGE CONTENTS
Part
Description
1
Wooden board
2
Tree Body
3
Tree Body
4
Tree Top
*Electrical Rating For The Tree
(For Indoor Use Only)
Input: 120V AC, 60Hz, 0.6A
Output: 29V DC, 0.28A
No rivet on
the tree top
Pull out
protective
cover
Slot of the
collar
3
Rivet cap on
the opposite side
Pull out
protective
cover
Slot of the
collar
Rivet cap
Pull out
protective
cover
Fig. B
Slot of the
collar
Fig. A
MODEL #: TG50ON041P00
Polygroup®!
Quantity
1
1
2
1
1. Before you start to assemble your tree, choose an
2. Insert tree body 2 into the top hole of the stand 1.
4
3. Make sure the sensor faces towards the direction
4. Hang Wooden board and make sure the board
Faces towards the direction people may pass.
See Fig.B.
5. Shape and shift tree branches to fill in any gaps.
6. Connect the Adaptor into the wall outlet.
2
Push the switch button to select below modes.
0: OFF.
PIR Sensor
I: Multi-steady light. Motion disabled.
1
II: Motion activated with sound and multi-fading.
Your tree should now be lit when you push the
switch button to Mode I or II . If some bulbs do not
light or flicker in Mode I, search for any bulbs loose,
missing, or broken bulbs. Replace bulbs promptly in
order to maintain the performance of your pre-lit tree.
Carefully follow the instructions below
appropriate location near a wall outlet.
Make sure the rivet cap of the tree body 2 is
inserted into the slot of the collar of the stand 1.
And then Insert next section of the tree body 3 into
tree body 2. Make sure the rivet cap of the tree
body 3 is inserted into the slot of the collar of tree
body 2. Finally, Insert the tree top 4 into the tree
body 3. See Fig.A.
people may pass.
