Summary of Contents for Jocel JLL022967

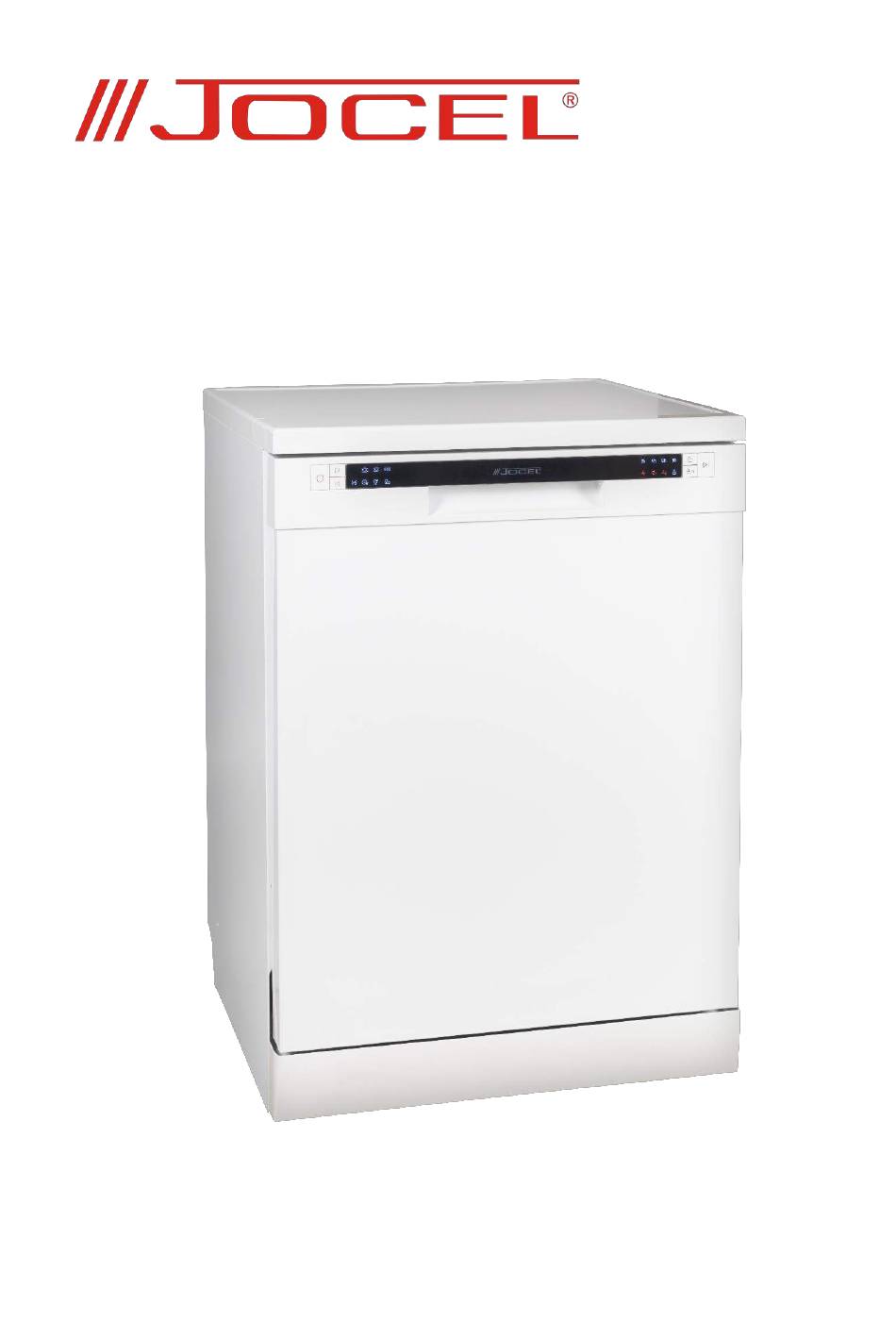

- Page 1 MÁQUINA DE LAVAR LOUÇA LAVAVAJILLAS DISHWASHER JLL022967 MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL...
- Page 4 Quando tiver cerca de 6 peças de louça ou menos para lavar, pode escolher esta função para poupar energia e água. (Esta função apenas pode ser usada Meia-carga com os programas Intensivo, Normal, ECO, 90 min.) Prima o botão para definir o tempo de retardar, o indicador correspondente Retardar acender-se-á.
- Page 16 A torneira não está aberta, ou a entrada de água é A luz de Rápido Tempo de entrada mais longo. limitada, ou a pressão de água é muito baixa. pisca rapidamente A luz de Copo e Não alcança a temperatura Avaria do elemento de aquecimento.
- Page 19 7. Esta garantia cessa no momento em que se constate terem sido efectuadas reparações, alterações ou quaisquer intervenções por pessoa não autorizada pela JOCEL. A GARANTIA CADUCA 1. Com a modificação ou desaparecimento da chapa de identificação do aparelho.
- Page 20 Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARAÇÃO DE CONFORMIDADE Declaramos sobre nossa própria responsabilidade que o aparelho indicado abaixo Aparelho MAQ UINA DE LAV AR LOIÇA...
- Page 38 6. La garantía no cubre lesiones personales o daños causados directa o indirectamente. 7. Esta garantía termina cuando se descubre que han sido sometidas a reparaciones, reformas o intervenciones por cualquier persona no autorizada por JOCEL. LA GARANTIA TERMINA: 1. Con la modificación o desaparecimiento de la placa de identificación del aparato.
- Page 39 Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARACIÓN DE CONFORMIDAD Declaramos bajo nuestra responsabilidad que el aparato abajo Aparato LAV AV AJILLAS...
-
Page 40: Table Of Contents
CONTENTS USING YOUR DISHWASHER Control Panel Water Softener Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION... - Page 41 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser Selecting a program and running...
-
Page 42: Using Your Dishwasher
USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Select the appropriate washing program, the selected program Program indicator will be lit. When you have about or less than 6 place setting dishware to wash, you can choose this function to save energy and water. - Page 43 Display Intensive For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. Normal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. Program indicator This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.
-
Page 44: Water Softener
Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. -
Page 45: Preparing And Loading Dishes
Please check the section 3 “Loading The Salt Into The Softener” Please check the section 3 “Loading The Salt Into The Softener” of PART Ⅰ: Generic Version, If your dishwasher lacks salt. Ⅰ: of PART Generic Version, If your dishwasher lacks salt. NOTE: If your model does not have any water softener, you may skip this section. - Page 46 Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way:...
- Page 47 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
-
Page 48: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 49: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Remove the rinse aid reservoir cap Carefully pour in the rinse-aid into by rotating it counterclockwise. its dispenser, whilst avoiding it to overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 50: Filling The Detergent Dispenser
Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle . -
Page 51: Programming The Dishwasher
PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Detergent Energy Water... -
Page 52: Starting A Cycle Wash
NOTE: EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2. -
Page 53: Forget To Add A Dish
Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: Press the Start/Pause button to pause the washing. Wait 5 seconds then open the door. Add the forgotten dishes. -
Page 54: Error Codes
ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes Faucets is not opened, or water intake is The Rapid light Longer inlet time. restricted, or water pressure is too low. flicker fleetly Rapid Not reaching required... -
Page 55: Technical Information
TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 56 Product fiche Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer JOCEL Type / Description JLL022967 Standard place settings Energy efficiency class Annual energy consumption 258 kWh Energy consumption of the standard cleaning cycle 0.9 kWh Power consumption of off-mode 0.45 W...
- Page 57 7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel. THE WARRANTY EXPIRES 1. With the modification or disappearance of the nameplate of the appliance.
- Page 58 Rua Alto do Curro, n.º 280 4770-569 S. COSME DO VALE V.N. de FAMALICÃO Telef: 252 910 350/2 Fax: 252 910 368/9 email: jocel@jocel.pt http://www.jocel.pt DECLARATION OF CONFORMITY We declare on our own responsibility that the machine indicated below Product...
