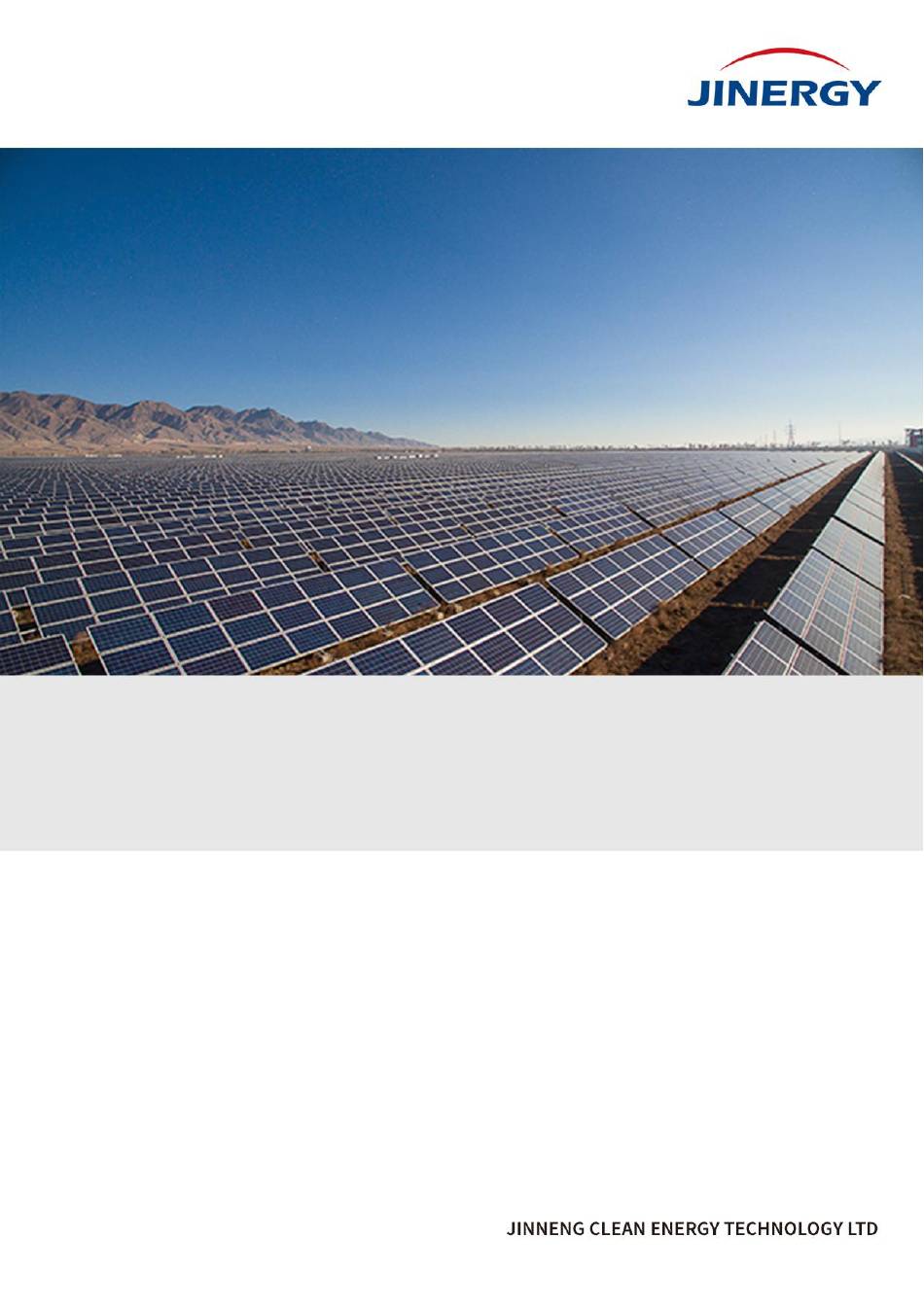

- Page 1 Crystalline silicon PV module installation guide-HJT A_ V4200530...
-
Page 2: Limitation Of Liability
Because the conditions and methods of installation, operation, use and maintenance of photovoltaic (PV) products referring to the use of manual are beyond JINERGY control, JINERGY does not undertake any related responsibility, and expressly disclaims liability for loss, damage, or expense increasing arising out of or in any way connected with such installation, operation, use or maintenance. -
Page 3: Installation Safety
2.1.5 Do not shade portions of the PV module surface from the sun for a long period of time. The shaded cell may become hot (hot spot phenomenon), which can result in solder joints peeling off. 2.1.6 Do not clean the glass surface with chemicals. 2.1.7 Do not drop the PV module or objects onto the PV module. -
Page 4: Mechanical Installation
2.2.18 Module may not be contacted during working. 2.2.19 Maximum system voltage must not exceed 1500V DC . 2.2.20 It is recommended to use jinergy type PV-JN02，5.7~7.1 mm cable for connector which supplied by module factory, these connectors are not recommended to replace the module connector 3. -
Page 5: Mounting Methods
3.2.1 Modules should not be shaded at any time of the day by objects, such as buildings, trees, chimneys, etc. 3.2.2 Do not install in corrosive environment, such as the beach or the landfill area where easily eroded by floods. 3.2.3 Do not install modules in a location where they may be immersed in water or continually exposed to water from a sprinkler or fountain, etc. - Page 6 Fig. a 6-clamp installation Each clamp comes with an M8 bolt, a spring washer, a flat washer and an M8 nut. Use six clamps on each module, three clamps should be attached on each long side of the module. To fasten the module: 1.
- Page 7 Fig. d Fig. e 3. Insert modules into clamps and tighten the M8 screws, which have a torque of 15-18 N*m as show in Fig .f. Fig. f 4. As shown in the above installation method, slide bolts through groove on the supporting bars next to the locations where the clamps are to be fastened.
-
Page 8: Electrical Installation
installation installation installation installation ———— ———— Mounting position D/mm 225± 25 225± 25 ———— ———— The first cycle (Pa) +3600/-1600 +3600/-1600 ———— ———— The second cycle (Pa) +3600/-1600 +3600/-1600 ———— ———— The third cycle(Pa) +3600/-1600 +3600/-1600 (Note: 1) safety factor 1.5; 2) Clamp length d=250mm) Table 3 JNHM60 Mechanical load test 5. -
Page 9: Maintenance And Disposal
Article 690 shall be followed to address these increased outputs. In installations not under the requirements of the NEC, the values of ISC and VOC marked on this module should be multiplied by a factor of 1.25 when determining component voltage ratings, conductor capacities, over current device ratings, and size of controls connected to the PV output.
