Summary of Contents for WONDOM ICP3

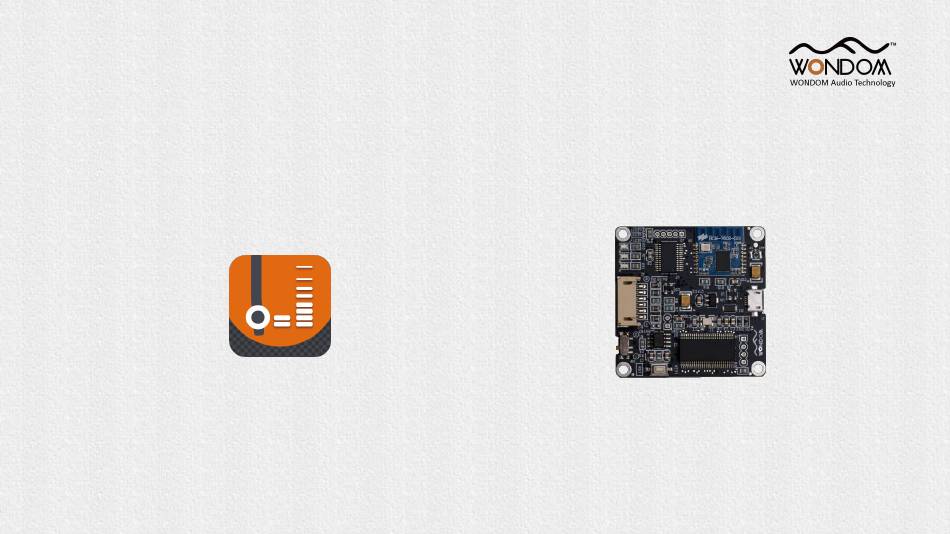

- Page 1 How to realize APP control of APM2/JAB3 with WONDOM ICP3? Miumax ICP3 In-Circuit Programmer with Bluetooth BLE for APP Control...
- Page 2 How to Realize APP Control with WONDOM ICP Amplifier? ICP5 JAB3 - 250 PC UI Control ICP5 Miumax (PC UI) How to Realize PC UI Control with WONDOM ICP Video Note: The products and documentation in red are processing and will be released soon.
- Page 3 Restoring Program JAB3_APPCtrl_STEREO_E2Prom_V2.0.Hex V2.0 (For Miumax V2.0) Download ICP3-DB-DP11224_CtrlFirmware_V1.0.hex V1.0 (For Miumax) Download ICP3 Demonstration of Signal Flow Chart ICP3-DB-DP11224_CtrlFirmware_V2.0.hex V2.0 (For Miumax V2.0) Download ICP5 Version Update Declaration V1.0 Supporting APP - Miumax V1.0 V2.0 Supporting APP - Miumax V2.0 NOTES: 1.

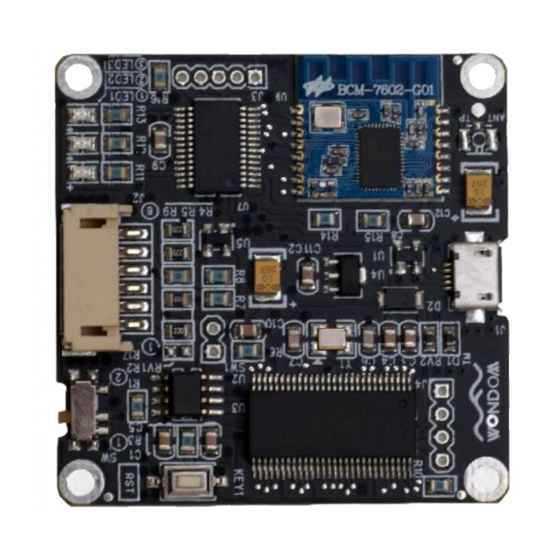

- Page 4 Function: Programming + APP Control WONDOM ICP3 is an in-circuit programmer inheriting all functions of ICP1. We had implemented firmware upgrade and control data transmission from Bluetooth BLE, this means, with ICP3, customers can adjust the basic parameters like volume, gain, EQ through APP.
- Page 5 Checklist Before starting, please make sure you have the following items on hand. ‘Miumax’ APP WONDOM APM2+Extension Kit (APM3)/JAB3 Please go to App Store and search “Miumax”. Android WONDOM ICP3 with a 6-pin cable Accessories Speakers Cables Phone …...
-
Page 6: Product List
Basic Cables Included ICP1 DB-DP11219 In-circuit Programmer for ADAU1701 Digital Signal 6Pin cable x 1 ICP3 DB-DP11224 WONDOM In-circuit Programmer with BLE Bluetooth for APP control 6Pin cable x 1 APM2 AA-AP23122 ADAU1701 Audio Digital Signal Processor Kernel Board APM3 AA-AA11428... - Page 7 CONTENTS CONNECT ICP3 AND POWER UP APPLICATION NOTES TROUBLE SHOOTING BUILD AN AUDIO SYSTEM WITH APP CONTROL APM2/JAB3...
-
Page 8: Audio System
Amplifier Speakers JAB3 Speakers Audio Source Audio Source APM3 19VDC Power Supply 5VDC Power Power Supply Supply Build an audio system with WONDOM APM2 Build an audio system with WONDOM JAB3 Power up the audio system after connection is done. - Page 9 CONNECT ICP3 1. Connect ICP3 to the APM2/JAB3 through the programming port with a 6-pin cable. Pin to Pin Programming Port of DSP/JAB3 Note: When ICP3 is connected to APM2/JAB3 pin to pin, it will be powered by APM2/JAB3 directly. No extra power...
- Page 10 CONNECT ICP3 2. Set switch of ICP3 at ‘REMOTE’ before running ‘Miumax’ APP. 3. Make sure the Bluetooth of your device is on and click ‘Miumax’ APP and they will pair automatically within several seconds. When the connection succeeds, you can see the prompt box.
-
Page 11: App Control
APP CONTROL Choose the corresponding items for adjustment ✓ VOLUME ✓ CHANNEL GAIN Play music and choose your deivce to start ✓ CHANNEL FILTER ✓ PHASE DEGREE ✓ EQ SET... -
Page 12: Application Notes
APP control, which means the last setting of control (potentiometers on board) from APP control your APP control will be saved in ICP3 and it will be mode, please do as follows. employed automatically next time you use ICP3 for Disconnect ICP3 with APM2/JAB3 APP control. -
Page 13: Points Of Attention
POINTS OF ATTENTION Connection Please make sure the Bluetooth of your device is on and the SW of ICP3 is set at REMOTE before clicking APP. Adjustment The adjustment through APP control is irreversible. Please pay attention to the limitation of your devices in case of permanent damage. -
Page 14: Troubleshooting
1. Press the RST switch on ICP3 2. Restart the APP When the ICP3 and the APP disconnect in use, a The ICP3 and APP disconnect in use. prompt box for reminding of reconnection appears.
