- Page 1 WONDOM ICP1 User Guide IN-CIRCUIT PROGRAMMER FOR ADAU1701 DIGITAL SIGNAL - ICP1 By Sure Electronics Co., Ltd.

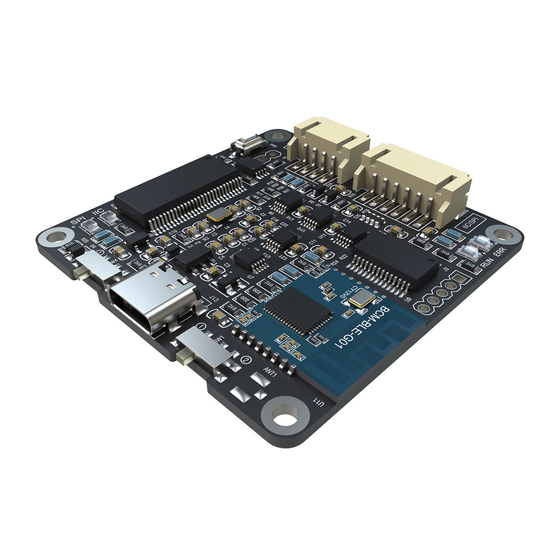

- Page 2 Overview WONDOM ICP1 is an in-circuit programmer for customer programming of WONDOM products. On-board self-boot EEPROM is included in ICP1 for operating the board independently of the Analog Devices, Inc., SigmaStudio™ software. The package includes: ✓ IN-CIRCUIT PROGRAMMER FOR ADAU1701 DIGITAL SIGNAL - ICP1 x 1 ✓...
-
Page 3: Product List
Product List Model Description APM2 2-in, 4-out ADAU1701 DSP Kernel Board JAB3 Mono / Stereo Class D Audio Amplifier Board Integrated with ADAU1701 DSP JAB3+ Mono / Stereo Audio Amplifier Board Integrated with ADAU1701 DSP & BT V5.0 4CH 30W Audio Amplifier Board Integrated with ADAU1701 DSP & BT V5.0, Supporting Configuration JAB4 as 4.0 / 2.1 / 2.0 / 0.2 Output Mode 4CH 100W Audio Amplifier Board Integrated with ADAU1701 DSP &... -
Page 4: Interface Definition
In this document, we will mainly give instructions on the following applications: How to achieve programming of APM2 / JAB3 with WONDOM ICP1 How to realize APP control of APM2 / JAB3 with WONDOM ICP1 KEY1 When programming, please make sure Reset SW at ①... - Page 5 How to achieve programming of APM2/JAB3 with WONDOM ICP1? ICP1 IN-CIRCUIT PROGRAMMER FOR ADAU1701 DIGITAL SIGNAL - ICP1...
- Page 6 Checklist Before starting, please make sure you have the following items on hand. Analog Devices, Inc. SigmaStudio™ WONDOM Products with ADAU1701 DSP WONDOM ICP1 with a 6-pin cable Accessories Speakers Cables Phone …...
-
Page 7: Quick Start
Quick Start To quickly get started with the programming of WONDOM ADAU1701 DSP products via ICP1, do the following steps: 1) Install the SigmaStuido software 2) Connect ICP1 to computer 3) Connect audio cables 4) Power up the audio system... -
Page 8: How To Program
How to program Be sure to follow these connection steps. POWERING UP THE BOARD SETTING UP THE ICP1 CONNECTING ICP1 WITH TARGET PRODUCTS INSTALLING SIGMASTUDIO SOFTWARE PROGRAMMING CONNECTING THE AUDIO CABLES... - Page 9 Installing Sigmastudio software Download the installation package for SigmaStudio software in the Analog.com. Download address is as follows. Click the EXE file and finish installation according to the prompts. https://www.analog.com/en/design-center/evaluation-hardware-and- software/software/ss_sigst_02.html#software-overview...
- Page 10 Setting up ICP1 1. Set the SW of ICP1 at (PROGRAM)* and connect the ICP1 to the computer with a USB cable. Do not connect ICP1 with target products now. 2. Run SigmaStudio software, create a new project. Select “USBi” from the list on the left and drag it to the blank area on the right.
-
Page 11: Connecting Audio Cables
Connecting Audio Cables Build an audio system with your target products. As for the connections, please kindly refer to the datasheet or connection guide of each product. Model Document APM2 AA-AP23122 ADAU1701 Kernel Board JAB3 Audio Amplifier Boards Integrated with ADAU1701 DSP JAB3+ Audio Amplifier Boards Integrated with ADAU1701 DSP &... - Page 12 Power up APM2 with DC5V. APM3 will be powered up by APM2. Make sure the SW1 of APM2 is set at ① (RUN). (Skip this step when programming other products with ADAU1701 DSP) Connect ICP1 with APM3 through 6-pin cable. Audio Input Audio Input...
- Page 13 Programming Now, you can write program in the schematic design zone. It’s suggested to modify program based on the demo program we provide to you. Click HERE to get the basic guide of SigmaStudio programming. Schematic Schematic Design Toolbox Drag desired algorithm here and Algorithms complete the logic connection &...
- Page 14 Programming – Demo Program Here are the demo programs for the products. You can download them for reference. It’s highly suggested to make modification based on the demo program. Products Demo Program Document you may need APM2 APM2_SigmaStudio.dspproj Download JAB3 - Mono JAB3_SigmaStudio_MONO.dspproj Download JAB3 - Stereo...
- Page 15 Online Debug If you want to see the actual effect when programming, you can online debug your program. Please pay attention to the state on the bottom right of SigmaStudio. If it shows “Design Mode”, you need to click the following two icons to turn it to “Active: Downloaded”...
- Page 16 Program Write If you want the program to run offline, you need to write the program into ADAU1701 DSP. Make sure the state on the bottom right is “Active: Downloaded”, then go to Hardware Configuration page, do as follows. Select “Write Latest Compilation to E2PBOM” to download the program (see figure 4), then you will see a window, choose the “I2C”...
- Page 17 Original Firmware If you want to restore to factory settings, you can download original firmware from the following table. Products Original Firmware Products Original Firmware JAB4 Download APM2 Download JAB5 Download JAB3 - Mono Download JAB3 - Stereo Download JAB3+ - Mono Download JAB3+ - Stereo Download...
- Page 18 Original Firmware Restore 1. Right click the “E2Prom” (see Figure 6) and click ‘Read/Write Window’. You will see the following interface (Figure 7). Figure 6 Figure 7 2. Click ‘Click here to browse for file’ and select firmware file (Figure 8). Then click ‘Display File’ like Figure 9. Figure 8 Figure 9...
- Page 19 Original Firmware Restore 3. Click ‘Write Display to E2prom’ then click ‘OK’ of the prompt box (Figure 10). Figure 10...
-
Page 20: Troubleshooting
Make sure the ICP1 be recognized by PC Cannot writing the program into APM2 successfully ➢ Make sure the SW of ICP1 is at (PROGRAM) and the SW1 on APM2 is set at (RUN) ➢ Make sure the ICP1 be recognized by PC Cannot writing the program into JAB successfully ➢...
