- Page 1 How to realize APP control of APM2/JAB3 with WONDOM ICP3? Miumax ICP3 In-Circuit Programmer with Bluetooth BLE for APP Control...

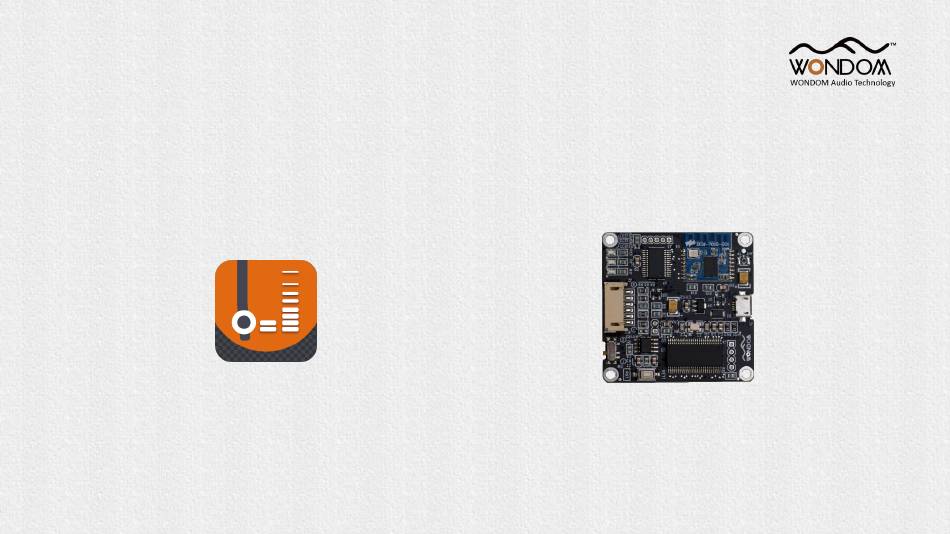

- Page 2 Overview WONDOM ICP3 is an in-circuit programmer inheriting all functions of ICP1. We had implemented firmware upgrade and control data transmission from Bluetooth BLE, this means, with ICP3, customers can adjust the basic parameters like volume, gain, EQ through APP.
- Page 3 Checklist Before starting, please make sure you have the following items on hand. ‘Miumax’ APP WONDOM APM2+Extension Kit (APM3)/JAB3 Android WONDOM ICP3 with a 6-pin cable Accessories Speakers Cables Phone …...
- Page 4 Basic Cables Included ICP1 In-circuit Programmer for ADAU1701 Digital Signal 6Pin cable x 1 ICP3 DB-DP11224 WONDOM In-circuit Programmer with BLE Bluetooth for APP control 6Pin cable x 1 APM2 AA-AP23122 ADAU1701 Audio Digital Signal Processor Kernel Board APM3 AA-AA11428...
- Page 5 CONTENTS CONNECT ICP3 AND POWER UP CONTROL SWITCH TROUBLE SHOOTING BUILD AN AUDIO SYSTEM WITH APP CONTROL APM2/JAB3...
-
Page 6: Audio System
Supply Build an audio system with WONDOM APM2 Build an audio system with WONDOM JAB3 Note: As for the detail information about connection, please take reference to document <How to program APM2 with ICP3> <How to program JAB3 with ICP3>. - Page 7 CONNECT ICP3 1. Connect ICP3 to the APM2/JAB3 through the programming port with a 6-pin cable. Please disconnect the power supply when operating for safety. Pin to Pin Programming Port of DSP/JAB3 Note: When ICP3 is connected to APM2/JAB3 pin to pin, it will be powered by APM2/JAB3 directly.
- Page 8 CONNECT ICP3 2. Set switch of ICP3 at ‘REMOTE’ before running ‘Miumax’ APP. 3. Connect whole system with power supply, in which condition, the LED3 on ICP3 will be blinking. 4. Make sure the Bluetooth of your device is on and click ‘Miumax’...
-
Page 9: App Control
APP CONTROL Choose the corresponding items for adjustment VOLUME Play music and choose your device to start CHANNEL GAIN CHANNEL FILTER PHASE DEGREE EQ SET... -
Page 10: Control Switch
(potentiometers on board) from APP control potentiometers on board for control, when they mode, please do as follows. connect ICP3 for APP control, the last setting will Press the Reset switch on APM2/JAB3 be saved in ICP3 and be employed automatically. -
Page 11: Points Of Attention
POINTS OF ATTENTION Connection Please make sure the Bluetooth of your device is on and the SW of ICP3 is set at REMOTE before clicking APP. Adjustment The adjustment through APP control is irreversible. Please pay attention to the limitation of your devices in case of permanent damage. -
Page 12: Troubleshooting
1. Press the RST switch on ICP3 2. Restart the APP When the ICP3 and the APP disconnect in use, a The ICP3 and APP disconnect in use. prompt box for reminding of reconnection appears.
