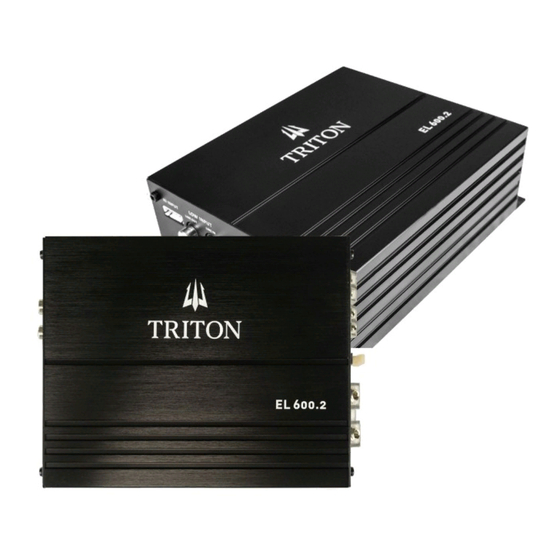

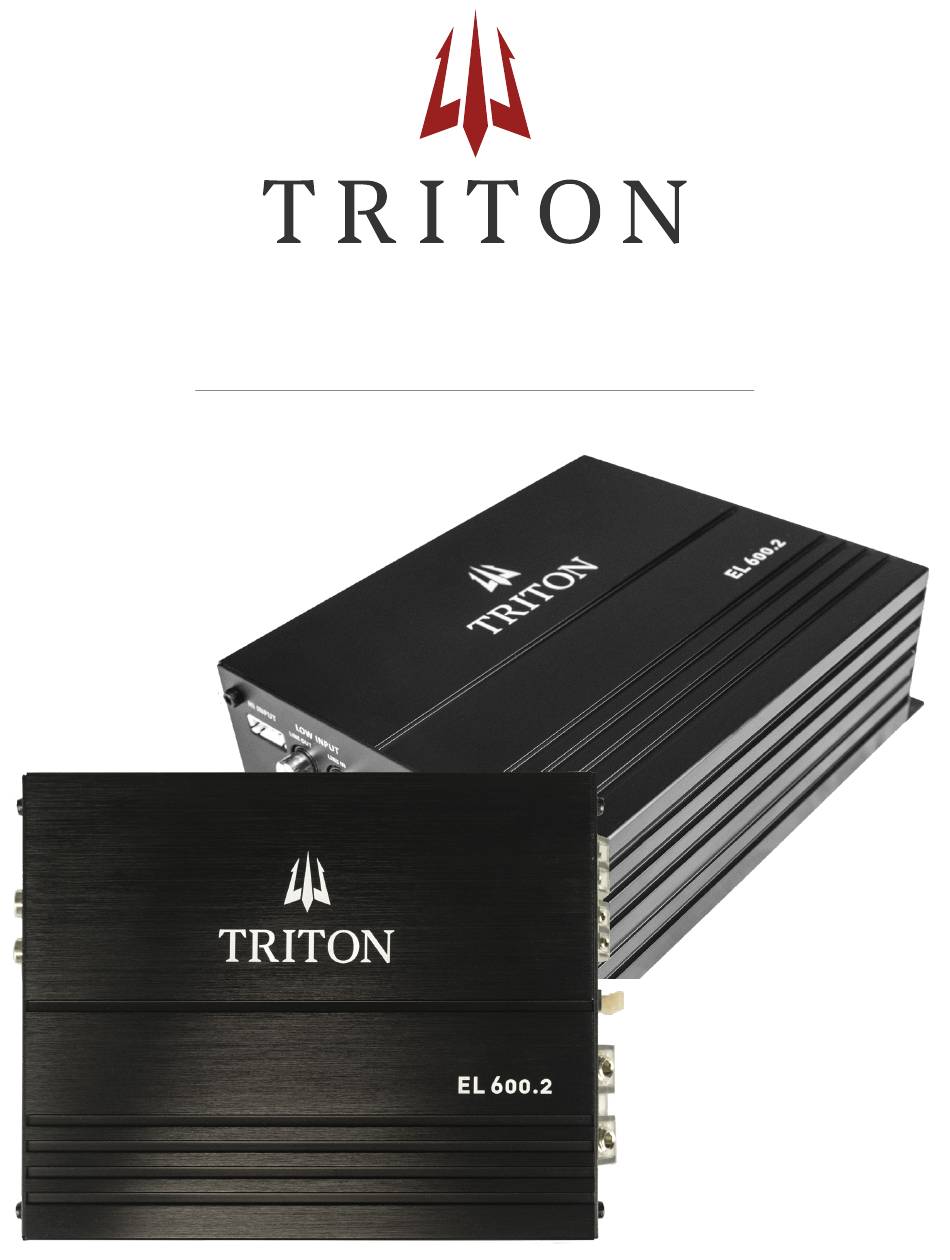

- Page 1 EL SERIES AMPLIFIERS EL6002...
- Page 2 To make sure your new amplifier performs its best, we strongly recommend you have your new Triton amplifier professionally installed. Please use your new Triton amplifier responsibly. Listening to very loud music for extended periods of time can cause permanent hearing loss.
- Page 3 Specifications Model EL6002 Bridged RMS 1Ω @ 14.4V 600W Power RMS 2Ω @ 14.4V 2 x 120W Power RMS 4Ω @ 14.4V 2 x 85W <1% THD+N @ Nominal Power 20Hz ~ 20kHz Frequency Response (-3db) 100dB 0.2 ~ 6V Input Sensitivity 40Hz ~ 250Hz Low Pass Filter...
- Page 4 III. Installation Preparation Please read the entire manual before installation. Due to the technical nature of amplifiers it is highly recommended that your amplifier is installed by a professional installer or an authorized dealer. Before You Start 1. Disconnect negative battery terminal. (Consult a qualified technician for instructions) 2.
- Page 5 III. Installation Connection Descriptions NOTE: Be sure to follow specific instructions included with your amplifier installation kit (not included with this amplifier). The information below should be used as a general guideline only. Power Wire (+12V) 1. Disconnect negative battery terminal before proceeding. Consult a qualified technician for instructions if you are unsure.
- Page 6 III. Installation Audio Inputs and Controls 1 High-Level Inputs (Speaker Wire) 5 High-Pass Filter 2 Line In/Line Out (RCA) 6 Low-Pass Filter 3 Gain 7 Crossover Control 4 Bass Boost 8 Remote Bass Control Power and Speaker Connections 1 Ground Connection 4 +12VDC Battery Connection 2 Remote Turn On 5 Fuse(s)
- Page 7 III. Installation Typical Wire Routing Main Power Connections The illustrations on pages 6 and 7 demonstrate three different wiring options for each unit. Once desired configuration has been selected, connect the +12V. GND and REM wires accordingly. A suitable fuse MUST be installed on the +12V lead within 18”...
- Page 8 III. Installation Amplifier Connections 2 Speakers (stereo) Speakers (bridged) Speaker Connection Connect speaker wires observing polarity. The minimum impedance load for the amplifiers is 2 ohms stereo and 4 ohms bridged. Use of loads lower than these is not recommended and may cause amplifier damage.
- Page 9 III. Installation Configuration/Setup Input level Control The input level control (gain) is used to obtain the best possible match between the head unit audio output and the amplifier input. Begin by turning the input level control fully counterclockwise. Next, turn up the head unit volume control around 3/4 of the way up.
