ekwb EK-FC670 GTX DCII Installation And Mounting Manuals

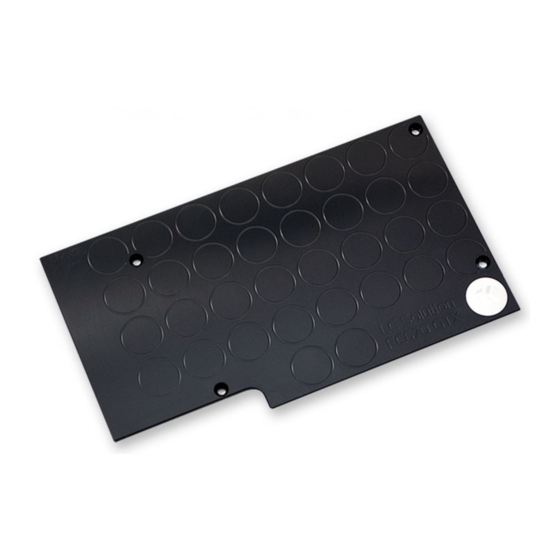

Installation and mounting manual for EK-FC670 GTX DCII Backplate
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

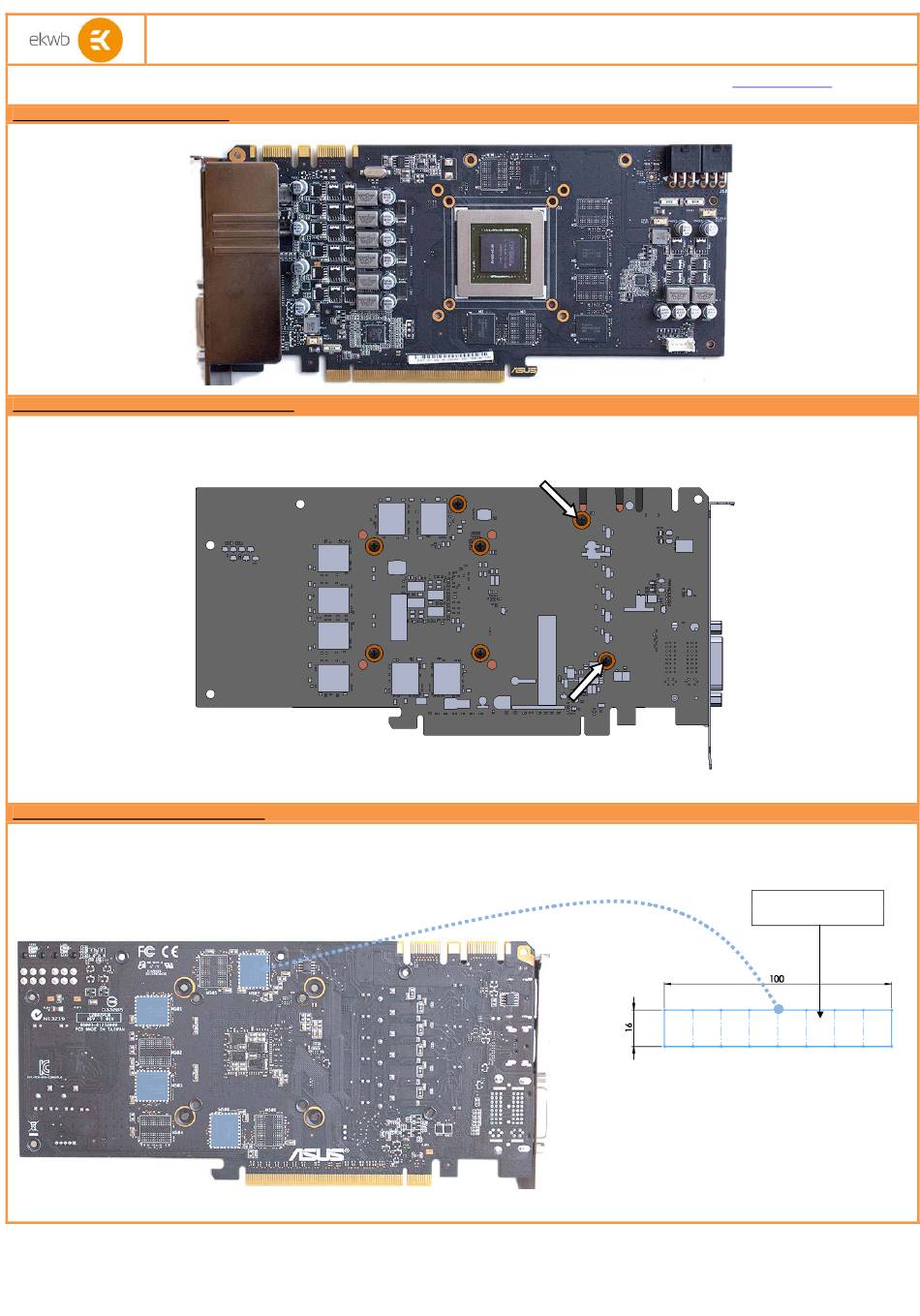

STEP 1: GENERAL INFORMATION. Sample picture of ASUS GeForce GTX 680 DirectCU II graphics card
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC680 GTX DCII Backplate is very easy to install. First install EK-FC680 GTX DCII water block according to its manual. If you have it already
installed the water block please check the picture below to see which mounting screws are to be left in their position and which are to be removed.
Please remove the two (2) screws marked with arrow.
STEP 3: APPLYING THE THERMAL PADS
EK-FC680 GTX DCII Backplate features passive cooling of the printed circuit board and it's components therefore it is mandatory to install the
enclosed thermal pad. Please install enclosed 0.5mm thick thermal pad (Thermal Pad A – 0.5mm (100x16)) on the backside of the graphics card PCB
as shown on the picture below. You may need to trim the excess thermal pad.
1
1
All disclosures, notices and warranty conditions are being written on the back of the box.
1
1
www.ekwaterblocks.com for updates. Before
Thermal pad A –0.5mm
(100x16)
1 1 1 1
nd
Revision 1.0. Released on 2 of August 2012.
