8
7
5
4
2
1
Note: The displays are installed by the numerical order given.
2
1
5
4
8
7
Note: The angle of displays are adjusted by the numerical order given.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
9
6
3
3
6
9
Video Wall Stand & Cart and Accessories
200x200/300x300
PDS-2303C
400x200/400x400
600x400
200x200/300x300
PDS-2303S
400x200/400x400
600x400
INSTALLATION MANUAL
Optional Accessories
PDS-9501
Note: The accessories
are not standard equipped.
The accessories will be
selected according to
user requirement.
CAUTION:
DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
55"
MAX
50kgx3
50kgx3
(110lbsx3)
(110lbsx3)
55"
RATED
RATED
MAX
ISSUED: FEB. 2014
Advertisement
Table of Contents
Related Manuals for PureMounts DS Series
Summary of Contents for PureMounts DS Series

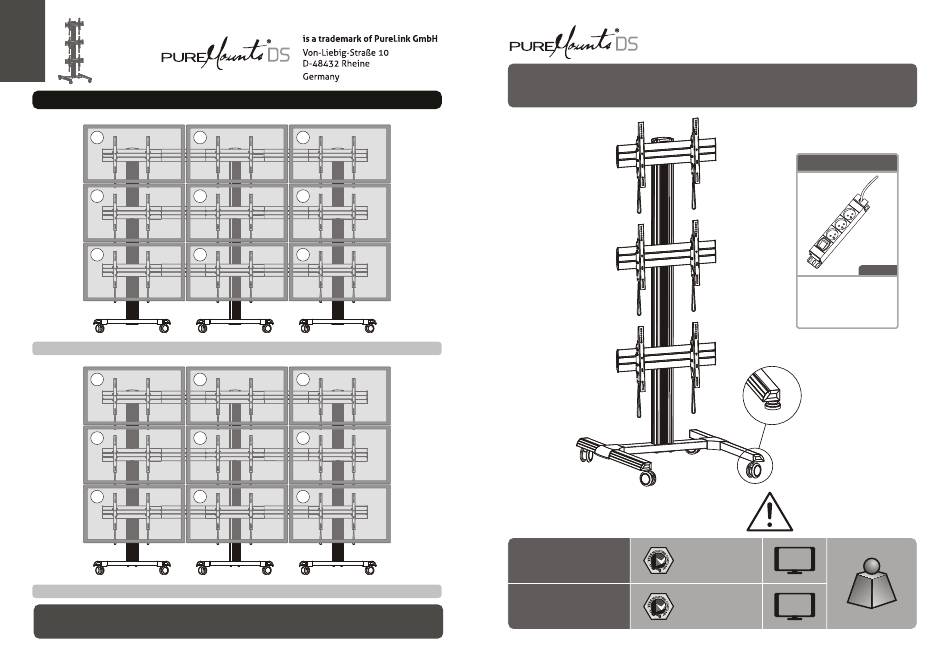

- Page 1 INSTALLATION MANUAL Video Wall Stand & Cart and Accessories Optional Accessories PDS-9501 Note: The accessories are not standard equipped. The accessories will be selected according to user requirement. Note: The displays are installed by the numerical order given. CAUTION: DO NOT EXCEED RATED LISTED WEIGHT.
- Page 2 NOTE: Read the entire instruction manual before you start installation and assembly. WARNING column (x1) connecting piece (x1) top cover (x1) • Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.
- Page 3 1. Assembling the Base 4. Installing the Covers Note: With the brake wheels facing forward. Attach the left and right base to the middle base using the appropriate screws. Tighten all screws with an Allen key. 2. For the model PDS-9501 installation 5.
- Page 4 7. Installing the Adapter Brackets Tighten all screws to secure them with an Allen key. X+5mm (X=Height of display) Top of the display X+5mm (X=Height of display) 7-1 For Flat Back Screens M-A/M-B/M-C 6. Installing the Top Cover Attach the top cover to the column using the appropriate screws.
- Page 5 7-2 For Recessed Back Screens or to Access A/V Inputs M-C M-D/M-E M-D/M-E M-D/M-E Use the padlocks to prevent the displays from being stolen (The padlocks are not included). Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screens. •...
- Page 6 10. Cable Management Insert the cable clamps horizontally into the plate slots, then turn the cable clamps to the vertical to secure them. If the displays tilted down, rotate the adjustment screws as shown in figure. down Run the cables through the cable clamps and the rubber strip.
- Page 7 12. Multi-screen Combination Solution 11. Adjustment Loosen the screws in the plastic covers in order to remove the plastic covers. +3° -3° Remove the screws attaching the front of the universal plates. Loosen the screws in the connecting fittings in order to slide the connecting attachments to both sides of the connecting fittings.
- Page 8 X+5mm Insert the connecting fittings (X=Height of display) to the appropriate position along the universal plates rails. X+5mm (X=Height of display) Note: The displays are installed by the numerical order given. Note: The position which the connecting fittings insert to the universal plate is Note: Make sure that the determined by the size of displays.
