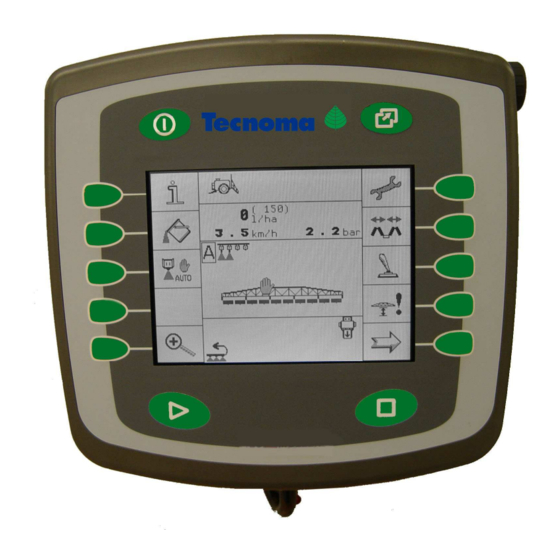

Tecnoma Novatec Isobus Operating Handbook

Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Handbook
990025
MARS 2012
Sign C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novatec Isobus and is the answer not in the manual?

Questions and answers

Summary of Contents for Tecnoma Novatec Isobus

  • Page 1 Operating Handbook 990025 MARS 2012 Sign C...

  • Page 2: Table Of Contents

    6.15.3 Activation of the automatic mode ...................26 6.16 TAG AXLE ..........................26 Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...
  • Page 3 6.18.1 General information ......................28 6.18.2 Calibration procedure of a nozzle:..................29 Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...

  • Page 4: Introduction

    According to your sprayer equipment, some menus, control buttons are not allocated on the terminal or do not possess a function. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 5: Security Indications

    . . . the first time the first time Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...
  • Page 6 Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 7: Power Up

    . . . system system the pneumatic spillproof the pneumatic spillproof Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com...

  • Page 8: Screens

    (Only NOVATOP) Sensory keys corresponding to the screen icon Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com...

  • Page 9: Symbols Of The Work Screen

    See following screen See following screen See following screen See following screen Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...
  • Page 10 Previous Page Previous Previous Page Page Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com Mars 2012 SAS with a capital of 1 174 400 €...

  • Page 11: Settings Screens

    Otherwise, only the minimal speed will b e taken into account. e taken into account. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 12: Machine Data

    The change is then taken into account The change is then taken into account Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 13: Use Of The Box

    Power up screen Power up screen Power up screen Power up screen Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...

  • Page 14: Simultaneous Mode

    Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...
  • Page 15 Press briefly to display the boom folding page Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com Mars 2012 SAS with a capital of 1 174 400 €...

  • Page 16: Operating The Boom With The Joystick

    Tilt correction in function selector mode. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...

  • Page 17: Spraying Data (Work Screen 2)

    Click twice Click twice Click twice Click twice Click twice Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com...

  • Page 18: Choice Of The Boom

    Sections 3, 4 and 5 are open Sections 3, 4 and 5 are open Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 19: Opening/Closing Of Sections With The Handle (Joystick)

    The use of this mode does not allow using the joystick anymore The use of this mode does not allow using the joystick anymore Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 20: Occasional Over And Under Dosing

    Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 21: Directional Mode With The Joystick (Central Switch)

    . . . in the tank Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com...

  • Page 22: Using The Autonet Option (Hydraulic Version)

    Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com...

  • Page 23: Calibration Of The Speed Sensor

    Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 24: 6.12 Speed Test

    Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 25: Number Of Nozzles By Section

    By default, the automatic function is not active. The hand on the boom indicates the manual state of the function Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 26: Activation Of The Automatic Mode

    11/ Press on Press on Press on Press on Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e – mail tecnoma@tecnoma.com www.tecnoma.com...

  • Page 27: Use Of The Tag Axle

    Redo the action if necessary is set. Redo the action if necessary..Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 28: Foam Marker

    Nozzles „A“, „B“, „C“ and „D“ are non standardized nozzles. They can be defined by the user. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...

  • Page 29: Calibration Procedure Of A Nozzle

    The calibration can be achieved by following the following instructions, step by step: Fill the tank with clear water. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...
  • Page 30 The calibration procedure is now completed. The accuracy of the result depends on the care brought during the measurement and the precision of the measuring tools. Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 –...
  • Page 31 International Tel: +33 3 26 51 99 99 - Fax +33 3 26 51 83 51 Site: www.tecnoma.com - Email: tecnoma@tecnoma.com Tecnoma technologie – 54, rue Marcel Paul – BP 195 – 51206 Epernay 990025 Tel +33(0)3 26 51 99 99 – Fax +33(0)3 26 51 83 51 e –...
