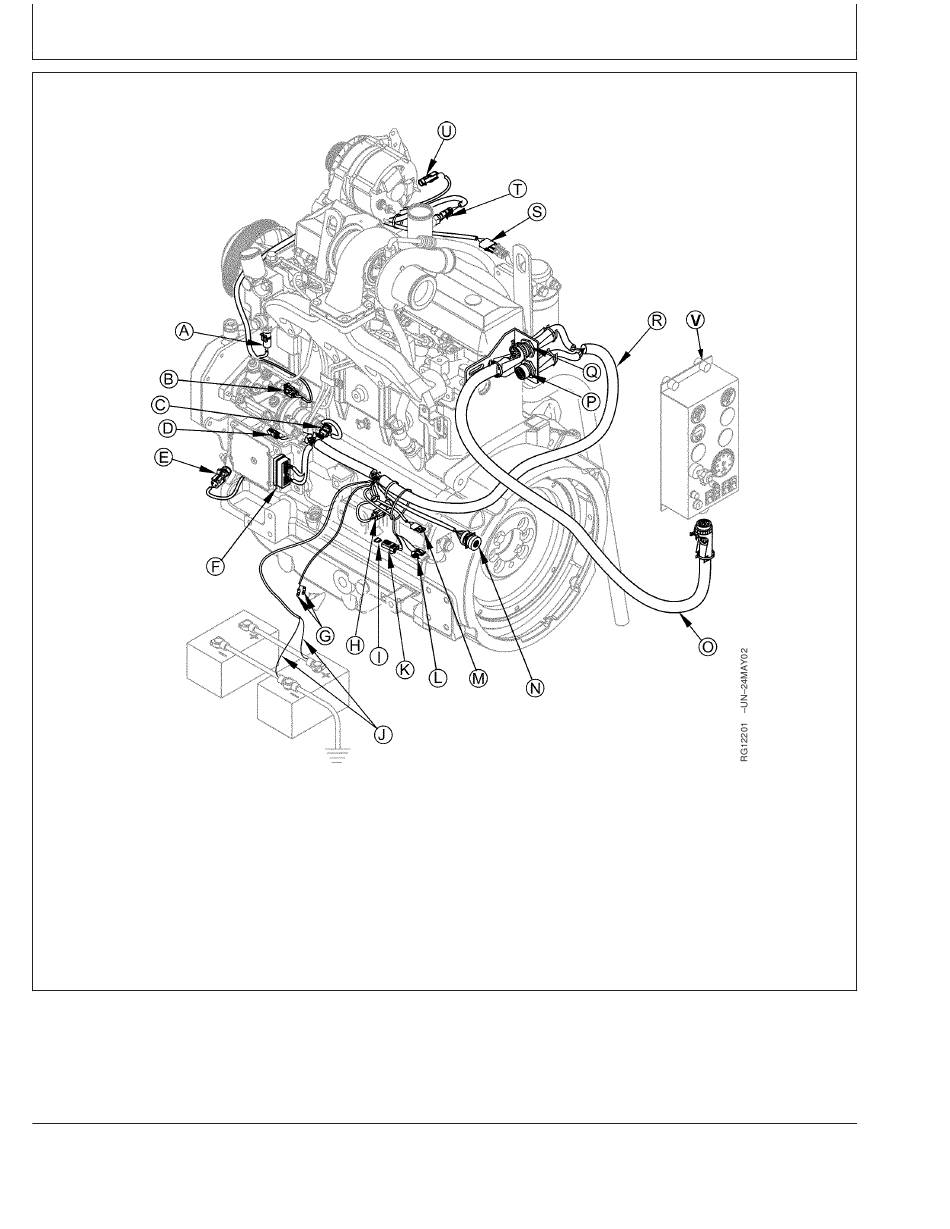

Engine Wiring Layout (Electronic Fuel System With Stanadyne DE10 Injection Pump)

A—Coolant Temperature
Sensor Connector
B—Fuel Temperature Sensor
Connector
C—Injection Pump Solenoid
Connector
D—SAE 1939 CAN Connector
E—Crankshaft Position Sensor
Connector
F—ECU Connector
Troubleshooting
G—Starter Relay Connector
H—Oil Pressure Sensor
Connector
I—Main System Fuse (10 amp)
J—Power and Ground Battery
Connections
K—Fuse Holder
L—Transient Voltage
Protection (TVP) Module
Connector
M—Remote ON/ OFF
Connector
N—CAN Network Diagnostic
Connector
O—Instrument Panel
Connector Harness
P—23-pin Optional Feature
Connector (Extended-
feature ECU only)
45-3
Q—21-pin Instrument Panel
Connector
R—Engine Wiring Harness
S—Fuel Heater Connector
T—Manifold Air Temperature
(MAT) Sensor Connector
U—Alternator Ignition
Connector
V—Optional Instrument Panel
OUOD005,0000180 –19–26APR02–1/1
