TiR2,TiR3,TiR4,
Ti40,Ti45,Ti50,Ti55

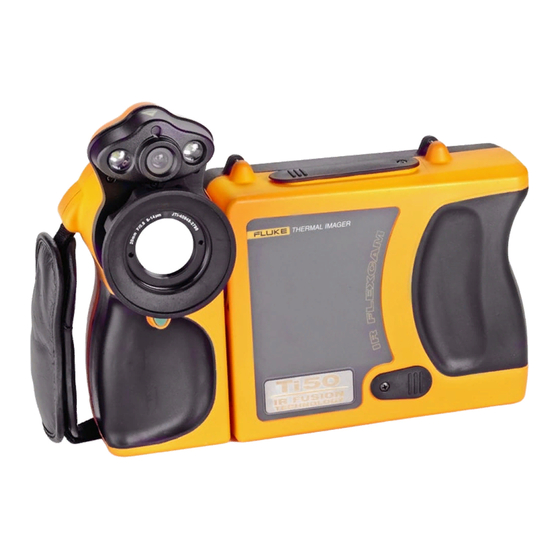

IR FlexCam Thermal Imager
Getting Started Guide
PN 2808417
January 2007, Rev.2, 5/09
© 2007, 2009 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.
Product specifications are subject to change without notice.
Advertisement
Table of Contents
Related Manuals for Fluke IR FlexCam TiR2
Summary of Contents for Fluke IR FlexCam TiR2
- Page 1 IR FlexCam Thermal Imager Getting Started Guide PN 2808417 January 2007, Rev.2, 5/09 © 2007, 2009 Fluke Corporation. All rights reserved. Printed in USA. All product names are trademarks of their respective companies. Product specifications are subject to change without notice.
- Page 2 Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke authorized service center within the warranty period.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction ..................1 How to Contact Fluke ................1 Safety Information ................2 Standard Accessories ................3 Charge and Insert Battery ..............6 Power Camera On................. 6 Insert Memory Card................7 Focus..................... 7 Set Temperature Level and Span ............8 ®... - Page 4 TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide...
- Page 5 List of Tables Table Title Page Symbols ....................3 Standard Accessories ................5...
- Page 6 TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide...
- Page 7 List of Figures Figure Title Page Standard Accessories ................4 Turning the Power On and Off ............. 6 Inserting a Memory Card ..............7 Focusing the Camera ................7 Setting the Level and Span ..............8 ® Setting the IR-Fusion Blend Level............
- Page 8 TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide...
-
Page 9: Introduction
This Guide describes the basic functions of the camera. Refer to the CD for complete user information. How to Contact Fluke To contact Fluke, call one of the following telephone numbers: 1-800-760-4523 in USA 1-800-363-5853 in Canada +31-402-675-200 in Europe... -
Page 10: Safety Information
TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide Safety Information Use your Camera only as specified in this manual. A W Warning identifies hazardous conditions and actions that could cause bodily harm or death. A W Caution identifies conditions and actions that could damage the camera or cause permanent loss of data. -
Page 11: Standard Accessories
Standard Accessories If any of the standard accessories shown in Figure 1 and described in Table 2 are missing or damaged, contact a Fluke customer service representative. The Users Manual is available on the CD-ROM that ships with your camera. - Page 12 TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide eii001.eps Figure 1. Standard Accessories...
- Page 13 IR FlexCam Thermal Imager Standard Accessories Table 2. Standard Accessories Number Description Portable Infrared Camera with Lens Cap Camera Carrying Case LCD Cleaning Cloth AC adapters (2) or equivalent Auxiliary AC Power Supply (TiR2, TiR4, Ti45 and Ti55 only) or equivalent AC Patch Cord or equivalent Neck Strap Video Cable...
-
Page 14: Charge And Insert Battery
TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide Charge and Insert Battery Charge the batteries for 3 hours before use. Use only the rechargeable batteries and charger supplied with your camera. A battery is fully charged when the green LED light on the charger remains solid. To begin using, insert a charged battery into the bottom of the Camera as shown in Figure 2. -
Page 15: Insert Memory Card
IR FlexCam Thermal Imager Insert Memory Card Insert Memory Card 1. Pull cover up and rotate as shown in Figure 4. 2. Insert the Compact Flash memory card into the slot with the card’s connection end pointed at the camera and the label with MB size facing the back of the camera. -
Page 16: Set Temperature Level And Span
TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide Set Temperature Level and Span 1. Press G as shown in Figure 6 to automatically set the camera’s temperature level and span. 2. Press G again as needed to properly scale the image. Note Repeat Focus and Set Temperature Level and Span as needed to obtain desired image quality. -
Page 17: Set Ir-Fusion® Blend Level
IR FlexCam Thermal Imager Set IR-Fusion® Blend Level ® Set IR-Fusion Blend Level Note Fusion blending is disabled with optional 10 and 54-mm lenses. ® Set the IR-Fusion blend level with the following steps: ® 1. Press and hold G until the IR-Fusion blend level control box appears on the display screen. -
Page 18: Capturing An Image
TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide Capturing an Image 1. Tap the trigger button once to pause the live image. 2. Review the image and camera settings. 3. Press and hold the trigger button for 2 seconds to capture (save) the image. The image file name appears in the upper left-hand corner of the display screen indicating the image is saved on the memory card. -
Page 19: Smartview Software For Your Pc
IR FlexCam Thermal Imager SmartView Software for Your PC SmartView Software for Your PC ® Your system includes a CD containing SmartView software that you install on your personal computer. SmartView, together with your Camera, enables you to: • Transfer thermographic images to a computer and efficiently manage them •... - Page 20 TiR2,TiR3,TiR4,Ti40,Ti45,Ti50,Ti55 Getting Started Guide...
