Fluke Ti450 SF Quick Start

AC Power, USB,
Mini USB
Battery
1. MEMORY:
Insert SD memory card into the slot under the rubber cover on the side of the camera.
2. POWER: Insert a fully charged battery into the base of the hand grip. The battery life is indicated in the lower left
corner of the LCD display. You can also press and hold the battery symbol on the side of the battery.
3. START:
Press the Power button until you hear an audible tone signaling camera startup.
• Swing the attached lens cover up and lock in the open position on the top of the camera.
• The LCD display will turn on and you will see the default start up screen (as above) showing a live infrared image.
• To turn the camera off, press the Power button until an audible tone signals it is powering down.
4. FOCUS: Focus is either manual or automatic, and is user selectable (automatic recommended for SF
• To manually focus, adjust the focusing ring either clockwise or counter clockwise to optimize image focus.
• Automatic focus is laser enhanced. To utilize the laser assisted auto focus, depress the laser assisted focus trigger
while aiming the laser pointer at the object of interest. While holding the camera steady, release the trigger. If there
is too much movement of the laser during the auto focusing operation, an Excessive Laser Movement warning may
appear on the screen.
5. PALETTE: From the home screen, depress the F2 button. Then using either the directional arrow buttons or the
touchscreen, select Image, then select Palette. Select Set Palette, and then using either the up/down directional arrow
buttons or the touchscreen scroll through the palette selections. To select a particular palette, either depress the F1
button (done) twice or click the selection on the touch screen and then select Done.
6. IR Fusion: From the home screen, depress the F2 button. Then using either the directional arrow buttons or the
touchscreen, select Image, then select IR-Fusion. For full screen IR only gas Imaging select IR 100%. For Picture
in Picture (IR within visual imaging) and then using either the up/down directional arrow buttons or the touchscreen
scroll through the selections and select PIP 100%. Note it not recommended to select any % other than 100%. Only
select Visual if you need to obtain visual orientation of the camera.
© 2018 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820 / www.thesnellgroup.com

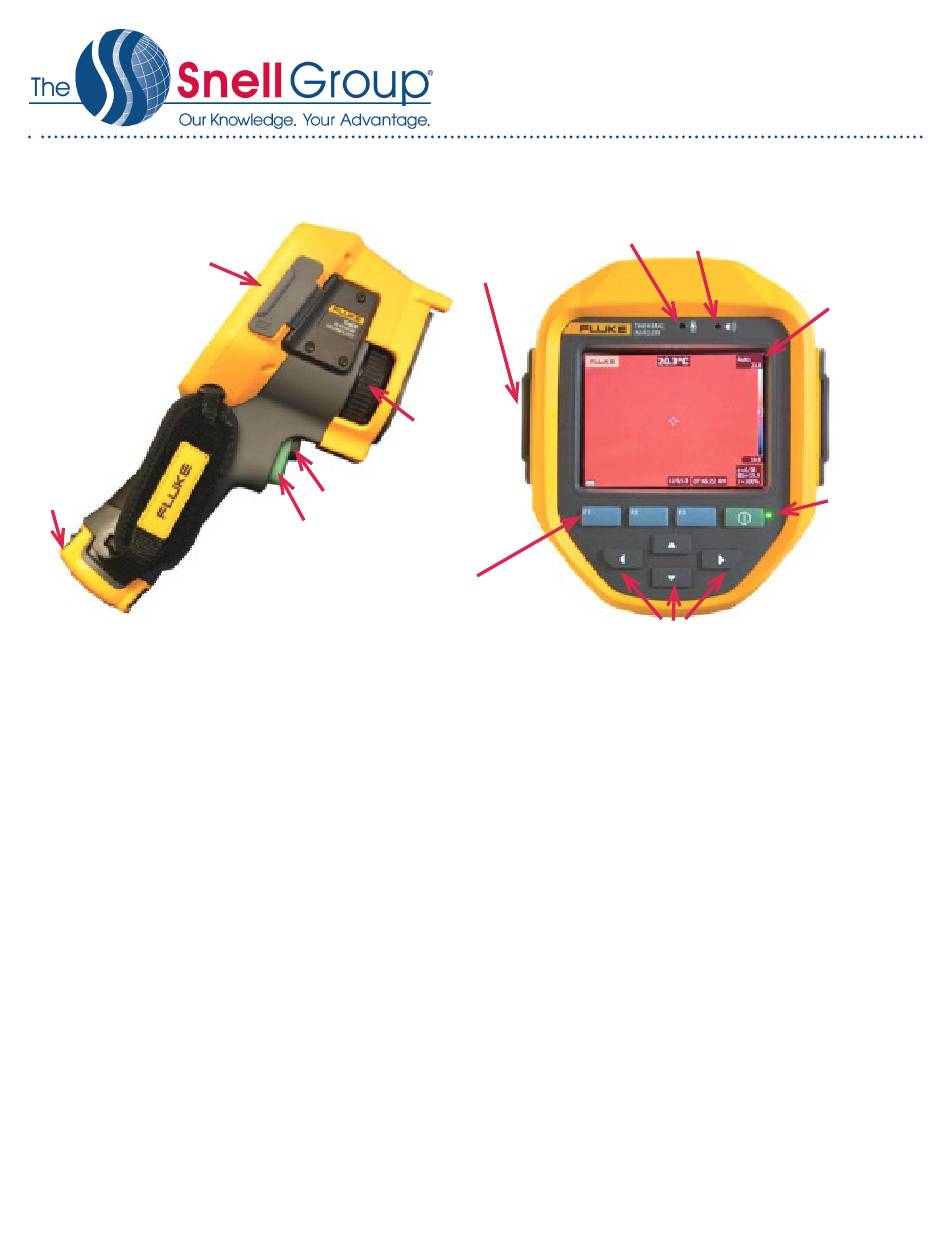

QuickStart
Focus Ring
Laser Assisted
Focus Trigger
Trigger
(Pause Image)
FLUKE Series Ti450 SF
Gas Detection Operation Only
Mic
Memory Card Slot,
HDMI
F1, F2, F3
Buttons
Directional Arrow Keys
Speaker
Auto/Manual
Indicator
Power
gas modes).
