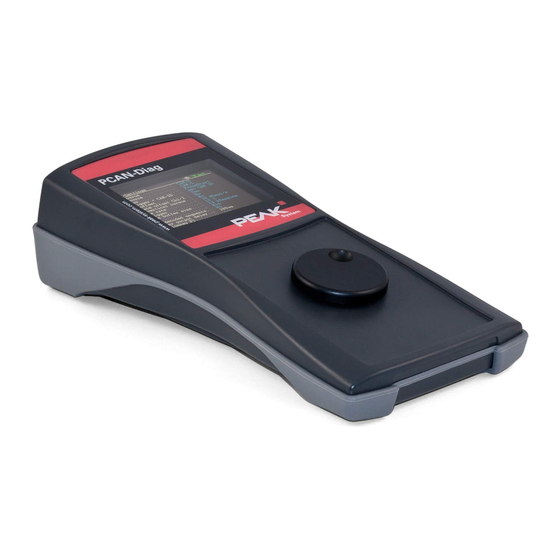

Peak PCAN-Diag 2 User Manual

Handheld device for can bus diagnostics
Hide thumbs Also See for PCAN-Diag 2:
Table of Contents

Advertisement

Quick Links

Download this manual

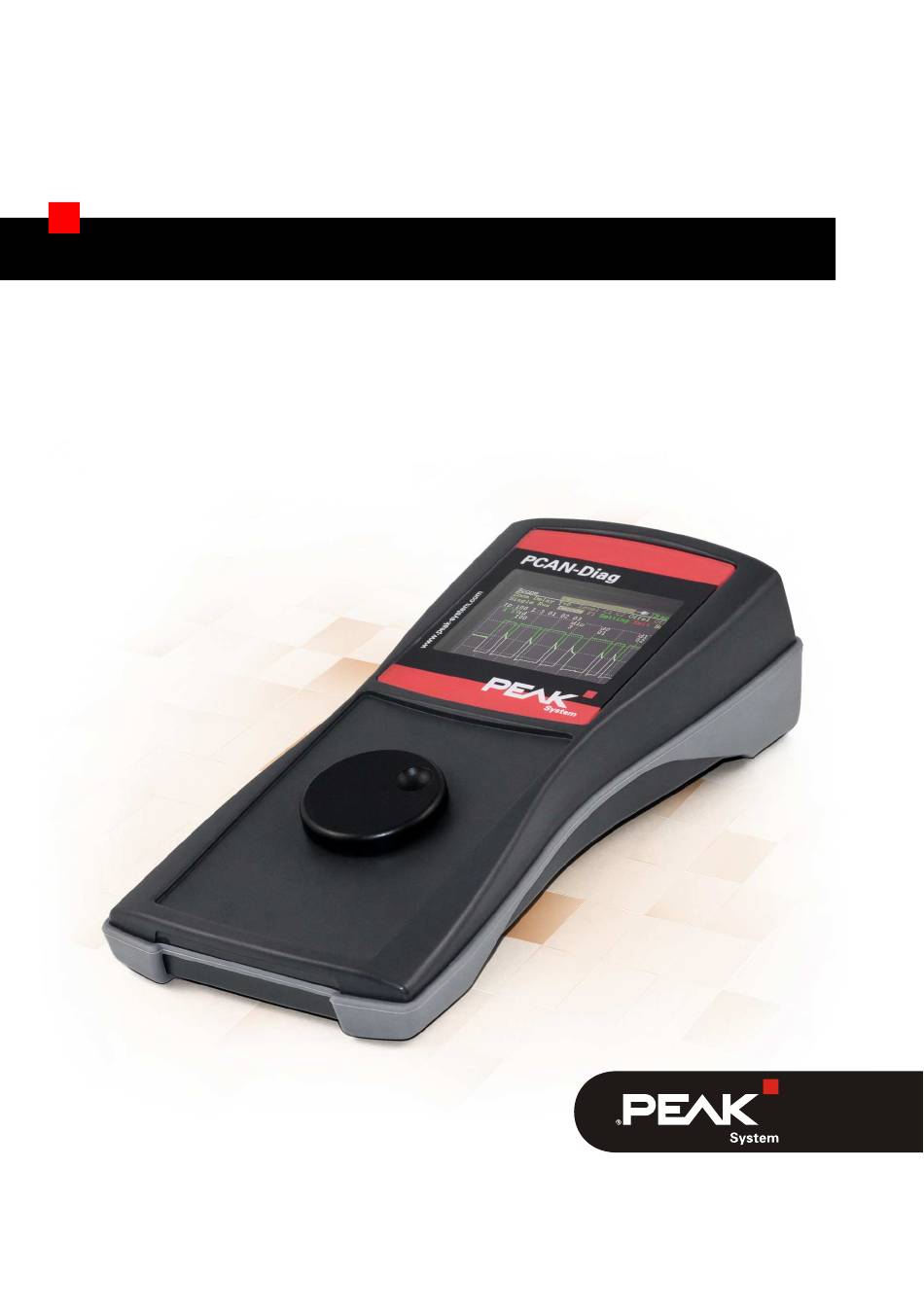

PCAN-Diag 2
Handheld Device for
CAN Bus Diagnostics
User Manual
V2.3.1
