Summary of Contents for Peak PCAN-MiniDiag FD

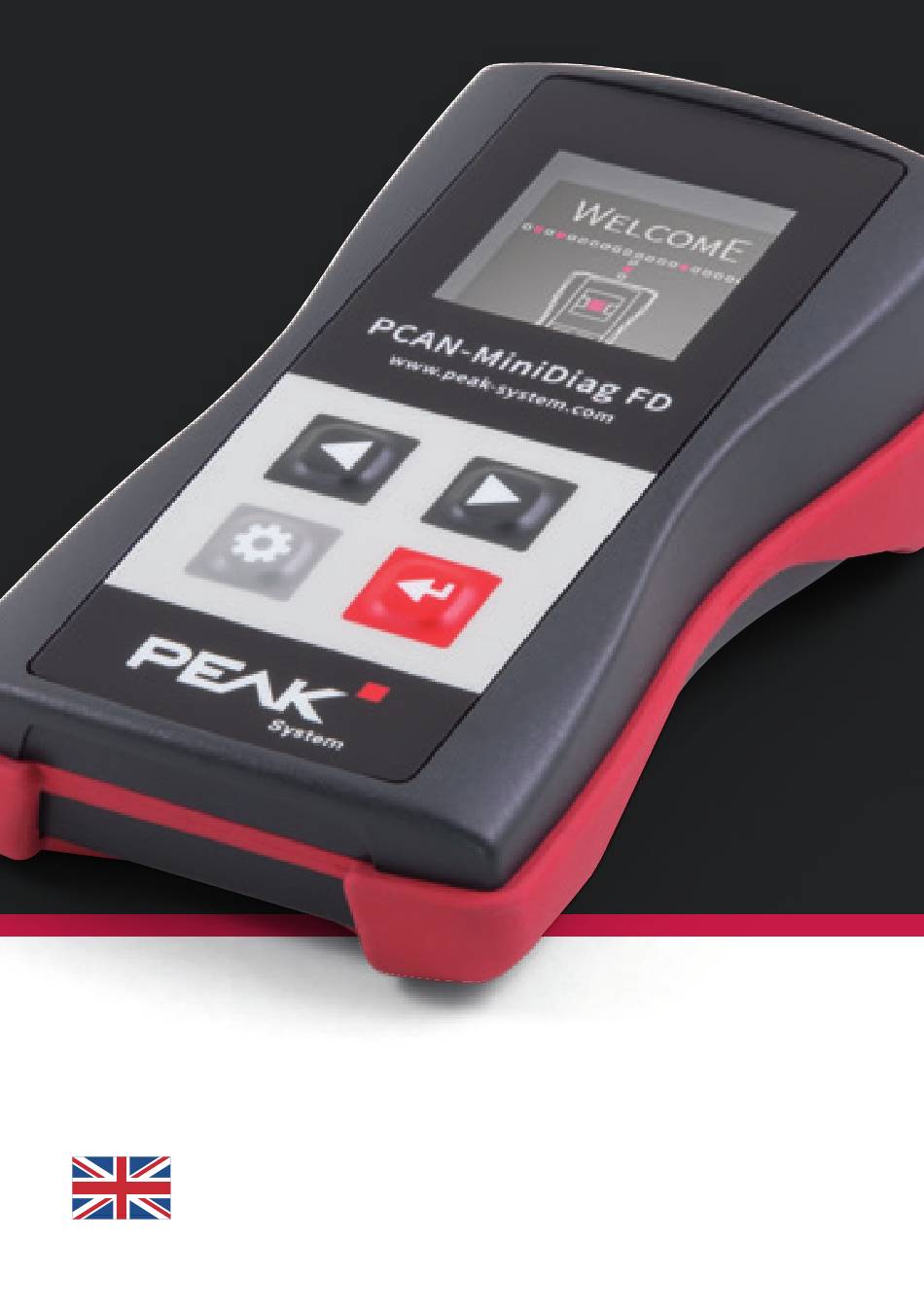

- Page 1 PCAN-MiniDiag FD Quick Start Guide...
- Page 2 Insert the three supplied AAA batteries into the battery case on the underside of the device. CAN Connection Connect the PCAN-MiniDiag FD to a CAN bus via the D-Sub connector on the rear of the device. The pin assignment corresponds to the specification CiA®...
- Page 3 Executing actions or confirming changed settings. Device Functions The PCAN-MiniDiag FD has eight functions for basic diagnosis and checking of CAN and CAN FD buses. System Info: Indication of firmware and hardware version, serial number, and...
- Page 4 D-Sub Voltages: Voltage check at the pins 6 and 9 in the range from -40 to 43 V CAN Min/Max: Measurement of minimum and maximum voltage values for CAN-High and CAN-Low in the range from -5 to 8 V CAN Voltages: Display of dominant and recessive levels for CAN-High and CAN-Low in the range from -5 to 8 V Termination: Measurement of termination...
- Page 5 Simplified EU Declaration of Conformity PEAK-System Technik GmbH declares: The product PCAN-MiniDiag FD (IPEH-003070) is in compliance with the EU directives 2014/30/EU (EMC) and 2011/65/EU (RoHS 2). The full text of the EU Declaration of Conformity can be found in the detailed documentation of the PCAN-MiniDiag FD.
- Page 6 PEAK-System Technik GmbH Otto-Roehm-Str. 69, 64293 Darmstadt Germany Phone: + 49 6151 8173-20 E-mail: info@peak-system.com www.peak-system.com © 2019-01 PEAK-System Technik GmbH...
