Williams Sound SoundPlus Infrared System WIR SYS 90V Specification Sheet page 2

SoundPlus ® Infrared System •
D
D

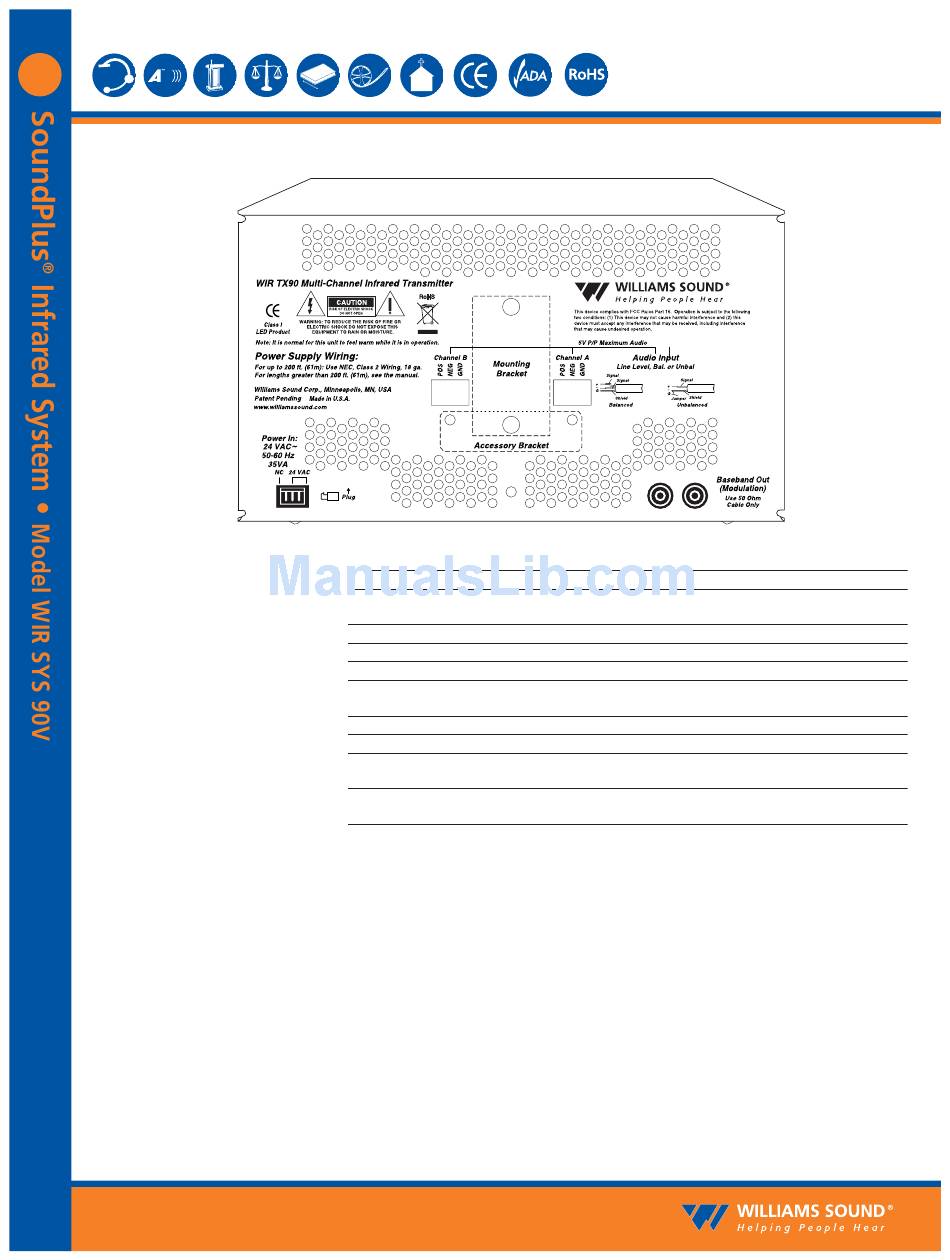

Fig 2: TX90 Rear View
Power Input:
Audio Input Connector:
Input Level:
Baseband Output:
Baseband Cable:
Operating Requirements:
Mounting Kits:
Warranty:
Approvals:
Compatible Receivers:
Notes:
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2008, Williams Sound Corp. MCAT 064A
Model WIR SYS 90V
3-Pin Molex, 24 VAC, 50-60 Hz, 35 VA
CHA and CHB, 3 wire Phoenix
Balanced or unbalanced, 316 mVRMS (-10dBV) nominal, 5.7k input impedance; max
input (over volume range) -21 to +7 dBV.
BNC, 50 Ω, for use with TX9 only
RG 58 Coax, BNC connectors, maximum 1000' (300m) length
0-50º C (+32°F to 122°F) ambient temperature, non-condensing, non-corrosive atmosphere
Wall or Ceiling Mount: BKT 024 Omnidirectional mount;
Optional: Tripod Stands: SS-11 or SS-6
5 years on transmitter, 90 days on accessories
CE, FCC, RoHS, WEEE
WIR RX22-4 Four-Channel Receiver, WIR RX14-2 Two-Channel Receiver,
WIR RX16 Two-Channel Receiver
Specifications: Single end input, volume & tone controls at mid point, 1 kHz,
"Music" Preset
